SONF1-HO High Output Alarm Horn Sounder 2-21-020

Product image
Product Image
Product Image
The SONF1-HO is a compact, high output, 105dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensures suitability for all general signalling applications including fire, security and process control.
Request a quote for this product
Voltage
Back box type
Enclosure Color
Part Number:
SONF1
Request Price or enquire about this product
Enquire about
High Output Alarm Horn Sounder

Upgrade Notification

Note: Product upgrade launching 1st June
View upgraded product details here

Notification Image

Description

Sonora range offers compact audio visual signaling for fire, industrial, process control and machine safety applications. The range features low current consumption combined with high performance. The SONF1-HO features a maximum output of 105dB(A) at 1 metre with a current consumption of just 80mA. CPR compliant, tested to EN54-3 ad VdS approved.

Downloads

Datasheet Datasheet.pdf
Installation Manual SONF1_HO_Inst__ISN0603-B_.pdf
VdS certificate VdS_G205054_SON_2019-06-10.pdf
EC Certificate of Conformity 0786-CPD-20191_SONF1__SONF1_HO.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Ingress Protection certificate 58D22760A_IP66_certificate_-_SONF1.pdf
Declaration of Conformity DC-024_Issue_D_Sonora.pdf
Declaration of Conformity DC-024_Issue_G_Sonora.pdf
Declaration of Performance DP_-_0786-CPD-20191-Issue_A_SONF1__SONF1-HO.pdf
2D drawing (PDF) SK0265_Issue_A.pdf
3D drawing (STEP) back box type S SK0265-S-3D_Issue_A.STEP
3D drawing (STEP) back box type A SK0265-A-3D_Issue_A.STEP
3D drawing (STEP) back box type M SK0265-M-3D_Issue_A.STEP
Hi-res product image 3 (TIFF) 2-21-020_SONF1-H-G.tif
Hi-res product image 2 (TIFF) 2-21-020_SONF1-H-W.tif
Hi-res product image 1 (TIFF) 2-21-020_SONF1-H-R.tif
Lo-res product image 1 (JPG) 2-21-020_SONF1-H-R.jpg
Lo-res product image 2 (JPG) 2-21-020_SONF1-H-W.jpg
Lo-res product image 3 (JPG) 2-21-020_SONF1-H-G.jpg

Features

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Mounting via internal BESA compatible fixing positions (standard version) or via external mounting lugs.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.

Specification

Maximum output: 105dB(A) @ 1 metre [96dB(A) @ 10ft/3m]
Nominal output: 103dB(A) @ 1m +/- 3dB – Tone 1 [94dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2
Effective range: 32m/105ft @ 1KHz
Voltages DC: 12V dc; 24V dc
[Reverse polarity diode protection]
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage tempe: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.30kg/0.66Ibs

Current Consumption

Version: Voltage: Current:
12V dc 10-18V dc 50mA
24V dc 18-30V dc 80mA

Part Codes

Version: Part code:
12V dc SONF1DC12[b][x]-H
24V dc SONF1DC24[b][x]-H

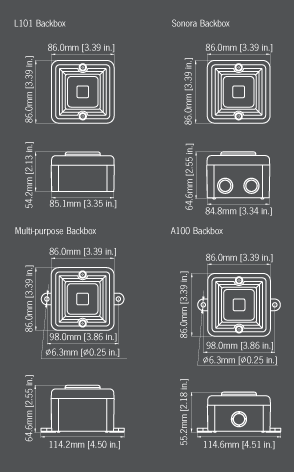

[b] = Back box type: No identifier: Sonora type – 3 x side & 1 x rear 20mm knockouts
A: A100 type with lugs – 2 x side & 1 x rear 20mm knockouts
M: Multi type with lugs – 1 x side 20mm entry with stopping plug
[x] = Enclosure colour: G: Grey (RAL7038)
R: Red (RAL3000)
W: White

Approvals

  • VdS approved to EN54-3 (CPD 89/106/EEC).
  • UKOOA/PFEER compliant alarm tones.
  • GOST-R approved. Cert: POCC GB.JB05.H00144.

Tone Table

Stage 1 WAV file Frequency Description Stage 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
