SONFL1H-HO High Output Alarm Sounder & LED Beacon

  • High output L.E.D array
  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Mounting via internal BESA compatible fixing positions or via external mounting lugs.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.

Approvals

  • SONF1-HO sounder: VdS approved to EN54-3 (CPD 89/106/EEC).
  • GOST-R approved. Cert: POCC GB-JB05-H00144.

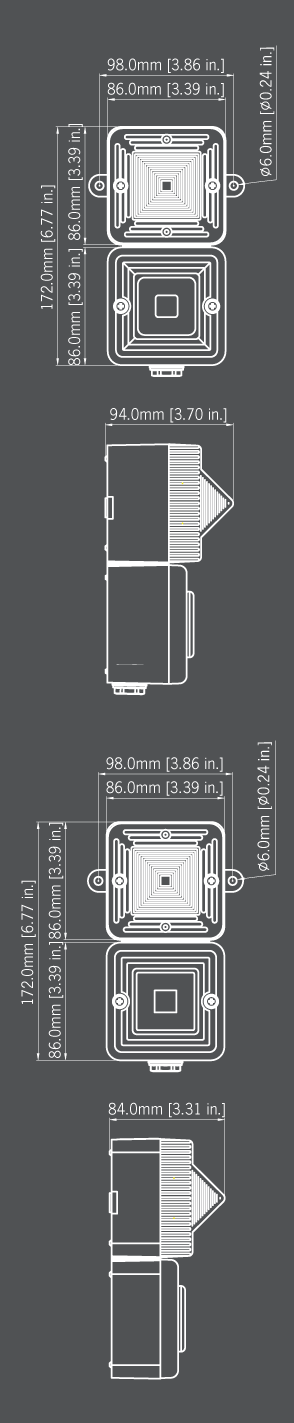

2-31-070sonfl1x-ho_cat
SONFL1H-HO High Output Alarm Sounder & LED Beacon
Eac-logo Vds-approval Ce-approval Gost-approval

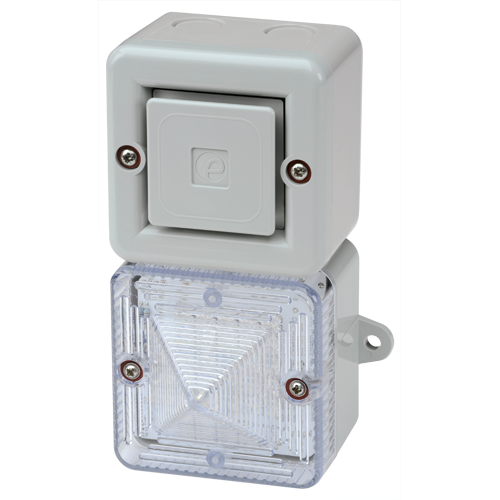

2-31-080

SONFL1H-HO High Output Alarm Sounder & LED Beacon

The SONFL1H-HO features the 105dB(A) SONF1-HO alarm sounder combined with the L101H high output L.E.D. beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.

The array of 24 Superflux type high output L.E.D's generates over 120 candela of light output and can be user set to either steady of flashing mode. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Specification

Sounder:
Maximum output: 105dB(A) @ 1 metre [96dB(A) @ 10ft/3m]
Nominal output: 103dB(A) @ 1m +/- 3dB - Tone 1 [94dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2
Effective range: 32m/105ft @ 1KHz
Beacon:
Light source: High intensity L.E.D. array.
24 x Superflux type high ouput L.E.D’s
Options: Steady or 2Hz flash mode (on board selection)
Peak/Effective Intensity cd: Green L.E.D: 176cd - measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm² cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light.
General:
Voltages DC: 12Vdc; 24V dc
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Lens material: PC
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°]
Weight: 0.50kg/1.1Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
12V dc SONFL1HDC012[x]/[y]-H
24V dc SONFL1HDC024[x]/[y]-H
x] = Enclosure colour: G: Grey, R: Red, W: White
[y] = Light colour: A: Amber, B: Blue, W: Clear (White) G: Green, R: Red

Alarm sounder

Version: Voltage: Current :
12V dc 10-18V dc 50mA
24V dc 18-30V dc 80mA
* current at nominal voltage on Tone 2

L.E.D. Beacon

Version: Voltage: Current:
24V dc 10-30V dc 155mA (@ 24V dc)

Tone Table

Stage 1 WAV file Frequency Description Stg 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous - PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
Where applicable following tones are available on AC voltage versions:
Stage 1 WAV file Frequency Description
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) - NF S 32-001
T 5 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous - PFEER Toxic Gas
T 6 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell
T 7 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 8 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping
T 9 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
T 10 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
