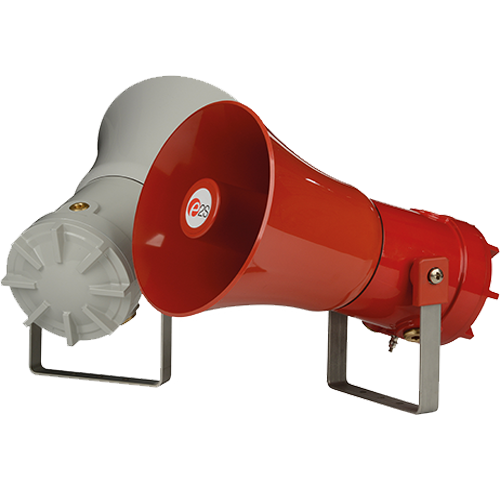

D1xS2F Alarm Horn Sounder
- High output, up to 125dB(A)
- Public mode fire alarm use
- 4 remotely selectable alarm stages/channels
- Positive or negative line stage/channel switching
- Choice of 64 alarm tone frequencies
- Automatic synchronisation on multi-sounder system
- Continuously rated
- Compact form factor
- Robust corrosion proof aluminium enclosure
- Stainless steel fixings
- Triple cable entries
- Duplicate cable terminations (in & out for daisy-chain installations)
- Available with custom tone configurations and frequencies
Approvals
- UL File ref: E230764
UL1203 Ed. 5
CAN/CSA C22.2 No. 25-1966
CSA C22.2 No. 30-M1986
CSA C22.2 No. 205-12
UL464 Ed. 9 - CSFM listing: 7136-2279:0506
Product Data
- Datasheet
- Class I Gas installation manual
- Class II Dust installation manual
- UL certifcate of compliance
- CSFM Listing
- Declaration of Conformity
- 2D drawing (PDF)
- 2D drawing (DWG)
- 3D drawing (IGS)
- 3D drawing (STEP)
- Hi-res product image 1 (TIFF)
- Lo-res product image 1 (JPG)
- Hi-res product image 2 (TIFF)
- Lo-res product image 2 (JPG)
- Hi-res product image 3 (TIFF)
- Lo-res product image 3 (JPG)
1-22-150
D1xS2F Alarm Horn Sounder
125dB(A) alarm horn. The D1xS2F is a high output alarm horn sounder with re-entrant flare horn. Low current consumption and high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensure the D1xS2F is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications. The 24V dc version is approved for public mode fire alarm use and the 110-240V ac version for general signaling use.
Featuring 64 alarm tone sounds, each of the available 4 stage/channels can be remotely triggered. Approved for gas groups ABCD in Class I Division 1, Class I Zone 1 IIC and for dust groups FG in Class II Division 1, Zone 20 IIIB environments. The threaded flameproof joint simplifies both installation and routine maintenance.
Specification
| Maximum output: | 125dB(A) @ 1 metre [116dB(A) @ 10ft/3m] |
| Nominal output: | 121dB(A) @ 1m +/- 3dB - Tone 35 [112dB(A) @ 10ft/3m] |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| No. of stages: | 4 |
| Volume control: | Adjustable -12dB(A) |
| Effective range: | 200m/656ft @ 1KHz |
| Voltages DC: | 24V dc (10-30V dc) |
| Voltages AC: | 110-240V ac 50/60Hz |
| Stage switching: | DC units: negative or positive AC units: common supply line |
| Ingress protection: | EN60529: IP66 UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure material: | Marine grade aluminium LM6- copper free Chromated & powder coated - corrosion proof |
| Colour: | Red (RAL3000), Grey (RAL7038) |
| Cable entries: | 1 x 1/2"NPT & 2 x M20 x 1.5mm 1 x 1/2"NPT & 2 x 1/2"NPT 1 x 1/2"NPT & 2 x 3/4"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Grounding stud: | M5 |
| Operating temp: | -40° to +70°C [-40° to +158°F] |
| Storage temp: | -50° to +70°C [-58° to +158°F] |
| Relative humidity: | 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight: | 4.3kg/9.5lbs |
Part Codes
| Version: | Part code: | ||
|---|---|---|---|
| Product type: | D1xS2 | ||
| Horn type: | F | Flare re-entrant horn | |
| Voltage: | DC024 AC230 |
10-30V dc 110-240V ac |
|
| Cable Entry Type:[e] | A B C |
1 x 1/2"NPT & 2 x M20 x 1.5mm 1 x 1/2"NPT & 2 x 1/2"NPT 1 x 1/2"NPT & 2 x 3/4"NPT |
|
| Adaptor/Stopping plug material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
|
| Bracket material: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag (304) |
|
| Product version: [v] | A1 D1 |
Gas environments Class I/Zone1 Dust environments Class II/Zone 20 |
|
| Enclosure colour: [x] | G R |
Grey RAL7038 Red RAL3000 |
|
| Example: | D1xS2FAC230 [e][m][s][v][x] D1xS2FAC230AB1A1R |
||
| Ratings: | |||
| A1: | Gas version | ||
| NEC / CEC: | Class I Div 1 ABCD T6 Ta -40°C to +70°C | ||
| Class I Div 2 ABCD T6 Ta -40°C to +70°C | |||
| Class I Zone 1 IIC T6 Ta -40°C to +70°C | |||
| 24V dc version is approved for public mode fire alarm use | |||
| D1: | Dust version | ||
| NEC / CEC: | Class II Div 1 FG T6 Ta -40°C to +70°C | ||
| Class II Div 2 FG T6 Ta -40°C to +70°C | |||
| Class III Div 1&2 | |||
| Zone 20 IIIB Ta -40°C to +70°C | |||
Alarm sounder
| Version: | Voltage: | Current: | |
|---|---|---|---|
| 10-30V dc | 24V dc | 923mA | |
| 110-240V ac | 50/60Hz | 115V ac | 267mA |
| 110-240V ac | 50/60Hz | 230V ac | 159mA |
Coding
- A1: Gas version
NEC / CEC:
Class I Div 1 ABCD T6 Ta -40°C to +70°C
Class I Div 2 ABCD T6 Ta -40°C to +70°C
Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
24V dc version is approved for public mode fire alarm use - D1: Dust version
NEC / CEC:
Class II Div 1 FG T6 Ta -40°C to +70°C
Class II Div 2 FG T6 Ta -40°C to +70°C
Class III Div 1 & 2
Zone 20, 21, 22 IIIB Ta -40°C to +70°C - Protection concept: Ex d / AEx d
Tone Table
| Stage 1 | WAV file | Frequency Description. | Stage 2 | Stage 3 | Stage 4 |
|---|---|---|---|---|---|
| T 1 | /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV | 1000 Continuous - PFEER Toxic Gas | Any | T 2 | T 44 |
| T 2 | /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV | 1200/500 @ 1Hz Sweeping - DIN / PFEER P.T.A.P. | Any | T 3 | T 44 |
| T 3 | /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV | 1000 @ 0.5Hz (1s on, 1s off) Intermittent - PFEER Gen. Alarm | Any | T 2 | T 44 |
| T 4 | /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV | 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s - NF C 48-265 | Any | T 24 | T 1 |
| T 5 | /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV | 544(100mS)/440 (400mS) - NF S 32-001 | Any | T 19 | T 1 |
| T 6 | /system/1/assets/files/000/000/947/947/8f040484a/original/TF053.wav | 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap - AS4428 | Any | T 44 | T 1 |
| T 7 | /system/1/assets/files/000/000/944/944/890010fd0/original/TF054.wav | 500-1500Hz Sweeping 2 sec on 1 sec off - AS4428 | Any | T 44 | T 1 |
| T 8 | /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV | 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) - NEN 2575 | Any | T 24 | T 35 |
| T 9 | /system/1/assets/files/000/000/953/953/5deedc543/original/TF055.wav | 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a | Any | T 34 | T 1 |
| T 10 | /system/1/assets/files/000/000/952/952/3a041fde3/original/TF056.wav | 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a | Any | T 34 | T 1 |
| T 11 | /system/1/assets/files/000/000/946/946/761de34c6/original/TF057.wav | 420(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal | Any | T 1 | T 8 |
| T 12 | /system/1/assets/files/000/000/945/945/689d9405a/original/TF058.wav | 1000(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal | Any | T 1 | T 8 |
| T 13 | /system/1/assets/files/000/000/950/950/2d337d14e/original/TF059.wav | 422/775 - (0.85 on, 0.5 off) x3 + 1s gap - NFPA Temporal | Any | T 1 | T 8 |
| T 14 | /system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV | 1000/2000 @ 1Hz - Singapore | Any | T 3 | T 35 |
| T 15 | /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV | 300 Continuous | Any | T 24 | T 35 |
| T 16 | /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV | 440 Continuous | Any | T 24 | T 35 |
| T 17 | /system/1/assets/files/000/000/948/948/c697b364a/original/TF060.wav | 470 Continuous | Any | T 24 | T 35 |
| T 18 | /system/1/assets/files/000/000/949/949/7e429e658/original/TF061.wav | 500 Continuous - IMO code 2 (Low) | Any | T 24 | T 35 |
| T 19 | /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV | 554 Continuous | Any | T 24 | T 35 |
| T 20 | /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV | 660 Continuous | Any | T 24 | T 35 |
| T 21 | /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV | 800 Continuous - IMO code 2 (High) | Any | T 24 | T 35 |
| T 22 | /system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV | 1200 Continuous | Any | T 24 | T 35 |
| T 23 | /system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV | 2000 Continuous | Any | T 3 | T 35 |
| T 24 | /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV | 2400 Continuous | Any | T 20 | T 35 |
| T 25 | /system/1/assets/files/000/000/951/951/d9ce2b2c6/original/TF062.wav | 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent | Any | T 44 | T 8 |
| T 26 | /system/1/assets/files/000/000/954/954/b703d99f1/original/TF063.wav | 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent | Any | T 44 | T 8 |
| T 27 | /system/1/assets/files/000/000/955/955/0f602886a/original/TF064.wav | 470 @ 5Hz (0.10s on, 0.10s off) Intermittent | Any | T 44 | T 8 |
| T 28 | /system/1/assets/files/000/000/956/956/dbb5f64db/original/TF065.wav | 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent | Any | T 24 | T 8 |
| T 29 | /system/1/assets/files/000/000/957/957/7bd3d8c1c/original/TF066.wav | 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent | Any | T 44 | T 8 |
| T 30 | /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV | 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent | Any | T 24 | T 8 |
| T 31 | /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV | 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent | Any | T 24 | T 8 |
| T 32 | /system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV | 745 @ 1Hz (0.50s on, 0.50s off) Intermittent | Any | T 24 | T 8 |
| T 33 | /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV | 800 (0.25s on, 1.00s off) Intermittent | Any | T 24 | T 8 |
| T 34 | /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV | 800 @ 2Hz (0.25s on, 0.25s off) - IMO code 3.a (High) | Any | T 24 | T 8 |
| T 35 | /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV | 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent | Any | T 24 | T 8 |
| T 36 | /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV | 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent | Any | T 24 | T 8 |
| T 37 | /system/1/assets/files/000/000/958/958/a90e62da4/original/TF067.wav | 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent | Any | T 24 | T 8 |
| T 38 | /system/1/assets/files/000/000/959/959/f34b52faa/original/TF068.wav | 363/518 @ 1Hz (0.50s / 0.50s) Alternating | Any | T 8 | T 19 |
| T 39 | /system/1/assets/files/000/000/960/960/368703340/original/TF069.wav | 450/500 @ 2Hz (0.25s / 0.25s) Alternating | Any | T 8 | T 19 |
| T 40 | /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV | 554/440 @ 1Hz (0.50s / 0.50s) Alternating | Any | T 24 | T 19 |
| T 41 | /system/1/assets/files/000/000/961/961/be2680966/original/TF070.wav | 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating | Any | T 8 | T 19 |
| T 42 | /system/1/assets/files/000/000/962/962/314fe8a1b/original/TF071.wav | 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating | Any | T 8 | T 19 |
| T 43 | /system/1/assets/files/000/000/963/963/5f6deb8a1/original/TF072.wav | 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating | Any | T 8 | T 19 |
| T 44 | /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV | 800/1000 @ 2Hz (0.25s / 0.25s) Alternating | Any | T 24 | T 19 |
| T 45 | /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV | 970/800 @ 2Hz (0.25s / 0.25s) Alternating | Any | T 8 | T 19 |
| T 46 | /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV | 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating | Any | T 24 | T 19 |
| T 47 | /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV | 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating | Any | T 24 | T 19 |
| T 48 | /system/1/assets/files/000/000/965/965/e3d76c24c/original/TF073.wav | 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping | Any | T 24 | T 12 |
| T 49 | /system/1/assets/files/000/000/964/964/4e1cd3f7f/original/TF074.wav | 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping | Any | T 24 | T 12 |
| T 50 | /system/1/assets/files/000/000/966/966/a8e5f4440/original/TF075.wav | 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping | Any | T 24 | T 12 |
| T 51 | /system/1/assets/files/000/000/969/969/5734194b1/original/TF076.wav | 600/1250 @ 0.125Hz (4s / 4s) Sweeping | Any | T 24 | T 12 |
| T 52 | /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV | 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping | Any | T 24 | T 12 |
| T 53 | /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV | 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping | Any | T 24 | T 12 |
| T 54 | /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV | 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping | Any | T 24 | T 12 |
| T 55 | /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV | 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping | Any | T 24 | T 12 |
| T 56 | /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV | 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping | Any | T 24 | T 12 |
| T 57 | /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV | 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping | Any | T 24 | T 12 |
| T 58 | /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV | 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping | Any | T 24 | T 12 |
| T 59 | /system/1/assets/files/000/000/967/967/2e92dbc46/original/TF077.wav | 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping | Any | T 24 | T 12 |
| T 60 | /system/1/assets/files/000/000/968/968/5dfcb9aea/original/TF078.wav | 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping | Any | T 24 | T 12 |
| T 61 | /system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV | 800Hz Motor Siren | Any | T 24 | T 12 |
| T 62 | /system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV | 1200Hz Motor Siren | Any | T 24 | T 12 |
| T 63 | /system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV | 2400Hz Motor Siren | Any | T 24 | T 12 |
| T 64 | /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV | Simulated Bell | Any | T 21 | T 12 |
| For Stage 2 any Stage 1 alarm tone sound can be selected. | |||||
| Country specific or custom tone configurations and alarm frequencies are available upon request. | |||||
