GNExCP6A-BG Break Glass Call Point 1-24-010

Product image
Product Image
Product Image
Manual Call Point. The GNExCP6A manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems.
Request a quote for this product
Switch
Stopping plug/adaptor material
Lift Flap
Duty/Tag label
Enclosure Color
Part Number:
GNExCP6A-BG
Request Price or enquire about this product
Enquire about
Break Glass Call Point

Description

Available with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.

Downloads

Datasheet Datasheet.pdf
Installation Manual D154-00-001-IS_Issue_2__GNExCP6A-BG_.pdf
IECEx certificate IECEx_SIR_09.0121X_Issue_4_BExCP3__GNExCP6.pdf
ATEX certificate Sira_09ATEX3286X_Issue_4_BExCP3__GNExCP6.pdf
INMETRO certificate E2S_CoC_IEx_10.0011X_R4_17062019.pdf
Russian Ex certificate EAC_EU_C-GB.AA71.B.00273_20.pdf
CCOE PESO CCOE_P471504_BExCP3_GNExCP6.pdf
Declaration of Conformity DC-043_Issue_F_GNExPC6.pdf
SIL2 Certificate T883-118_SIL2_MCP.pdf
2D drawing (PDF) SK0207_Issue_C.pdf
2D drawing (DWG) SK0207_Issue_C.DWG
Hi-res product image 1 (TIFF) 1-24-010_GNExCP6A-BG-G.tif
Hi-res product image 2 (TIFF) 1-24-010_GNExCP6A-BG-R.tif
Hi-res product image 3 (TIFF) 1-24-010_GNExCP6A-BG-YB.tif
Lo-res product image 1 (JPG) 1-24-010_GNExCP6A-BG-G.jpg
Lo-res product image 2 (JPG) 1-24-010_GNExCP6A-BG-R.jpg
Lo-res product image 3 (JPG) 1-24-010_GNExCP6A-BG-YB.jpg
Pipe Mount Drawing (PDF) D217-05-321_Issue_B_GNExCP6.pdf

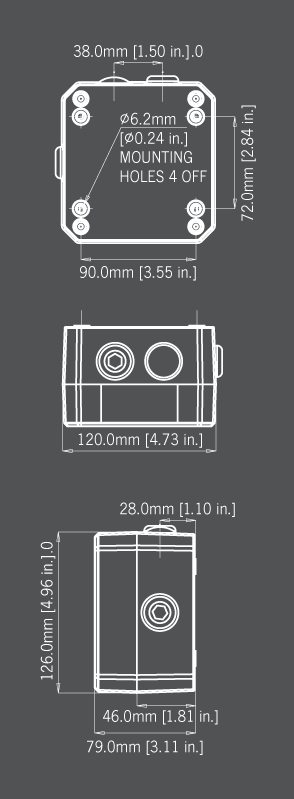

Specification

GNExCP6A: II 2G Ex d e IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
Ambient: Ta = -40°C to +55°C [-40°to +131°F]
Ingress protection: IP66
Housing material: GRP – glass reinforced polyester
(UV stable)
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals: 6 × 4.0mm² cables.
Test: Test key facility
Weight: 1.2Kg/2.64Ibs
Note: For applications requiring monitoring
resistors, diodes or inidcator LED’s please
see the GNExCP6B-BG version.
Data sheet reference: 1.3.07.

Part Codes

Version: Part code:
Product type: GNExCP6A-BG A type – no end of line devices
Switch Type: [s] S
D
SPCO
DPCO
Stopping
plug material: [m]
N
B
P
S
Nylon
Brass
Nickel Plated
Stainless Steel
Lift flap: [l] L
N
Lift flap
No lift flap
Duty label [d]: N
P
S
No duty label
Metalised Polyester
Stainless Steel
Enclosure colour: [x] RD
BL
GN
YW
RW
YB
BK
Red
Blue
Green
Yellow
Red/White
Yellow/Black
Black
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0002-A2
SP65-0002-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • ATEX certificate: Sira 09ATEX3286X
  • IECEx certificate: IECEx SIR 09.0121X
  • SIL 2 certified to IEC 61508 (2010)
  • Ex EAC certified: KZ.1510019.22.01.00271
  • PESO CCOE certified: P471504

Options

  • Alternative housing colours are available to meet specific requirements.
  • Single or double pole c/o switch.
  • Metalised polyester or stainless steel “Duty” label.

Versions

Version: Voltage: Switch rating: Terminals: Cable entries:
GNExCP6A 250V ac Max.
50V dc Max.
5.0A Max.
1.0A Max.
6 × 4mm² 2 x M20
Top/Bottom
1 x M20
Left/Right
Coding: II 2G Ex d e IIC T6 Gb Ta = -40°C to +55°C
II 2D Ex t IIIC T60°C Db IP66
