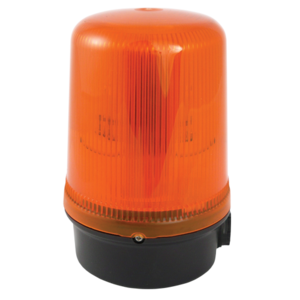

B300SLF Status Beacon [Filament Lamp] 2-15-010

Product image
Product Image
Product Image
The B300 series is comprised of a Xenon strobe beacon, permanent filament bulb or halogen beacon, blinking filament bulb or halogen beacon, rotating beacon and a multi-function LED array beacon.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B300SLF
Request Price or enquire about this product
Enquire about
Status Beacon [Filament Lamp]

Description

The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

Downloads

Datasheet Datasheet.pdf
Installation Manual B300SLF_D110-00-101-IS_Iss_B.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf
2D drawing (PDF) SK0011_Issue_B.pdf
2D drawing (PDF) SK0051_Issue_B_B300RAB001_Right_angle_bracket_for_wall_mounting.pdf
2D drawing (PDF) SK0144_Issue_B_B300TMA001_Pole_mounting_assembly_140mm.pdf
Hi-res product image 1 (TIFF) 2-15-010_B300SLF-A.tif
Hi-res product image 2 (TIFF) 2-15-010_B300SLF-B.tif
Hi-res product image 3 (TIFF) 2-15-010_B300SLF-C.tif
Lo-res product image 1 (JPG) 2-15-010_B300SLF-A.jpg
Lo-res product image 2 (JPG) 2-15-010_B300SLF-B.jpg
Lo-res product image 3 (JPG) 2-15-010_B300SLF-C.jpg
2D drawing (DWG) SK0011_Issue_B.dwg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: Filament lamp E14
Light output: 25W
Function: Permanent
Candela: 15 cd* (peak/effective intensity)
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Lens type: Prismatic (standard) or plain
Mounting: Surface mount (right angle or pole mount accessories available)
Entries: 1 × 5-7mm push through grommet
1 x M20 cable entry

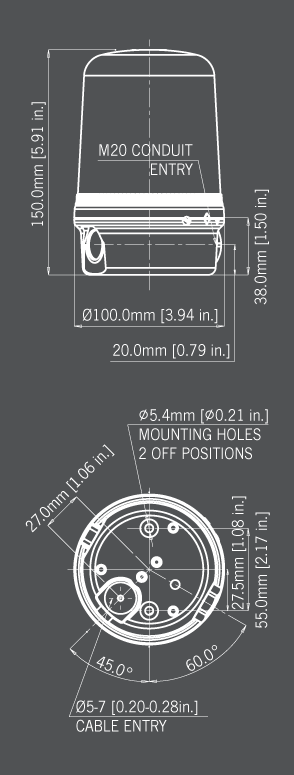

Dimensions: ø100 x 150mm
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Lens material: High impact UL94 V0 (f1) PC
Terminals: 1.5 mm² flying lead assembly
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 370g/0.81Ibs
*Candela measurements representative of performance with clear lens at optimum voltage

Part Codes

Version: Wattage Part code:
12-250V 25W B300SLF250B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow
NOTE: Filament lamp not included.

Accessories

Accessory Part Code: Description: Model
B300RAB001 Right angle bracket for wall mounting B300
B300TMA001 Pole mounting assembly (140mm) B300

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.

Filament bulb/lamp part codes

Voltage: Wattage: Type: Part code:
12V dc 25W E14 BB261225E
24V dc 25W E14 BB263025E
48V dc 25W E14 BB264825E
115V ac 25W E14 BB2613025E
230V ac 25W E14 BB2623525E
NOTE: Filament lamp ordered separately.
