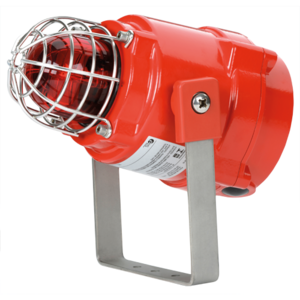

BExTBG05 Telephone Beacon 5 Joule 1-21-150

Product image
The flameproof xenon beacons are suitable for Zone 1, 2, 21 & 22 applications.
Request a quote for this product
There are no options for this product.
Part Number:
BExTBG05
Request Price or enquire about this product
Enquire about
Telephone Beacon 5 Joule

Description

The BExTBG05 5 Joule units are telephone initiated beacons. Their robust construction makes installation in the harshest of environments possible. Additional features include stainless steel lens guard and stainless steel mounting bracket as standard. The ring tone detect circuit senses the ringing voltage on the telephone line and switches the supply (115V ac or 230V ac) to enable the beacon until the telephone is answered.

The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Ex d & Ex tD Gas & Dust installation IS2462-P-E__BExTBG05D_Gas-Dust_.pdf
IECEx certificate IECEx_KEM_10.0002_Issue_1.pdf
ATEX certificate KEMA_00ATEX2006_Issue_3.pdf
INMETRO certificate 10-IEx-0010X_Rev_1_BExB.PDF
Russian Ex certificate EAC_EU_C-GB.AA71.B.00273_20.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Maritime register 19.00195.278.pdf
Hong Kong Fire Dept. cert. HK_FSD_BEx.pdf
Declaration of Conformity DC-004_Issue_F_BExBG.pdf
2D drawing (PDF) SK0118_Issue_C.pdf
2D drawing (DWG) SK0118_Issue_C.dwg
3D drawing (IGS) SK0118-3D_Issue_B.IGS
3D drawing (STEP) SK0118-3D_Issue_B.STEP
Hi-res product image 1 (TIFF) 1-21-150_BExTBG05D-R-R.tif
Lo-res product image 1 (JPG) 1-21-150_BExTBG05D-R-R.jpg

Features

  • Xenon tubes mechanically secured against
    shock & vibration
  • Glass lens & Stainless Steel guard
  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.

Specification

Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 34,812 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 105 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free
LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: RAL3000 Red
(others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Tube life : Emissions are reduced to 70% after 8 million flashes
Weight : 2.75kg/6.05Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Current:
115V ac 50Hz/60Hz +/-10% 140mA
230V ac 50Hz/60Hz +/-10% 55mA

Part Codes

Part Code: Classification:
BExTBG05D** ATEX / IECEx:
II 2G Ex d IIC T4 Ta. -50°C to +70°C
II 2G Ex d IIC T5 Ta. -50°C to +55°C
II 2G Ex d IIC T6 Ta. -50°C to +40°C
II 2D Ex tD A21 IP67 T115°C based on max. Ta. 70°C
GOST-R:
1ExdIICT4 Ta. -50° to +55°C
DIP A21 Ta T4
** = Voltage & lens colour reference:
Voltage options: 115AC, 230AC
Lens colour options: -AM (Amber) -BL (Blue) -CL (Clear)
-GN (Green) -RD (Red) -YW (Yellow)
e.g: BExTBG05D115AC-AM

Approvals

  • ATEX certificate: KEMA 00ATEX2006,

    EN 60079-0 : 2006, EN 60079-1 : 2007,

    EN 61241-0 : 2006, EN 61241-1 : 2004
  • IECEx certificate: IECEx KEM 10.0002,

    IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),

    IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
  • GOST-R certificate: POCC GB.JB05.B03365
  • Inmetro certificate: 10-IEx-0010

Assemblies

The products from the BEx range are available as multiple unit assemblies with and without junction boxes. See the BExP data sheet for further info.

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.51 0.12 1.00 0.49 0.15 0.86
