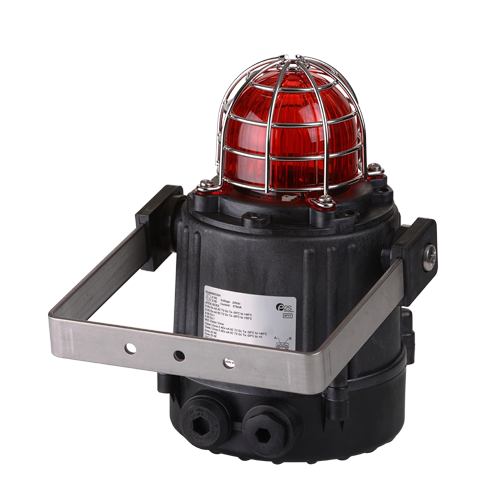

The E2xB05 is a 5 Joule Xenon strobe beacon with a 1Hz (60 fpm) flash rate.
The E2x range features enclosures manufactured from lightweight, high performance GRP which, with its corrosion proof properties, is suitable for the harshest of environments.
| Datasheet | Datasheet.pdf |
| Installation Manual | D209-01-201-IS_Issue_4__E2xB05_B10_.pdf |
| IECEx certificate | IECEx_ULD_14.0012X_Issue_2_E2x.pdf |
| ATEX certificate | DEMKO_06ATEX_0421554X_Rev_2_E2x.pdf |
| UL certificate of compliance | UL_CoC_-_20060224-E245313_Vol.1_Sec.2_E2xB.pdf |
| UKCA Certificate | UL21UKEX2135X_Rev._0_E2x.pdf |
| Russian Ex certificate | C_RU_C-GB.71..00273_20.pdf |
| Declaration of Conformity | DC-062_Issue_I_E2x.pdf |
| Declaration of Conformity UKCA | DC-103_Issue_A_E2x_UKCA.pdf |
| 2D drawing (PDF) | D209-05-201_Issue_2.pdf |
| 2D drawing (DWG) | D209-05-201_Issue_2.dwg |
| 3D drawing (STEP) | D209-05-201-3D_Issue_1.STEP |
| Wiring Schematic | D209-06-201_Issue_B.pdf |
| Nameplate Drawing | D209-09-201_Issue_2.pdf |
| Equipment Tag Drawing | D254-00-101_Issue_1.pdf |
| Duty Label Drawing | D254-00-001_Issue_1.pdf |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd – calculated from energy (J) |
| Effective Intensity cd: | 250 cd – calculated from energy (J) |
| Peak Candela: | 34,122 cd* – measured ref. to I.E.S. |
| Effective Intensity cd: | 108 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltages DC: | 12Vdc; 24Vdc; 48Vdc |
| Voltages AC: | 115Vac; 230Vac |
| Ingress protection: | IP rating per EN60079-0:IP64 IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/13 |
| Enclosure material: | UL94V0 GRP (PPS) & ABS |
| Lens material: | Borosilicate glass dome with PC prismatic lens cover. |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included EOL can be factory fitted |
| Operating temp: | -20 to +55°C [-4° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 1.48kg/3.25Ibs |
| * All candela data is representative of performance with clear lens at optimum voltage. | |
| Version: | Voltage: | Current: |
|---|---|---|
| 12V dc | 10-14V dc | 520mA |
| 24V dc | 20-28V dc | 275mA |
| 48V dc | 42-58V dc | 145mA |
| 115V ac 50/60Hz | +/-10% | 80mA |
| 230V ac 50/60Hz | +/-10% | 30mA |
| Part Code: | Ident.: | Description: |
|---|---|---|
| Product type: | E2xB05 | Xenon Strobe Beacon |
| Voltage: | AC115 AC230 DC012 DC024 DC048 |
115V ac 50/60Hz 230V ac 50/60Hz 12V dc (10-14V dc) 24V dc (20-28Vdc) 48V dc (42-54V dc) |
| Cable entries: [e] | A B C |
M20x1.5 & ½” NPT M20x1.5 & M20x1.5 ½” NPT & ½” NPT |
| Stopping plug material: [m] | N | Nylon |
| Bracket & Guard & tag: [s] | 1 2 3 4 |
304 A2 Stainless Steel 316 A4 Stainless Steel 304 A2 Stainless Steel & Equip. Tag 316 A4 Stainless Steel & Equip. Tag |
| Version: [v] | A1 | UL, cULs, IECEx & ATEX |
| Enclosure: [x] | B | Black |
| Lens colour: [y] | A, B, C G, M, R Y |
Amber, Blue, Clear Green, Magenta, Red Yellow |
| Accessories: | SP65-0001-A4 SP65-0003-A4 |
Pole Mount Bracket Kit St/St A4 (316) Sunshade – St/St A4 (316) |
