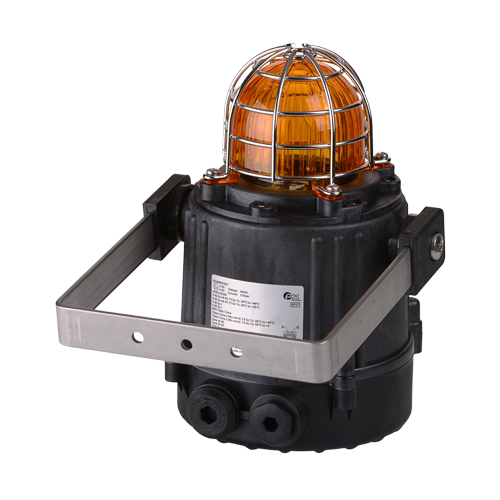

E2xB10 Xenon Strobe 10 Joule 1-31-020

Product image
Product Image
Product Image
The hazardous area E2xB10 Xenon strobe beacon is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
Request a quote for this product
Voltage
Cable Entry Type
Stopping plug/adaptor material
Bracket & Guard
Version
Enclosure Color
Lens Color
Part Number:
E2xB10
Request Price or enquire about this product
Enquire about
Xenon Strobe 10 Joule

Description

The E2xB10 is a 10 Joule Xenon strobe beacon with a 1Hz (60 fpm) flash rate.

The E2x range features enclosures manufactured from lightweight, high performance GRP which, with its corrosion proof properties, is suitable for the harshest of environments.

Downloads

Datasheet Datasheet.pdf
Installation Manual D209-01-201-IS_Issue_2__E2xB05_B10_.pdf
IECEx certificate IECEx_ULD_14.0012X_Issue_2_E2x.pdf
ATEX certificate DEMKO_06ATEX_0421554X_Rev_2_E2x.pdf
UL certificate of compliance UL_CoC_-_20060224-E245313_Vol.1_Sec.2_E2xB.pdf
UKCA Certificate UL21UKEX2135X_Rev._0_E2x.pdf
Russian Ex certificate C_RU_C-GB.71..00273_20.pdf
Declaration of Conformity DC-062_Issue_I_E2x.pdf
Declaration of Conformity UKCA DC-103_Issue_A_E2x_UKCA.pdf
2D drawing (PDF) D209-05-201_Issue_2.pdf
2D drawing (DWG) D209-05-201_Issue_2.dwg
3D drawing (STEP) D209-05-201-3D_Issue_1.STEP
Wiring Schematic D209-06-201_Issue_B.pdf
Nameplate Drawing D209-09-201_Issue_1.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf

Features

  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Stainless Steel dome guard as standard
  • Xenon tube mechanically secured against vibration & shock.
  • User replaceable Xenon tube assembly.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.

Specification

Energy: 10 Joules (10Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 1,000,000 cd – calculated from energy (J)
Effective Intensity cd: 500 cd – calculated from energy (J)
Peak Candela: 61,164 cd* – measured ref. to I.E.S.
Effective Intensity cd: 272 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green,
Magenta, Red & Yellow
Voltages DC: 24Vdc; 48Vdc
Voltages AC: 115Vac; 230Vac
Ingress protection: IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material: UL94V0 GRP (PPS)
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
Operating temp: -20 to +55°C [-4° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.48kg/3.25Ibs
* All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Current:
24V dc 20-28V dc 560mA
48V dc 42-58V dc 260mA
115V ac 50/60Hz +/-10% 185mA
230V ac 50/60Hz +/-10% 107mA

Part Codes

Part Code: Ident.: Description:
Product type: E2xB10 Xenon Strobe Beacon
Voltage: AC115
AC230
DC012
DC024
DC048
115V ac 50/60Hz
230V ac 50/60Hz
12V dc (10-14V dc)
24V dc (20-28Vdc)
48V dc (42-54V dc)
Cable entries: [e] A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: [m] N Nylon
Bracket & Guard & tag: [s] 1
2
3
4
304 A2 Stainless Steel
316 A4 Stainless Steel
304 A2 Stainless Steel & Equip. Tag
316 A4 Stainless Steel & Equip. Tag
Version: [v] A1 UL, cULs, IECEx & ATEX
Enclosure: [x] B Black
Lens colour: [y] A, B, C
G, M, R
Y
Amber, Blue, Clear
Green, Magenta, Red
Yellow
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • ATEX certificate: DEMKO 06 ATEX 0421554X
  • IECEx certificate: IECEx ULD 14.0012X
  • UL/cUL File ref: E245313
  • UKCA certificate: UL21UKEX2135X
  • Ex EAC certified: EAC RU C-GB.AA71.B.00273/20

Coding

  • ATEX / IECEx certification
    II 3G Ex ec IIC T2 Gc Ta -20°C to +55°C
    II 3D Ex tc IIIC T105°C Dc Ta -20°C to +40°C
    II 3D Ex tc IIIC T120°C Dc Ta -20°C to +55°C
  • NEC Class / Zone ratings US
    Class I Zone 2 AEx ec IIC T2 Gc Ta -20°C to +55°C
    Zone 22 AEx tc IIIC T105°C Dc Ta -20°C to +40°C
    Zone 22 AEx tc IIIC T120°C Dc Ta -20°C to +55°C
  • CEC Class / Zone ratings Canada
    Class I Zone 2 Ex ec IIC T2 Gc X Ta -20°C to +55°C
    Zone 22 Ex tc IIIC T105°C Dc Ta -20°C to +40°C
    Zone 22 Ex tc IIIC T120°C Dc Ta -20°C to +55°C
  • NEC & CEC Class / Division Ratings for US / Canada
    Class I Div 2 Group ABCD T2A Ta -20°C to +55°C
    Class II Div 2 Group FG T4A Ta -20°C to +55°C
    Class II Div 2 Group FG T5 Ta -20°C to +40°C
    Class III Div 1 & 2 Ta -20°C to +55°C
