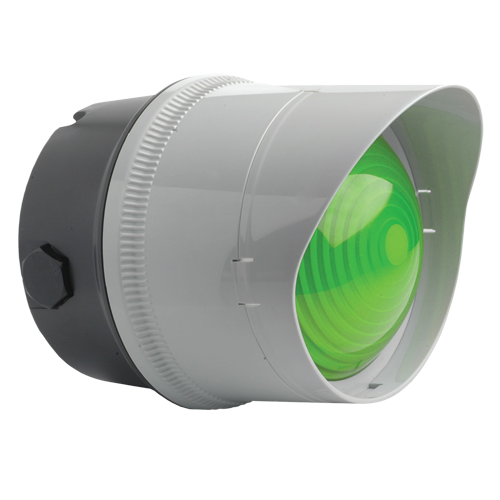

| Light source: | High output L.E.D. |
| Light output: | 24 x L.E.D. array |
| Function: | Permanent |
| L.E.D. colours: | Amber, Blue, Green, Red & White |
| Peak/Effective Intensity cd: | 89 cd* – measured ref. to I.E.S. |
| Lens type: | Prismatic |
| Mounting: | Surface mount (Wall mount bracket available) |
| Entries: | 1 × 5-7mm push through grommet 2 x M20 cable entry |
| Dimensions: | ø140 x 177mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Terminals: | 0.5 to 4.0mm² |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to 158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| *Candela measurements representative of performance with clear lens at optimum voltage. | |
| Version: | Current mA: |
|---|---|
| 10-30V dc | 175mA |
| 90-230V ac 50/60Hz | 15-40mA |
| Version: | Part code: |
|---|---|
| 10-30V dc | B450TLA030B/[x] |
| 90-230V ac 50/60Hz | B450TLA230B/[x] |
| [x] = Lens colour: | A: Amber B: Blue G: Green R: Red W: White |
| Note: B450TLA units are supplied with ‘clear’ lenses to maximise the light output in environments with high ambient light levels. | |
| Mounting brackets: | Description: |
|---|---|
| MB-B450T-S | Mounting bracket kit for a single B450 type unit. |
| MB-B450T-M | Mounting bracket kit for linked multiple B450 type units. |
