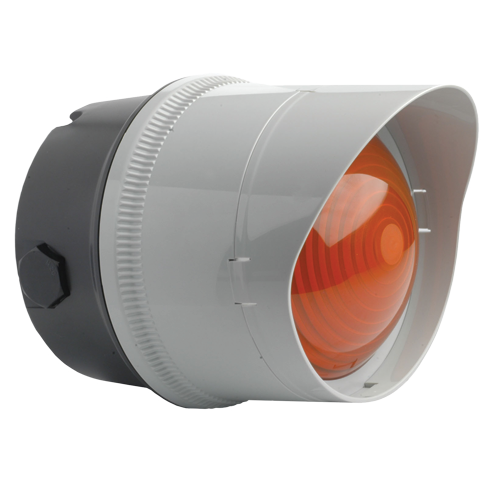

B450TSB Filament Lamp Traffic Light 2-11-030

Product image
Product Image
Product Image
The B450 series of traffic light beacons are available in single E27 filament lamp, dual E14 filament lamp or high output L.E.D array versions.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B450TSB
Request Price or enquire about this product
Enquire about
Filament Lamp Traffic Light

Description

The Spectra family of visual and audible signals are optimised solutions for all general applications: traffic management, access control, status indication and process monitoring safety warning. Environments include manufacturing, warehousing, aviation hangars, perimeters and tunnels.
NOTE: This product is now end of life and will be discontinued at the end of 2020.

Downloads

Datasheet Datasheet.pdf
Installation Manual B450TSB_D126-00-101-IS_Iss_B.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf
2D drawing (PDF) SK0016_Issue_B.pdf
2D drawing (DWG) SK0016_Issue_B.dwg
Assembly drawing SK0053_Issue_A.pdf
Bracket Accessory SK0039_Issue_A_B450-Bracket.pdf
3D drawing (STEP) SK0016_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-11-030_B450TSB-G.tif
Hi-res product image 2 (TIFF) 2-11-030_B450TSB-A.tif
Hi-res product image 3 (TIFF) 2-11-030_B450TSB_ASSY.tif
Lo-res product image 1 (JPG) 2-11-030_B450TSB-G.jpg
Lo-res product image 2 (JPG) 2-11-030_B450TSB-A.jpg
Lo-res product image 3 (JPG) 2-11-030_B450TSB_ASSY.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: Filament Lamp E27
Light output: 25W
Function: Permanent
L.E.D. colours: Amber, Blue, Clear, Green,
Red & Yellow
Effective Intensity cd: 32 cd* (peak/effective intensity)
Lens type: Prismatic
Mounting: Surface mount
(Wall mount bracket available)
Entries: 1 × 5-7mm push through
grommet
2 x M20 cable entry
Dimensions: ø140 x 177mm
ngress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Terminals: 0.5 to 2.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
12-250V B450TSB250B/[x]
[x] = Lens colour: A: Amber
B: Blue
C: Clear
G: Green
R: Red
Y: Yellow
Note: Filament lamps not included.
Must be ordered separately

Accessories

Mounting brackets: Description:
MB-B450T-S Mounting bracket kit for a single B450 type unit.
MB-B450T-M Mounting bracket kit for linked multiple B450 type units.

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.

Filament bulb/lamp part codes

Version: Wattage: Type: Part code:
24V dc 25W E27 BGS2525C27
115V ac 25W E27 BGS11025C27
230V ac 25W E27 BGS24025C27
Note: Filament lamps ordered separately.
