| Datasheet | Datasheet.pdf |
| Installation Manual | D114-00-001-IS_Issue_1__B300LDA_.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-026_Issue_G_Spectra.pdf |
| 2D drawing (PDF) | SK0011_Issue_B.pdf |
| 2D drawing (DWG) | SK0011_Issue_B.dwg |
| 3D drawing (STEP) | SK0011-3D_Issue_A.STEP |
| 2D drawing (PDF) | SK0051_Issue_B_B300RAB001_Right_angle_bracket_for_wall_mounting.pdf |
| 2D drawing (PDF) | SK0144_Issue_B_B300TMA001_Pole_mounting_assembly_140mm.pdf |
| Hi-res product image 1 (TIFF) | 2-14-020_B300LDA-R.tif |
| Hi-res product image 2 (TIFF) | 2-14-020_B300LDA-A.tif |
| Hi-res product image 3 (TIFF) | 2-14-020_B300LDA-G.tif |
| Lo-res product image 1 (JPG) | 2-14-020_B300LDA-R.jpg |
| Lo-res product image 2 (JPG) | 2-14-020_B300LDA-A.jpg |
| Lo-res product image 3 (JPG) | 2-14-020_B300LDA-G.jpg |
| Light source: | Array of 16 High output L.E.D.’s |
| Functions: | 4 rotating configurations. 4 flashing configurations. Steady mode for status applications. |
| Peak/Effective Intensity cd: | 19 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear (White L.E.D.), Green, Red & Yellow |
| Lens type: | Prismatic (standard) or plain |
| Mounting: | Surface mount (right angle or pole mount accessories available) |
| Entries: | 1 × 5-7mm push through grommet 1 x M20 cable entry |

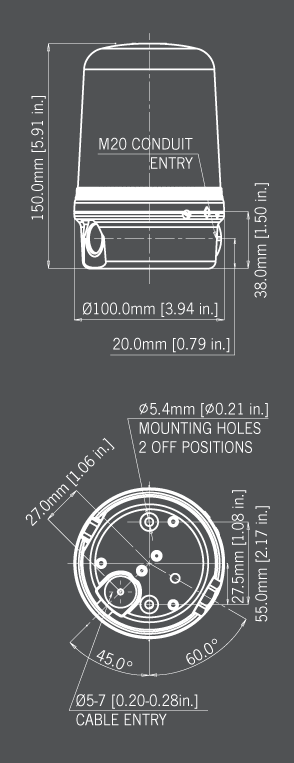

| Dimensions: | ø100 x 150mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Lens material: | High impact UL94 V0 (f1) PC |
| Terminals: | 1.5 mm² flying lead assembly |
| Operating temp: | -25 to +50°C [-13 to +122°F] |
| Storage temp: | -40 to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 370g/0.81Ibs |
| *Candela measurements representative of performance with clear lens at optimum voltage | |
| Version: | Current mA: |
|---|---|
| 10-50V dc | 130mA @ 24V dc |
| 90-230V ac 50/60Hz | 90mA @ 115V ac 50mA @ 230V ac |
| Version: | Voltage: | Part code: |
|---|---|---|
| 050 | 10-50V dc | B300LDA050B/[y] |
| 230 | 90-230V ac | B300LDA230B/[y] |
| [y] = Lens colour: | A B C G R Y |
Amber Blue Clear Green Red Yellow |
| Accessory Part Code: | Description: | Model |
|---|---|---|
| B300RAB001 | Right angle bracket for wall mounting | B300 |
| B300TMA001 | Pole mounting assembly (140mm) | B300 |
| Mode: | Stage 1 | Stage2 [DC only] |
|---|---|---|
| 1 | All L.E.D’s on | Alternate Side Flash 2Hz |
| 2 | Rotating: Slow1 | Alternate Side Flash 2Hz |
| 3 | Single Strike Flash 2Hz | Rotating: Fast 2 |
| 4 | Rotating: Fast 1 | Single Strike Flash 2Hz |
| 5 | Rotating: Slow 2 | Double Strike Flash 1Hz |
| 6 | Double Strike Flash 2Hz | Rotating: Fast 2 |
| 7 | Rotating: Fast 2 | Double Strike Flash 2Hz |
| 8 | Double Strike Flash 1Hz | Alternate Side Flash 2Hz |
| 9 | Alternate Side Flash 2Hz | Rotating: Fast 2 |
