| Datasheet | Datasheet.pdf |
| Installation Manual | D144-00-001-IS_Issue_1__B100LDA_.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-026_Issue_G_Spectra.pdf |

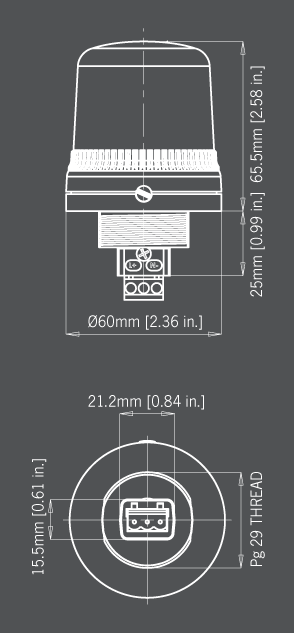

| 2D drawing (PDF) | SK0009_Issue_B.pdf |
| 2D drawing (DWG) | SK0009_Issue_B.dwg |

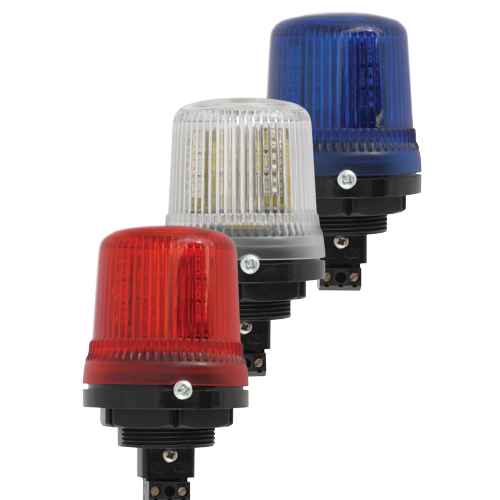

| Hi-res product image 1 (TIFF) | 2-14-040_B100LDA-R-C-B.tif |
| Lo-res product image 1 (JPG) | 2-14-040_B100LDA-R-C-B.jpg |
| Light source: | 9 x High power L.E.D’s |
| Lens/L.E.D. colours: | Amber, Blue, Clear (White L.E.D), Green, Red & Yellow |
| Lens type: | Prismatic (standard) or plain |
| Mounting: | Panel mount PG29 |
| Peak/Effective Intensity cd: | 5.5 cd* – measured ref. to I.E.S. |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Terminals: | 0.5 to 1.5mm² pluggable |
| Operating temp: | -25 to +50°C [-13 to +122°F] |
| Storage temp: | -40 to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 93g/2.04Ibs |
| *Candela measurements representative of performance with clear lens at optimum voltage | |
| Version: | Current mA: |
|---|---|
| 10-30V dc | 80mA |
| 90-230V ac 50/60Hz | 32mA |
| Version: | Voltage: | Part code: |
|---|---|---|
| 030 | 10-30V dc | B100LDA030B/[y] |
| 230 | 90-230V ac | B100LDA230B/[y] |
| [y] = Lens colour: | A B C G R Y |
Amber Blue Clear Green Red Yellow |
