The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.
NOTE: This product is now end of life and will be discontinued at the end of 2020.
| Datasheet | Datasheet.pdf |
| Installation Manual | B300SLH_D110-00-001-IS_Iss_B.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-026_Issue_D_Spectra.pdf |
| 2D drawing (PDF) | SK0011_Issue_B.pdf |
| 2D drawing (PDF) | SK0051_Issue_B_B300RAB001_Right_angle_bracket_for_wall_mounting.pdf |
| 2D drawing (PDF) | SK0144_Issue_B_B300TMA001_Pole_mounting_assembly_140mm.pdf |
| Hi-res product image 1 (TIFF) | 2-15-020_B300SLH-G.tif |
| Hi-res product image 2 (TIFF) | 2-15-020_B300SLH-R.tif |
| Hi-res product image 3 (TIFF) | 2-15-020_B300SLH-Y.tif |
| Lo-res product image 1 (JPG) | 2-15-020_B300SLH-G.jpg |
| Lo-res product image 2 (JPG) | 2-15-020_B300SLH-R.jpg |
| Lo-res product image 3 (JPG) | 2-15-020_B300SLH-Y.jpg |
| 2D drawing (DWG) | SK0011_Issue_B.dwg |
| Light source: | Halogen Lamp G6,35/GY6,35 |
| Light output: | 20/25W |
| Function: | Permanent |
| Candela: | 21 cd* (peak/effective intensity) |
| Lens colours: | Amber, Blue, Clear, Green, Red & Yellow |
| Lens type: | Prismatic (standard) or plain |
| Mounting: | Surface mount (right angle or pole mount accessories available) |
| Entries: | 1 × 5-7mm push through grommet 1 x M20 cable entry |

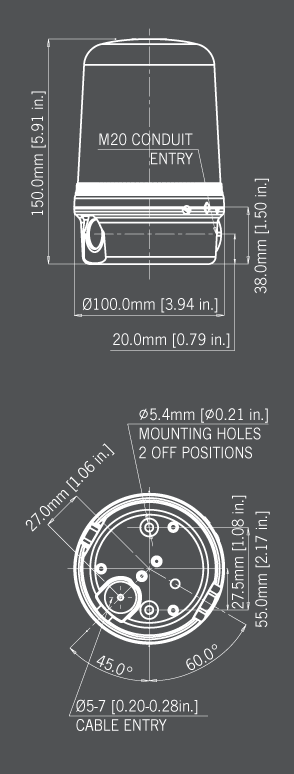

| Dimensions: | ø100 x 150mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Lens material: | High impact UL94 V0 (f1) PC |
| Terminals: | 1.5 mm² flying lead assembly |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 370g/0.81Ibs |
| *Candela measurements representative of performance with clear lens at optimum voltage | |
| Version: | Current mA: |
|---|---|
| 12V dc | 1.75A |
| 24V dc | 1.1A |
| 48V dc | 0.8A |
| 115V ac 50/60Hz | 255mA |
| 230V ac 50/60Hz | 130mA |
| Version: | Wattage | Part code: |
|---|---|---|
| 12-250V | 20/25W | B300SLH250B/[x] |
| [x] = Lens colour: | A B C G R Y |
Amber Blue Clear Green Red Yellow |
| NOTE: Halogen lamps not included. | ||
| Accessory Part Code: | Description: | Model |
|---|---|---|
| B300RAB001 | Right angle bracket for wall mounting | B300 |
| B300TMA001 | Pole mounting assembly (140mm) | B300 |
| Voltage: | Wattage: | Type: | Part code: |
|---|---|---|---|
| 12V dc | 20W | G6,35/GY6,35 | BJC20W12VCL |
| 24V dc | 20W | G6,35/GY6,35 | BJC20W24VCL |
| 115V ac | 25W | G6,35/GY6,35 | BJCD25W120VCL |
| 230V ac | 25W | G6,35/GY6,35 | BJCD25W230VCL |
| NOTE: Halogen lamps ordered separately. | |||
