B200SLF Status Beacon [Filament Lamp] 2-15-110

Product image
Product Image
Product Image
The B200 series is comprised of a Xenon strobe beacon, permanent filament bulb, blinking filament bulb and a permanent LED array beacon version.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B200SLF
Request Price or enquire about this product
Enquire about
Status Beacon [Filament Lamp]

Description

The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.
NOTE: This product is now end of life and will be discontinued at the end of 2020.

Downloads

Datasheet Datasheet.pdf
Installation Manual B200SLF_D100-00-001-IS_Iss_B.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026_Issue_D_Spectra.pdf

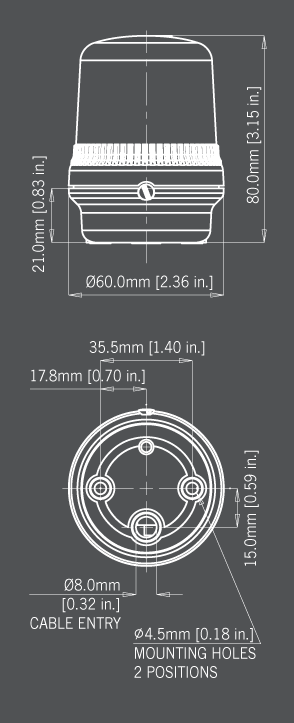

2D drawing (PDF) SK0010_Issue_B.pdf
2D drawing (DWG) SK0010_Issue_B.dwg
2D drawing (PDF) SK0052_Issue_B_B200RAB001_Right_angle_bracket_for_wall_mounting.pdf
2D drawing (PDF) SK0268_Issue_B_B200TMA001_Pole_mounting_assembly_140mm.pdf
Hi-res product image 1 (TIFF) 2-15-110_B200SLF-R.tif
Hi-res product image 2 (TIFF) 2-15-110_B200SLF-G.tif
Hi-res product image 3 (TIFF) 2-15-110_B200SLF-Y.tif
Lo-res product image 1 (JPG) 2-15-110_B200SLF-R.jpg
Lo-res product image 2 (JPG) 2-15-110_B200SLF-G.jpg
Lo-res product image 3 (JPG) 2-15-110_B200SLF-Y.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.

Specification

Light source: Filament lamp BA9s
Light output: 5W
Function: Permanent
Candela: 5 cd* (peak/effective intensity)
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Lens type: Prismatic (standard) or plain
Mounting: Surface mount (right angle or pole mount accessories available)
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Lens material: High impact UL94 V0 (f1) PC
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 78g/1.71Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Wattage: Part code:
12-250V 5W B200SLF250B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow
NOTE: Filament lamps not included.

Accessories

Accessory Part Code: Description: Model
B200RAB001 Right angle bracket for wall mounting B200
B200TMA001 Pole mounting assembly (140mm) B200

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.

Bulb/lamp part codes

Voltage: Wattage: Type: Part code:
12V dc 5W BA9s BR10125B
24V dc 5W BA9s BR10245B
48V dc 5W BA9s BR10485B
115V ac 5W BA9s BR101305B
230V ac 5W BA9s BR102305B
