The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.
NOTE: This product is now end of life and will be discontinued at the end of 2020.
| Datasheet | Datasheet.pdf |
| B200FLF_D101-00-001-IS_Iss_B.pdf | |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-026_Issue_D_Spectra.pdf |
| 2D drawing (PDF) | SK0010_Issue_B.pdf |
| 2D drawing (DWG) | SK0010_Issue_B.dwg |
| 2D drawing (PDF) | SK0052_Issue_B_B200RAB001_Right_angle_bracket_for_wall_mounting.pdf |
| 2D drawing (PDF) | SK0268_Issue_B_B200TMA001_Pole_mounting_assembly_140mm.pdf |
| Hi-res product image 1 (TIFF) | 2-15-120_B200FLF-Y.tif |
| Hi-res product image 2 (TIFF) | 2-15-120_B200FLF-R.tif |
| Hi-res product image 3 (TIFF) | 2-15-120_B200FLF-B.tif |

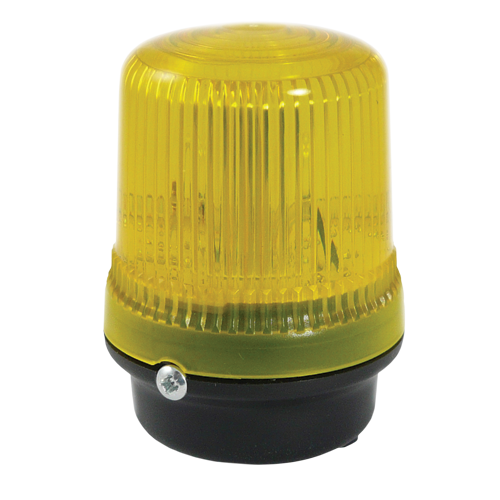

| Lo-res product image 1 (JPG) | 2-15-120_B200FLF-Y.jpg |
| Lo-res product image 2 (JPG) | 2-15-120_B200FLF-R.jpg |
| Lo-res product image 3 (JPG) | 2-15-120_B200FLF-B.jpg |
| Light source: | Filament lamp BA9s | |
| Light output: | 5W | |
| Flash frequency: | 1Hz | |
| Candela: | 2 cd* (peak/effective intensity) | |
| Lens colours: | Amber, Blue, Clear, Green, Red & Yellow | |
| Lens type: | Prismatic (standard) or plain | |
| Mounting: | Surface mount (right angle or pole mount accessories available) | |
| Ingress protection: | IP65 | |
| Housing material: | High impact UL94 V0 (f1) PC | |
| lens material: | High impact UL94 V0 (f1) PC | |
| Terminals: | 0.5 to 1.5mm² | |
| Operating temp: | -25 to +50°C [-13° to +122°F] |Storage temp: |
-40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] | |
| Weight: | 78g/1.71Ibs | |
| *Candela measurements representative of performance with clear lens at optimum voltage. | ||
| Version: | Current mA: |
|---|---|
| 12V dc | 500mA |
| 24V dc | 250mA |
| 48V dc | 120mA |
| 115V ac 50/60Hz | 35mA |
| 230V ac 50/60Hz | 25mA |
| Version: | Wattage: | Part code: |
|---|---|---|
| 12V dc | 5W | B200FLF012B/[x] |
| 24V dc | 5W | B200FLF024B/[x] |
| 48V dc | 5W | B200FLF048B/[x] |
| 115V ac | 5W | B200FLF115B/[x] |
| 230V ac | 5W | B200FLF230B/[x] |
| [x] = Lens colour: | A B C G R Y |
Amber Blue Clear Green Red Yellow |
| Accessory Part Code: | Description: | Model |
|---|---|---|
| B200RAB001 | Right angle bracket for wall mounting | B200 |
| B200TMA001 | Pole mounting assembly (140mm) | B200 |
| Voltage: | Wattage: | Type: | Part code: |
|---|---|---|---|
| 12V dc | 5W | BA9s | BR10125B |
| 24V dc | 5W | BA9s | BR10245B |
| 48V dc | 5W | BA9s | BR10485B |
| 115V ac | 5W | BA9s | BR101305B |
| 230V ac | 5W | BA9s | BR102305B |
