SONF1 Alarm Sounder

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Mounting via internal BESA compatible fixing positions (standard version) or via external mounting lugs.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.

Approvals

  • VdS approved: EN54-3 (CPD 89/106/EEC).

  • UL & cULs approved: General signalling use.

  • GOST-R approved. Cert: POCC GB.JB05.H00144.

  • Marine Equipment Directive (MED) Certificate: MEDB00001EH

2-21-010sonf1_cat
SONF1 Alarm Sounder
Eac-logo Culs-approval Vds-approval Ce-approval Gost-approval Med-approval
2-21-010

SONF1 Alarm Sounder

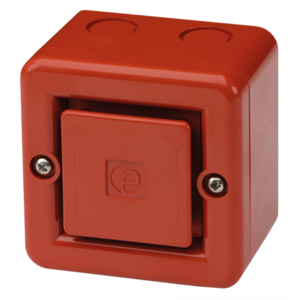

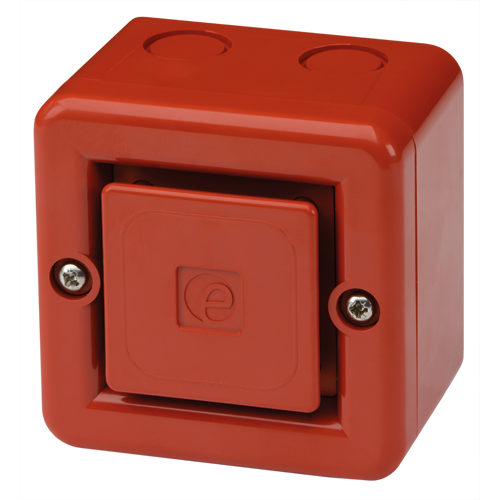

The SONF1 is a compact, high output, 100dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensure the SONF1 is suitable for all general signalling applications including fire, security and process control.

Specification

Maximum output: 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
Nominal output: 99dB(A) @ 1m +/- 3dB - Tone 1 [90dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2 (AC voltage variants 1 stage)
Volume control: On board potentiometer
Effective range: 30m/98.4ft @ 1KHz
Voltages DC: 24V dc (10-30V dc) Reverse polarity diode protection on DC units.
Voltages AC: 24V ac; 115V ac; 230V ac
Ingress protection: IP66 (UL version Type 13 & 3R )
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.30kg/0.66Ibs

Part Codes

Version: Part code:
24V dc SONF1DC24[b][x]
24V ac SONF1AC24[b][x]
115V ac SONF1AC115[b][x]
230V ac SONF1AC230[b][x]

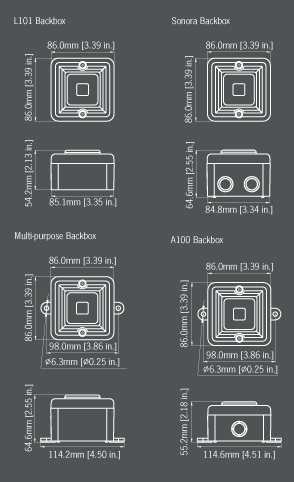

[b] = Back box type: No identifier: Sonora type - 3 x side & 1 x rear 20mm knockouts
B: L101 type - 1 x rear 20mm knockout
A: A100 type with lugs - 2 x side & 1 x rear 20mm knockouts

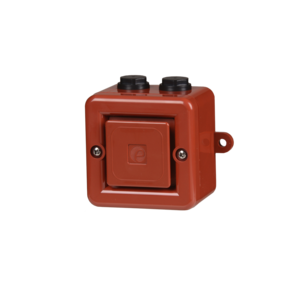

M: Multi type with lugs - 1 x side 20mm entry with stopping plug
[x] = Enclosure colour: G: Grey R: Red W: White
Suffix part number with ‘-UL’ for UL approved version
Suffix part number with ‘-M’ for MED approved version.
[24V dc unit only]

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 25mA
24V ac 50/60Hz +/-10% 40mA
115V ac 50/60Hz +/-10% 13mA
230V ac 50/60Hz +/-10% 13mA

Tone Table

Stage 1 WAV file Frequency Description Stg 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous - PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
AC Version:
S1 WAV File Description
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) - NF S 32-001
T 5 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous - PFEER Toxic Gas
T 6 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell
T 7 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 8 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping
T 9 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
T 10 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
