AL100H Alarm Horn Sounder & LED Beacon 2-31-100

Product image
Product Image

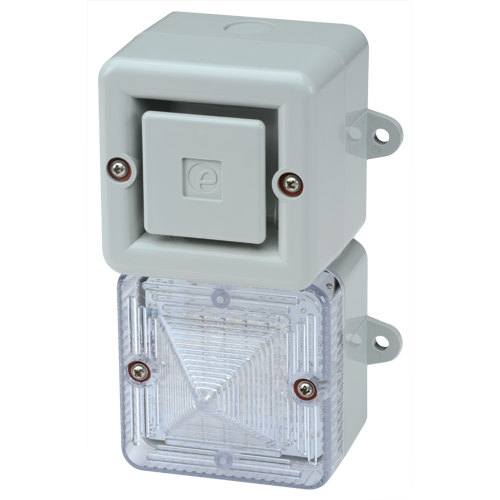

The AL100H features the 104dB(A) A100 alarm horn sounder combined with the L101H high output L.E.D. beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.
Request a quote for this product
Voltage
Enclosure Color
LED Color
Version
Part Number:
AL100H
Request Price or enquire about this product
Enquire about
Alarm Horn Sounder & LED Beacon

Upgrade Notification

Note: Product upgrade launching 1st June 2021
View upgraded product details here

Notification Image

Description

The array of 24 Superflux type high output L.E.D’s generates over 120 candela of light output and can be user set to either steady of flashing mode. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Downloads

Datasheet Datasheet.pdf
Sounder/horn installation A100_Inst__ISN0101-A_.pdf
Beacon/light installation L101H_Inst__D169-00-001-D_.pdf
Programmable version installation PROGSNDR_Inst__ISN2802-A_.pdf
UL certifcate of compliance UL_CoC_-_20120402-S7995_A-Range__AL-Range.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-023_Issue_F_AL-range.pdf

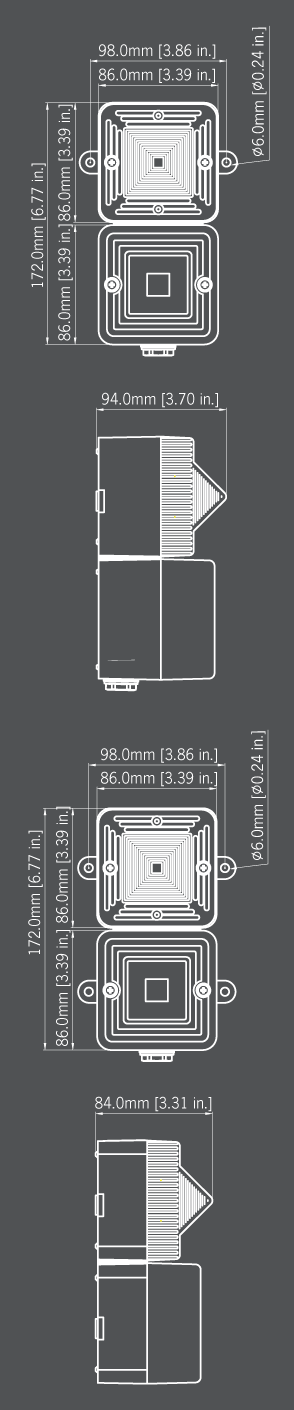

2D drawing (PDF) SK0134_Issue_C.pdf
2D drawing (DWG) SK0134_Issue_B.dwg
Hi-res product image 1 (TIFF) 2-31-100_AL100H-G.tif
Hi-res product image 2 (TIFF) 2-31-100_AL100H-R.tif
Lo-res product image 1 (JPG) 2-31-100_AL100H-G.jpg
Lo-res product image 2 (JPG) 2-31-100_AL100H-R.jpg

Features

  • High output L.E.D array
  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Unit can be mounted using external lugs or internal BESA compatible fixing positions.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.
  • Stage Programmable 4 stage/channel version available:
    45 alarm tones
    4 remotely selectable stages
    Any tone can be assigned to any stage
    User configurable continuous frequency tone

Specification

Sounder:
Maximum output: 104dB(A) @ 1 metre [95dB(A) @ 10ft/3m]
Nominal output: 100dB(A) @ 1m +/- 3dB – Tone 2 [91dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 100dB(A); Min. 90dB(A) – Tone 2
Effective range: 32m/105ft @ 1KHz
Stage switching: Negative
Reverse polarity stage switching on DC units.
Beacon:
Light source: High intensity L.E.D. array.
24 x Superflux type high ouput L.E.D’s
Options: Steady or 2Hz flash mode
(on board selection)
Peak/Effective Intensity cd: Green L.E.D: 176cd – measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm² cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light.
General:
Voltages DC: 24V dc (10-30V dc); 48V dc (35-60V dc)
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66
Enclosure material: High impact UL94 V0 & 5VA FR ABS
Enclosure colour: Red (RAL3000), grey (RAL7038) & white.
Cable entries: 4 x M20 clearance gland entries in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20° [68°]
Weight: DC: 0.46kg/1.01Ibs AC:0.57kg/1.25Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Version: Part code:
24V dc AL100HDC024[x]/[y]
48V dc AL100HDC048[x]/[y]
115V ac AL100HAC115[x]/[y]
230V ac AL100HAC230[x]/[y]
[x] = Enclosure colour: G: Grey, R: Red, W: White
[y] = Lens colour: A: Amber, B: Blue. W: White (Clear), G: Green, R: Red
Note: To maximise output in high ambient light environments the AL100H uses clear lenses for all L.E.D colours.
Suffix part number with ‘-P’ for stage programmable, 4 stage, 45 tone version (not available with UL approval).
Suffix part number with ‘-UL’ for UL approved version.

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 25mA*
115V ac 50/60Hz +/-10% 20mA
230V ac 50/60Hz +/-10% 15mA
* current at nominal voltage on Tone 2

Approvals

  • Alarm sounder (A100): EN54-3 (CPD 89/106/EEC).
  • GOST-R approved. Cert: POCC GB-JB05-H00144
  • UL & cULs approved: General signalling use.

L.E.D. Beacon

Version: Voltage: Current:
24V dc 10-30V dc 155mA (@ 24V dc)
115/230V ac 50/60Hz 90-260V ac/dc 35mA (@230V ac)

Tone Table

Stage 1 WAV file Frequency Description. (Stg 2 (Stg 3
T 1 /system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV 340 Hz Continuous T 2 T 5
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV 800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV 2400Hz Continuous T 3 T 20
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV 2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV 2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 15 T 2
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV 2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV 1000Hz @ 1Hz Intermittent T 2 T 5
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV 800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV 2400Hz @ 1Hz Intermittent T 15 T 5
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV 800Hz Continuous T 2 T 5
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV 660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 2 T 27
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV 660Hz Continuous T 2 T 5
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV 554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV 544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz @ 2Hz Intermittent T 6 T 5
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV 800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 2 T 15
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV 554Hz Continuous T 26 T 5
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV 440Hz Continuous T 2 T 5
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30 /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV 300Hz Continuous T 2 T 5
T 31 /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV 660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32 /system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV Two T chime. T 26 T 15
Country specific or custom tone configurations and alarm frequencies are available upon request.
