H100TX Trumpet Horn & Xenon Strobe Beacon

  • Volume control.
  • Stainless steel fixings.
  • Bayonet fixing lens.
  • Anti-tamper locking screw.

Approvals

  • GOST-R approved: POCC GB-JB05-H00144.
2-31-300h100tx_cat
H100TX Trumpet Horn & Xenon Strobe Beacon
Eac-logo Ce-approval Gost-approval
2-31-300

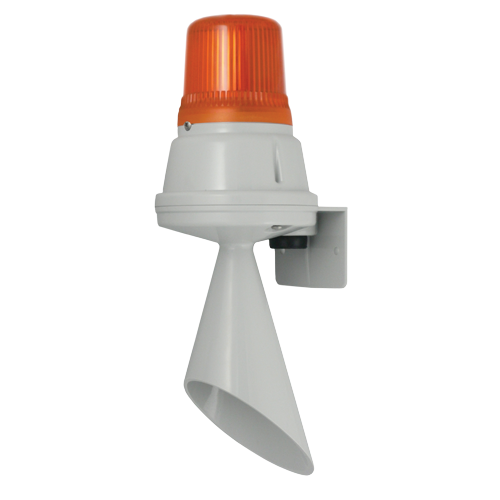

H100TX Trumpet Horn & Xenon Strobe Beacon

Rated for continuous use the H100 series is a compact, high output signal suitable for a variety of installation types. In addition to the 'buzzer' type sound the unit features a further two alarm sounds.

The H100TX incorporates the H100T with a 1J Xenon strobe beacon. It is available in six lens colours and operating voltages from 12V dc to 230V ac.

Specification

Horn:
No. of tones: 3
Output: 100 dB(A) @ 1m
Beacon:
Light source: Xenon Strobe
Energy: 1 Joule (1Ws)
Flash frequency: 0.75 Hz
Lens colours: Amber, Blue, Clear, Green,
Red & Yellow
Lens type: Prismatic (standard) or plain
Peak Candela: 100,000 cd - calculated from energy (J)
Effective Intensity cd: 50 cd - calculated from energy (J)
Peak Candela: 59,155 cd* - measured ref. to I.E.S.
Effective Intensity cd: 37 cd* - measured ref. to I.E.S.
General:
Dimensions: 241.2 x 94.2mm
Mounting: Surface mount
Entries: 1 x 5-7mm push through grommet
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Lens material: High impact PC (UL94V0 f1)
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 219g/0.48Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
24V dc/ac H100TX024G/*
115V ac H100TX115G/*
230V ac H100TX230G/*
* = Lens colour: A: Amber, B: Blue, C: Clear,
G: Green, R: Red, Y: Yellow

Beacon current consumption

Version: Voltage: Current:
24V dc/ac 24V dc 82mA
24V dc/ac 24V ac 50/60Hz 145mA
115V ac 115V ac 50/60Hz 30mA
230V ac 230V ac 50/60Hz 20mA

Horn current consumption

Version: Voltage: Current:
24V dc/ac 24V dc 10mA
24V dc/ac 24V ac 50/60Hz 24mA
115V ac 115V ac 50/60Hz 19mA
230V ac 230V ac 50/60Hz 10mA

Tone Table

Stage 1 WAV file Frequency Description.
T 1 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 2 /system/1/assets/files/000/000/418/418/664b0e444/original/TF051.WAV Simulated buzzer sound
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.
Country specific or custom tone configurations and alarm frequencies are available upon request.
