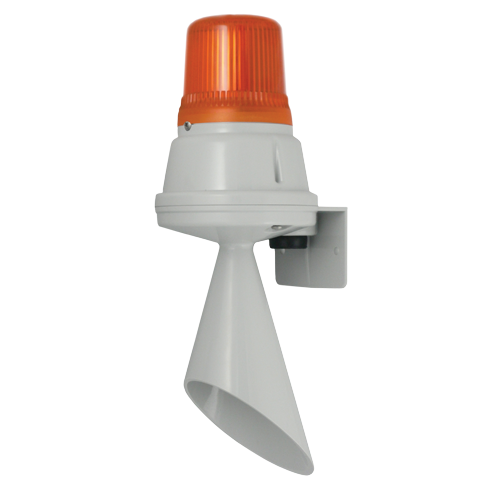

H100TF Trumpet Horn & Filament Lamp Beacon 2-31-320

Product image
Product Image
Product Image
Rated for continuous use the H100 series is a compact, high output signal suitable for a variety of installations. In addition to the ‘buzzer’ type sound the unit features a further two alarm sounds.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
H100TF
Request Price or enquire about this product
Enquire about
Trumpet Horn & Filament Lamp Beacon

Description

The H100TF incorporates the H100T with a 5W flashing filament lamp beacon. It is available in six lens colours and operating voltages from 12V dc to 230V ac.

Downloads

Datasheet Datasheet.pdf
Installation Manual D152-00-301-IS_Issue_1__H100TF_.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-031_Issue_F_H100__H110.pdf
2D drawing (PDF) SK0060_Issue_B.pdf
2D drawing (DWG) SK0060_Issue_B.DWG
Hi-res product image 1 (TIFF) 2-31-320_H100TF-A.tif
Hi-res product image 2 (TIFF) 2-31-320_H100TF-B.tif
Hi-res product image 3 (TIFF) 2-31-320_H100TF-GROUP.tif

Features

  • Volume control
  • Stainless steel fixings.
  • Bayonet fixing lens.
  • Anti-tamper locking screw.

Specification

Horn:
No. of tones: 3
Output: 100 dB(A) @ 1m
Beacon:
Light source: Filament lamp BA9s
Light output: 5W
Flash frequency: 1Hz
Candela: 2 cd* (peak/effective intensity)
Lens colours: Amber, Blue, Clear, Green,
Red & Yellow
Lens type: Prismatic (standard) or plain
General:
Dimensions: 241.2 × 94.2mm
Mounting: Surface mount
Entries: 1 × 5-7mm push through grommet
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Lens material: High impact PC (UL94V0 f1)
Terminals: 0.5 to 1.5mm²
Operating temp: -25 to +50°C [-13° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 219g/0.48Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
12V dc H100TF012G/*
24V dc H100TF024G/*
115V ac H100TF115G/*
230V ac H100TF230G/*
* = Lens colour: A: Amber, B: Blue, C: Clear,
G: Green, R: Red, Y: Yellow

Approvals

  • GOST-R approved: POCC GB-JB05-H00144.

Beacon current consumption

Version: Voltage: Current:
12V dc 500mA
24V dc 250mA
115V ac 50/60Hz 35mA
230V ac 50/60Hz 25mA

Horn current consumption

Version: Voltage: Current:
10-30V dc 12V dc 10mA
10-30V dc 24V dc 24mA
115V ac 115V ac 50/60Hz 19mA
230V ac 230V ac 50/60Hz 10mA

Spare bulb/lamp part codes

Voltage: Wattage: Type: Part code:
12V dc 5W BA9s BR10125B
24V dc 5W BA9s BR10245B
115V ac 5W BA9s BR101305B
230V ac 5W BA9s BR102305B

Tone Table

Stage 1 WAV file Frequency Description.
T 1 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 2 /system/1/assets/files/000/000/418/418/664b0e444/original/TF051.WAV Simulated buzzer sound
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
Country specific or custom tone configurations and alarm frequencies are available upon request.
