With an output of 110dB(A) the H110T is ideal for all general signalling applications and the ingress protection rating of IP65 means it is suitable for indoor and outdoor installations.

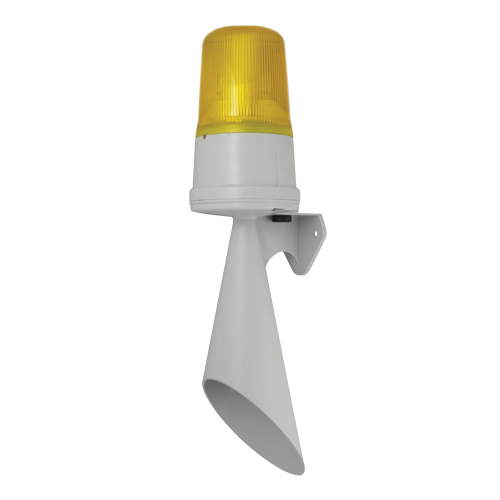

The H110TL incorporates the H110T with a multi-function L.E.D beacon. It is available in five L.E.D colours and operating voltages from 10V dc to 230V ac.
| Datasheet | Datasheet.pdf |
| Installation Manual | D153-00-201-IS_Issue_1__H110TL_.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Fire certificate | Russian_Fire_Certificate_-GB.25..03286.PDF |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-031_Issue_F_H100__H110.pdf |
| 2D drawing (PDF) | SK0064_Issue_B.pdf |
| 2D drawing (DWG) | SK0064_Issue_B.DWG |
| Hi-res product image 1 (TIFF) | 2-31-350_H110TL-Y.tif |
| Hi-res product image 2 (TIFF) | 2-31-350_H110TL-GROUP.tif |
| Horn: | |
|---|---|
| No. of tones: | 3 |
| Output: | 110 dB(A) @ 1m |
| Stages: | Remotely selectable second stage |
| Stage switching: | DC voltage via negative AC voltage via live supply |
| Beacon: | |
| Light source: | 16 x High power L.E.D’s |
| Peak/Effective Intensity cd: | 19 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear (White L.E.D), Green, Red & Yellow |
| Lens type: | Prismatic (standard) or plain |
| General: | |
| Dimensions: | 462.9 × 135mm |
| Mounting: | Surface mount |
| Entries: | 1 × 5-7mm push through grommet |
| Ingress protection: | IP65 |
| Housing material: | High impact ABS (UL94V0 & 5VA) |
| Lens material: | High impact PC (UL94V0 f1) |
| Terminals: | 0.5 to 1.5mm² |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 606g/1.33Ibs |
| *SPL data +/-3dB(A). Measured at optimum voltage. *Candela measurements representative of performance with clear lens at optimum voltage. |
|
| Version: | Part code: |
|---|---|
| 10-30V dc | H110TL030G/* |
| 48V dc | H110TL048G/* |
| 90-260V ac | H110TL230G/* |
| * = Lens colour: | A: Amber, B: Blue, C: Clear, G: Green, R: Red, Y: Yellow |
| Version: | Voltage: | Current: |
|---|---|---|
| 10-30V dc | 12V dc | 265mA |
| 10-30V dc | 24V dc | 130mA |
| 48V dc | 48V dc | 70mA |
| 90-260V ac/dc | 115V dc | 17mA |
| 90-260V ac/dc | 230V dc | 9mA |
| 90-260V ac/dc | 115V ac 50/60Hz | 90mA |
| 90-260V ac/dc | 230V ac 50/60Hz | 50mA |
| Mode: | Stage 1 | Stage2 [DC only] |
|---|---|---|
| 1 | All L.E.D’s on | Alternate Side Flash 2Hz |
| 2 | Rotating: Slow1 | Alternate Side Flash 2Hz |
| 3 | Single Strike Flash 2Hz | Rotating: Fast 2 |
| 4 | Rotating: Fast 1 | Single Strike Flash 2Hz |
| 5 | Rotating: Slow 2 | Double Strike Flash 1Hz |
| 6 | Double Strike Flash 2Hz | Rotating: Fast 2 |
| 7 | Rotating: Fast 2 | Double Strike Flash 2Hz |
| 8 | Double Strike Flash 1Hz | Alternate Side Flash 2Hz |
| 9 | Alternate Side Flash 2Hz | Rotating: Fast 2 |
| Version: | Voltage: | Current: |
|---|---|---|
| 10-30V dc | 12V dc | 52mA |
| 10-30V dc | 24V dc | 105mA |
| 48V dc | 48V dc | 42mA |
| 90-260V ac/dc | 115V dc | 16mA |
| 90-260V ac/dc | 230V dc | 8mA |
| 90-260V ac/dc | 115V ac 50/60Hz | 36mA |
| 90-260V ac/dc | 230V ac 50/60Hz | 18mA |
| Stage 1 | *WAV file* | Frequency Description. | Stg 2 |
|---|---|---|---|
| T 1 | /system/1/assets/files/000/000/424/424/33c1c60f3/original/TF052.WAV | Electro-mechanical diaphragm horn sound | T 2 |
| T 2 | /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV | 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. | T 1 |
| T 3 | /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV | 800/1000Hz @ 7Hz Sweeping | T 2 |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | |||
