DL105X Alarm Sounder & Xenon Beacon

  • High output, up to 112dB(A) SPL.
  • 3 remotely selectable alarm stages.
  • Choice of 32 alarm tone frequencies.
  • Automatic synchronisation on multi-sounder system.
  • 5 Joule, 200 candela Xenon beacon.
  • Continuously rated.
  • Stainless steel fixings.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.
  • ‘Programmable’ version available:
    - 45 alarm tones
    - 4 remotely selectable stages
    - Any tone can be assigned to any stage
    - User configurable continuous frequency tone

Approvals

  • UL & cULs approved: General signalling use.
2-31-360dl105x_cat
DL105X Alarm Sounder & Xenon Beacon
Eac-logo Culs-approval Ce-approval
2-31-360

DL105X Alarm Sounder & Xenon Beacon

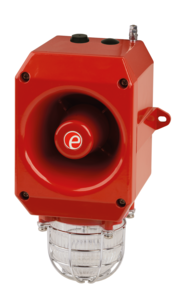

The DL105X is a high output, 112dB(A) alarm sounder with integrated Xenon beacon. Low current consumption and high SPL in a robust IP66 housing ensure the DL105X is suitable for all general signalling applications including fire, security and process control. The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilence in the harshest of industrial environments.

Specification

Sounder:
Maximum output: 112dB(A) @ 1 metre [103dB(A) @ 10ft/3m]
Nominal output: 105dB(A) @ 1m +/- 3dB - Tone 2 [96dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A); Min. 96dB(A) - Tone 2
Effective range: 60m/197ft@ 1KHz
Stage switching: Negative
Reverse polarity stage switching on DC units.
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd - calculated from energy (J)
Effective Intensity cd: 250 cd - calculated from energy (J)
Peak Candela: 86,935 cd* - measured ref. to I.E.S.
Effective Intensity cd: 200 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Tube life: Emissions are reduced to 70% after 5 million flashes
General:
Voltages DC: 12V dc; 24V dc; 48V dc
[DC units can use 24V ac for single stage applications.]
Voltages AC: 24V ac; 115V ac; 230V ac
Ingress protection: IP66, Type 4 / 4X / 3R
Housing material: Marine grade aluminium A1 Si12 Cu
Colour: Red (RAL3000), grey (RAL7038)

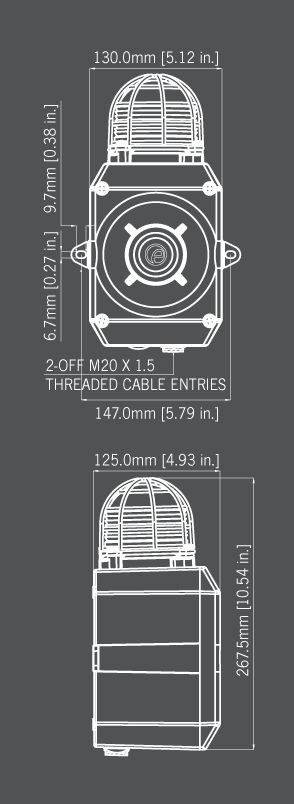

Cable entries: 2 x M20 x 1.5mm threaded gland entries
supplied with one stoppoing plug
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 2.10kg/4.62Ibs AC:2.35kg/5.17Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Version: Part code:
12V dc DL105XD0C12[x]/[y]
24V dc DL105XDC024[x]/[y]
48V dc DL105XDC048[x]/[y]
24V ac DL105XAC024[x]/[y]
115V ac DL105XAC115[x]/[y]
230V ac DL105XAC230[x]/[y]
[x] = Housing colour: G: Grey R: Red
[y] - Lens colour: A: Amber, B: Blue, C: Clear,
G: Green, R: Red, Y: Yellow
Suffix part number with ‘-P’ for programmable, 4 stage, 45 tone version (not available with UL approval).
Suffix part number with ‘-UL’ for UL approved version.

Alarm sounder

Version: Voltage: Current:
12V dc 10-30V dc 25mA*
24V dc 10-30V dc 25mA*
48V dc 35-60V dc 50mA*
24V ac 50/60Hz +/-10% 40mA
115V ac 50/60Hz +/-10% 20mA
230V ac 50/60Hz +/-10% 15mA
* current at nominal voltage on Tone

xenon beacon

Version: Voltage: Current:
12V dc 10-14V dc 380mA
24V dc 20-28V dc 250mA
48V dc 42-54V dc 175mA
24V ac 50/60Hz +/-10% 300mA
115V ac 50/60Hz +/-10% 70mA
230V ac 50/60Hz +/-10% 35mA

Tone Table

Stage 1 WAV file Frequency Description. (Stg 2 (Stg 3
T 1 /system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV 340 Hz Continuous T 2 T 5
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV 800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV 2400Hz Continuous T 3 T 20
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV 2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV 2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 15 T 2
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV 2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV 1000Hz @ 1Hz Intermittent T 2 T 5
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV 800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV 2400Hz @ 1Hz Intermittent T 15 T 5
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV 800Hz Continuous T 2 T 5
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV 660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 2 T 27
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV 660Hz Continuous T 2 T 5
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV 554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV 544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz @ 2Hz Intermittent T 6 T 5
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV 800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 2 T 15
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV 554Hz Continuous T 26 T 5
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV 440Hz Continuous T 2 T 5
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30 /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV 300Hz Continuous T 2 T 5
T 31 /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV 660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32 /system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV Two T chime. T 26 T 15
Country specific or custom tone configurations and alarm frequencies are available upon request.
