BExCS110-L2 Explosion Proof Alarm Horn & LED Beacon

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Ingress protection IP66/67
  • Automatic synchronisation on multi-beacon systems
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Dual M20 cable entries - adaptors available.
  • Stopping plug included.
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Very large termination area.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 160 candela effective light intensity.
  • ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.

Approvals

  • IECEx KEM 10.0025X
    IEC 60079-0 : 2011
    IEC 60079-1 : 2007-4
    IEC 60079-31 : 2013

  • ATEX KEMA 01ATEX2223X
    EN 60079-0 : 2012 + A11
    EN 60079-1 : 2007
    EN 60079-31 : 2014

  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109

1-23-030bexcs110-l1_cat
BExCS110-L2 Explosion Proof Alarm Horn & LED Beacon
Eac-logo Ex-eac-logo Iecex-approval Atex-approval Ce-approval Gost-approval
1-23-031

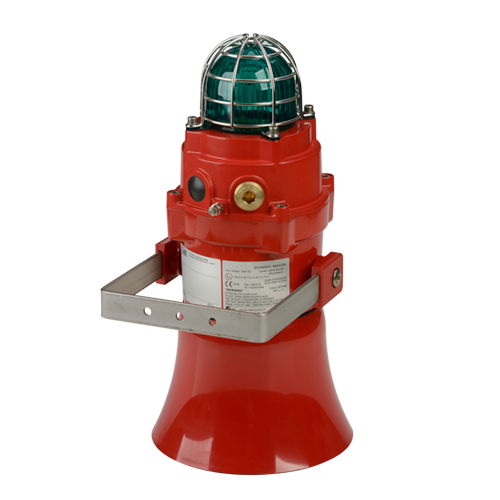

BExCS110-L2 Explosion Proof Alarm Horn & LED Beacon

The flameproof BExCS110-L2 combination alarm horn sounder and LED beacon is suitable for Zone 1, 2, 21 & 22. Approved to IECEx and ATEX standards.

The BExCS110-L2 features sound level ouputs of up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. The LED beacon contains an array of 4 high output, multi-function L.E.D.s. with a total of 7 modes of operation - 5 flashing modes and 2 steady modes for use in indicator / status applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Specification

Sounder/Horn:
Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB - Tone 2 [101dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 110dB(A); Min. 72dB(A)- Tone 2
Effective range: 100m/328ft @ 1KHz
Voltages: 24V dc; 48V dc; 115V ac; 230V ac
Stage switching: Negative or positive
LED Beacon:
Source: Array of 4 x High Power Cree® LED's
Modes: 1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd: 87 cd - High Power Steady
Eff. Intensity cd: 160 cd - 1Hz flash
Voltages: 24V dc; 115V ac; 230V ac
General:
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Phosphated & powder coated
Horn material: High impact UL94 V0 & 5VA FR ABS (Red)
Cable entries: Dual M20 ISO (one stopping plug included)
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs
SPL data +/-3dB(A), Candela with clear lens - at optimum voltage

Current Consumption

Alarm Horn LED Beacon
Version: Voltage: Current: Voltage: Steady
High
Power:
Steady
Low
Power:
Flashing
1Hz:
24V dc +/-25% 265mA 18-54V 240mA 134mA 110mA
115V ac 50/60Hz +/-10% 110mA +/-10% 95mA 78mA 90mA
230V ac 50/60Hz +/-10% 56mA +/-10% 48mA 37mA 45mA

Part Codes

Version: Part code:
Product type: BExCS110L2 Explosion proof
Alarm Horn Sounder & LED Beacon
Type: DPF Ex d
UV stable PC Colour Lens, Flare Horn
Voltage: DC024
DC048
AC115
AC230
24V dc
48V dc
115V ac
240V ac
Cable Entry Type:[e]






Note:
A
B
C
D
E
F
G
2 x M20x1.5mm
2 x 1/2" NPT - adaptors
2 x 3/4" NPT - adaptors
2 x M25x1.5mm - adaptors
1 x 1/2" NPT - adaptor
1 x 3/4" NPT - adaptor
1 x M25x1.5mm - adaptor
M20 stopping plugs for unused entries
supplied with all options
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/Guard material: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1
P1
Default - IECEx & ATEX
Stage programmable - IECEx & ATEX
Enclosure colour: [x] R
S
Red RAL3000
Special - contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow

Beacon modes

Stage 1:
[On board]
Stage 2:
[Remote]
Stage 3:
[Remote]
Steady High Power Flashing 1Hz Triple Strike
Steady Low Power Flashing 1Hz Triple Strike
Flashing 1Hz 2x Flash 2Hz Triple Strike
Flashing 1.5Hz Flashing 2Hz Double Strike
Flashing 2Hz Triple Strike Triple Strike
Double Strike Steady High Power Triple Strike
Triple Strike Flashing 2Hz Double Strike
Note: Remote second and third stage on DC units only

Coding

  • II 2G Ex d IIB T5 Gb Ta. -50°C to +50°C
  • II 2G Ex d IIB T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T70°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T85°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T100°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV Continuous 1000Hz Toxic Gas Alarm T 31 T 11
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV Alternating 800/1000Hz at 0.25s intervals T 17 T 5
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated T 2 T 5
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV Sweeping 800/1000 at 1Hz T 6 T 5
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV Continuous at 2400Hz T 3 T 27
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV Sweeping 2400/2900Hz at 7Hz T 7 T 5
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV Sweeping 2400/2900Hz at 1Hz T 10 T 5
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV Siren 500/1200/500Hz at 0.3Hz T 2 T 5
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV Sawtooth 1200/500Hz at 1Hz T 15 T 2
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV Alternating 2400/2900Hz at 2Hz T 7 T 5
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV Intermittent 1000Hz at 0.5Hz General alarm T 31 T 1
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV Alternating 800/1000Hz at 0.875Hz T 4 T 5
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV Intermittent 2400Hz at 1Hz T 15 T 5
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV Intermittent 800Hz 0.25s on 1s off T 4 T 5
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV Continuous at 800Hz T 2 T 5
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV Intermittent 660Hz 150mS on, 150mS off T 18 T 5
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV Alternating 544Hz (100mS)/440Hz(400mS) T 2 T 27
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV Intermittent 660Hz 1.8s on, 1.8s off T 2 T 5
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s T 2 T 5
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV Continuous 660Hz T 2 T 5
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV Alternating 554/440Hz at 1Hz T 2 T 5
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV Intermittent 554Hz at 0.875Hz T 2 T 5
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz pulsing at 2Hz T 6 T 5
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV Sweeping 800/1000Hz at 50Hz T 29 T 5
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV Sweeping 2400/2900Hz at 50Hz T 29 T 5
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Simulated bell sound T 2 T 1
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz T 26 T 5
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV Continuous 440Hz T 2 T 5
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV Sweeping 800/1000Hz at 7Hz T 7 T 5
T 30 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz repeating 0.625s on, 0.625s off Australian alert signal T 32 T 5
T 31 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz at 1 Hz Prepare to Abandon Platform T 11 T 1
T 32 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz T 26 T 1
Country specific or custom tone configurations and alarm frequencies are available upon request.
