BExCBGL2-05 LED & Xenon Dual Beacon 1-21-141

Product image
Product Image
Product Image

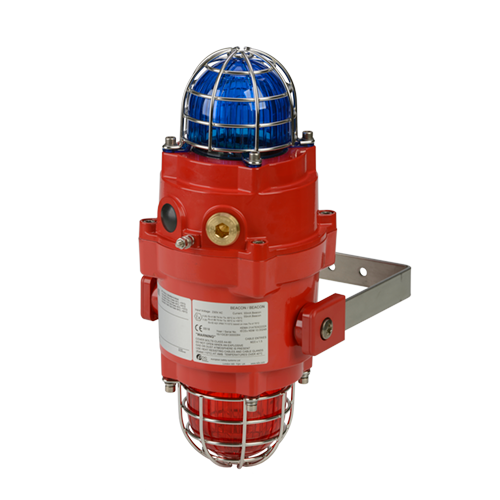

The flameproof BExCBGL2-05 dual LED and Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards.
Request a quote for this product
Type
Voltage
Cable entries
Stopping plug/adaptor material
Bracket/Guard material
Product version
Enclosure colour
First lens colour
Second lens colour
Part Number:
BExCBGL205
Request Price or enquire about this product
Enquire about
LED & Xenon Dual Beacon

Description

The BExCBGL2-05D dual LED & 5 Joule Xenon beacons robust construction enables installation in the harshest of environments. The beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Installation Manual D210-01-711-IS_Issue_1_BExCBGL2-05.pdf
INMETRO Installation Manual D201-00-601-IS-IEx_Issue_A.pdf
IECEx certificate IECEx_KEM_10.0024X_Issue_3_BExCBG.pdf
ATEX certificate KEMA_01ATEX2222X_Issue_5_BExCBG.pdf
UKCA Certificate UL22UKEX2637X_Rev_0_BExCBG.pdf
INMETRO certificate IEx_19.0092X_R1_BExCBG.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01252_21.pdf
Declaration of Conformity DC-006_Issue_K_BExCBG.pdf
Declaration of Conformity UKCA DC-107_Issue_A_BExCBG_UKCA.pdf
2D drawing (PDF) D210-05-701_Issue_2.pdf
2D drawing (DWG) D210-05-701_Issue_2.dwg
3D drawing (STEP) D210-05-701-3D_Issue_A.STEP
Wiring Schematic DC voltage D210-06-721_Issue_1_BExCBGL2-05D_DC.pdf
Wiring Schematic AC voltage D210-06-715_Issue_1_BExCBGL2-05D_AC.pdf
Nameplate Drawing D210-09-711_Issue_1_BExCBGL2-05D.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing D217-05-701_Issue_1__BExCBG_.pdf

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Automatic synchronisation on multi-beacon system.
  • Glass lens & Stainless Steel guard
  • Very large termination area.
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 120+160 candela effective light intensity.
  • UV stable PC, field replaceable, colour lens filters.
  • LED modes:
    1Hz flash (60 fpm)
    1.5Hz flash (90 fpm)
    2Hz flash (120 fpm)
    Double strike flash
    Triple strike flash
    High Power Steady
    Low Power Steady

Specification

Xenon Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 39,463 cd – 1Hz flash
Eff. Intensity cd: 120 cd – 1Hz flash
LED Beacon:
Source: Array of 4 x High Power Cree® LED’s
Eff. Intensity cd: 87 cd – High Power Steady
Eff. Intensity cd: 160 cd – 1Hz flash
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 24vdc
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free
LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: Red
(others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Tube life: Emissions are reduced to 70% after 8 million flashes
LED life: 60,000 hours
Weight: DC: 4.00kg/8.8Ibs AC: 4.35kg/9.57Ibs
*All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Steady High Power: Steady Low Power: Flashing 1Hz:
LED: 24V dc 18-54V dc 240mA 134mA 110mA
LED: 115V ac 103.5-126.5V ac 50/60Hz 95mA 78mA 90mA
LED: 230V ac 207-253V ac 50/60Hz 48mA 37mA 45mA
Xenon: 24V dc 20-28V dc 300mA
Xenon: 115V ac 50Hz/60Hz +/-10% 140mA
Xenon: 230V ac 50Hz/60Hz +/-10% 55mA

Part Codes

Part Code: Identifier: Description:
Product type: BExCBGL205 Explosion proof Dual LED & 5J Xenon Beacon
Type: DP Ex d, UV stable PC Colour Lenses
Voltage: DC024
AC115
AC230
24V dc
115V ac
240V ac
Cable entries:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/guard matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1 Default – IECEx, ATEX
Enclosure colour: [x] R
S
Red
Special – contact E2S
LED lens colour: [y]
Xenon lens colour: [y]
A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • IECEx Certificate: KEM 10.0024X
  • ATEX Certificate: KEMA 01ATEX2222X
  • TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
  • INMETRO certificate: IEx 19.0092X
  • UKCA certificate: UL22UKEX2637X

Assemblies

Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.

Coding

  • II 2G Ex db IIB T5 Gb Ta. -50°C to +40°C
  • II 2G Ex db IIB T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T95°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T110°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T125°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Multi-function patterns

LED Stage 1:
[On board]
LED Stage 2:
[Remote]
LED Stage 3:
[Remote]
Steady High Power Flashing 1Hz Triple Strike
Steady Low Power Flashing 1Hz Triple Strike
Flashing 1Hz 2x Flash 2Hz Triple Strike
Flashing 1.5Hz Flashing 2Hz Double Strike
Flashing 2Hz Triple Strike Triple Strike
Double Strike Steady High Power Triple Strike
Triple Strike Flashing 2Hz Double Strike
Note: Remote second and third stage on DC units only
Double strike: 150ms on, 150ms off x 2, 600ms off
Triple strike: 150ms on, 150ms off x 3, 600ms off
