IS-D105 Alarm Sounder 1-12-030

Product image
Product Image

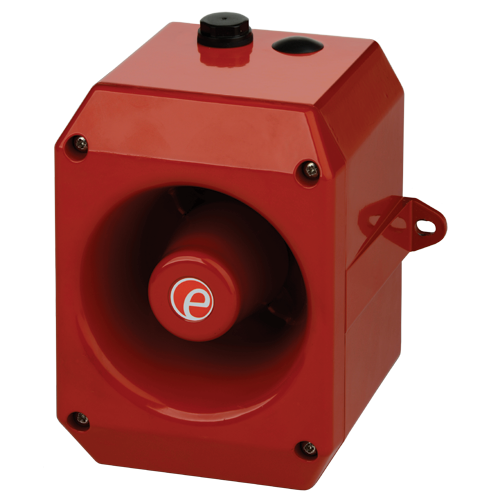

The IS-D105 unit is an intrinsically safe field mounting alarm horn with ATEX & IECEx approval which provides a loud audible signal.
Request a quote for this product
Enclosure Color
Part Number:
IS-D105-
Request Price or enquire about this product
Enquire about
Alarm Sounder

Description

There is a choice of 49 alarm tones with 2 remotely selectable alarm stages. The enclosure is marine grade aluminium with a phosphate and powder coat finish for durability in the harshest of environments.

Downloads

Datasheet Datasheet.pdf
Installation Manual D187-01-001-IS_Issue_2__IS-D105_.pdf
IECEx certificate IECEx_SIR_04.0038X_Issue_5_IS-A105N__IS-D105.pdf
ATEX certificate Sira_04ATEX2301X_IS-A105N_IS-D105.pdf
UKCA Certificate CSAE_21UKEX2551X_Iss_0_IS-A105N__IS-D105.pdf
Russian Ex certificate C_RU_C-GB.71..00273_20.pdf
Declaration of Conformity DC-009_Issue_J_IS-A105N__IS-D105.pdf
Declaration of Conformity UKCA DC-089_Issue_A_UKCA_IS-A105N__IS-D105.pdf
2D drawing (PDF) SK0246_Issue_D.pdf
2D drawing (DWG) SK0246_Issue_D.DWG
3D drawing (STEP) SK0305-3D_Issue_1.STEP
Nameplate Drawing D187-09-001_Issue_2_IS-D105_IS-DL105.pdf
Hi-res product image 1 (TIFF) 1-12-030_IS-D105-G.tif
Hi-res product image 2 (TIFF) 1-12-030_IS-D105-R.tif

Features

  • Input overload and reverse current protection
  • Marine grade aluminium enclosure
  • Auto synchronised sound output
  • External mounting lugs
  • Duplicate cable terminations
    (in & out for daisy-chain installations).
  • Available with custom tone configurations
    and frequencies.

Specification

Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 2*[96dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A);
Min. 96dB(A) – Tone 2
Effective range: 60m/197ft @ 1KHz
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier
Ingress protection: IP66
Rating: Continuous
Enclosure material: A1-Si12 Marine Grade Aluminium
Housing colour: RAL3000 Red or RAL7038 Grey
Fixings: Stainless Steel
Cable entries: 2 x M20
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.60kg/3.52Ibs

Part Codes

IS-D105-x
ATEX / IECEx
II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
[x] : Enclosure colour R: Red
G: Grey
May be powered from any certified Zener barrier or galvanic isolator whose output parameters do not exceed:
Uo : 28VDC Io : 93mA Po : 660mW

Approvals

  • ATEX certificate: SIRA 04ATEX2301X
  • IECEx certificate: IECEx SIR 04.0038X

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV 340 Hz Continuous T 2 T 5
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV 800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV 2400Hz Continuous T 3 T 20
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV 2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV 2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 15 T 2
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV 2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV 1000Hz @ 1Hz Intermittent T 2 T 5
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV 800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV 2400Hz @ 1Hz Intermittent T 15 T 5
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV 800Hz Continuous T 2 T 5
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV 660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 2 T 27
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV 660Hz Continuous T 2 T 5
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV 554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV 544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz @ 2Hz Intermittent T 6 T 5
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV 800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 2 T 15
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV 554Hz Continuous T 26 T 5
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV 440Hz Continuous T 2 T 5
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30 /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV 300Hz Continuous T 2 T 5
T 31 /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV 660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32 /system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV Two T chime. T 26 T 15
T 33 /system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV 745Hz @ 1Hz Intermittent T 2 T 5
T 34 /system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV 1000 & 2000Hz @ 0.5 sec Alternating – Singapore T 38 T 45
T 35 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert T 36 T 5
T 36 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 35 T 5
T 37 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas T 9 T 45
T 38 /system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV 2000Hz Continuous T 34 T 45
T 39 /system/1/assets/files/000/000/401/401/e3954ab10/original/TF039.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 23 T 17
T 40 /system/1/assets/files/000/000/403/403/88b145b84/original/TF040.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 31 T 27
T 41 /system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV Motor Siren – slow rise to 1200 Hz T 2 T 5
T 42 /system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV Motor Siren – slow rise to 800 Hz T 2 T 5
T 43 /system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV 1200 Hz Continuous T 2 T 5
T 44 /system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV Motor Siren – slow rise to 2400 Hz T 2 T 5
T 45 /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV 1KHz 1s on, 1s off Intermittent – PFEER Gen. Alarm T 38 T 34
T 46 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 47 T 37
T 47 /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV 1KHz 1s on, 1s off Intermittent – PFEER Gen. Alarm T 46 T 37
T 48 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert T 49 T 5
T 49 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 26 T 37
Country specific or custom tone configurations and alarm frequencies are available upon request.
