MCBLD2X05 LED & Xenon Strobe Beacon

  • Continuously rated.
  • Large termination area.
  • Stainless steel fixings.
  • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Field replaceable UV stable coloured lens filters.
  • Tropicalisation available on request.
  • Array of 4 x high power Cree® LED's
  • Modes: 1Hz flash (60 fpm)
    1.5Hz flash (90 fpm)
    2Hz flash (120 fpm)
    Double strike flash
    Triple strike flash
    High Power Steady
    Low Power Steady
  • LED eff. Intensity: 87 cd - High Power Steady
  • LED eff. Intensity: 160 cd - 1Hz flash
  • Xenon eff. Intensity: 120 cd
  • Ingress protection: IP66/67 Type 4/4X/13

Approvals

  • EAC compliant: POCC GB.JB05.H00144.
  • Russian Maritime Register
2-13-091mcbld2x05_cat
MCBLD2X05 LED & Xenon Strobe Beacon
Eac-logo Ce-approval
2-13-091

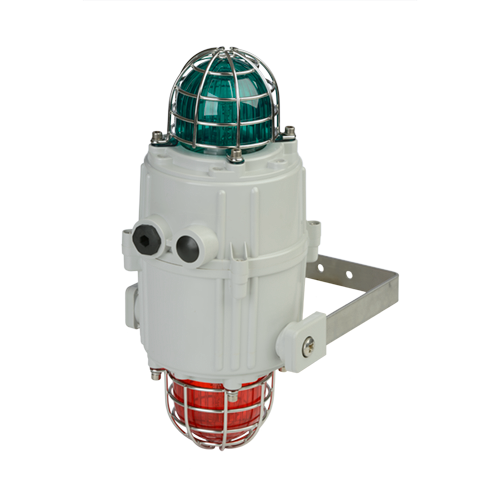

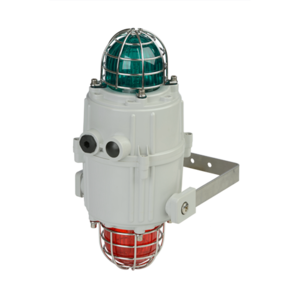

MCBLD2X05 LED & Xenon Strobe Beacon

The MCBLD2X05 is a dual LED and 5 Joule Xenon strobe beacon and status light featuring a robust, fire retardant, IP66 & IP67 enclosure. The two light sources can be connected to operate from the same power source or individually.

The 'M' series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets and has been third party tested to IP66/67.

Specification

LED Beacon
Source: Array of 4 x High Power Cree® LED's
Modes: 1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd: 87 cd* - High Power Steady
Eff. Intensity cd: 160 cd* - 1Hz flash
LED life: 60,000 hours
Xenon Beacon
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd - calculated from energy (J)
Eff. Intensity cd: 250 cd - calculated from energy (J)
Peak Candela: 39,463 cd* - measured ref. to I.E.S.
Eff. Intensity cd: 120 cd* - measured ref. to I.E.S.
General
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 24vdc
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67 Type 4/4X/13
Enclosure material: High impact UL94 V0 & 5VA FR ABS
Colour: Grey (RAL7038)
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
Operating temp: -25 to +55°C [-13 to +131°F]
Storage temp: -40 to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 4.84kg/10.67Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: LED Steady High Power
Current:
LED Steady Low Power
Current:
LED Flashing 1Hz
Current:
Xenon Flashing 1Hz
Current:
24V dc 20-28V dc 240mA 134mA 110mA 270mA
115V ac 50/60Hz +/-10% 95mA 78mA 90mA 140mA
230V ac 50/60Hz +/-10% 48mA 37mA 45mA 55mA

Part Codes

Part Code: Ident.: Description:
Product type: MCBLD2X05 LED & Xenon Strobe Beacon
Voltage: AC115
AC230
DC024
115V ac 50/60Hz
230V ac 50/60Hz
24V dc (20-28Vdc)
Cable entries: [e] A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: [m] N Nylon
Bracket & Guard: [s] 1
2
304 (A2) Stainless Steel
316 (A4) Stainless Steel
Version: [v] A1 CE, EAC & Russian Maritime
Enclosure: [x] G Grey
Lens colour 1: [y] A, B, C
G, M, R
Y
Amber, Blue, Clear
Green, Magenta, Red
Yellow
Lens colour 2: [y] A, B, C
G, M, R
Y
Amber, Blue, Clear
Green, Magenta, Red
Yellow
e.g: MCBLD2X05DC024BN1A1G/R/A MCBLD2X05 LED & Xenon Beacon in 24Vdc with dual M20 entries, nylon stopping plug
CE, EAC & RMRS compliant
Grey enclosure with Red & Amber lens
Also available as the MC1X05 combined alarm sounder and Xenon beacon and the MC1LD2 combined alarm sounder and LED beacon.
