| Datasheet | Datasheet.pdf |
| Installation Manual | D251-01-201-IS_Issue_2__IS-mB1_.pdf |
| ANZEx installation | IS5012_A_IS-mB1AN.pdf |
| IECEx certificate | IECEx_SIR_06.0045X_Issue_4_IS-mini_range.pdf |
| ATEX certificate | Sira_05ATEX2084X_Issue_9_IS-mini_range.pdf |
| FM certificate | FM_CoC_3029125_IS-mini.pdf |
| UKCA Certificate | CSAE_21UKEX2553X_Iss_0_IS-Mini.pdf |
| Russian Ex certificate | EAC_EU_C-GB.AA71.B.00273_20.pdf |
| RTN permit | RTN_permit_PPC_00-29227.pdf |
| Russian Fire certificate | Russian_Fire_Certificate_-GB.25..03286.PDF |
| Russian Maritime register | 19.00195.278.pdf |
| ANZEx certificate | ANZEx_07.4044X_Issue_0_IS-mini_Range.pdf |
| Declaration of Conformity | DC-011_Issue_J_IS-Mini.pdf |
| Declaration of Conformity UKCA | DC-088_Issue_A_UKCA_IS-Mini.pdf |
| 2D drawing (PDF) | D251-05-201_Issue_1.pdf |
| 2D drawing (DWG) | D251-05-201_Issue_1.dwg |
| 3D drawing (STEP) | D251-05-201-3D_Issue_1.STEP |
| Wiring Schematic | D5036_Issue_A_IS-mB1.pdf |
| Nameplate Drawing | D251-09-201_Issue_1_IS-mB1.pdf |

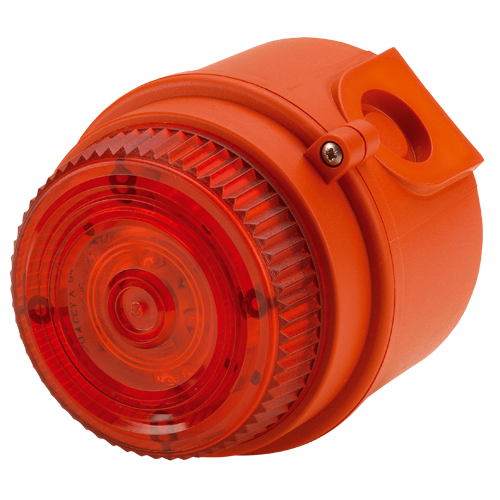

| Hi-res product image 1 (TIFF) | 1-11-010_IS-mB1-R-R.tif |
| Light source: | Array of 6 high intensity L.E.D’s. |
| L.E.D. colours: | Red, Amber, Blue, Green & Clear |
| Flash modes: | Double flash at 2Hz and 1Hz |
| Effective intensity cd: | 23cd* – measured ref. to I.E.S. |
| Voltage: | 16-28vdc via Zener barrier or galvanic isolator |
| Current: | 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier |
| Ingress protection: | IP65 |
| Rating: | Continuous |
| Enclosure material: | UL94V0 & 5VA FR ABS & PC |
| Enclosure colour: | RAL3000 Red |
| Fixings: | Stainless Steel |
| Cable entries: | 2 x M20 clearance gland knockouts. Custom configurations also available. |
| MTBF: | 294.6 years / 2,580,645 hours – MIL 217 |
| Terminals: | 0.5 to 2.5mm² |
| Operating temp: | -40° to +60°C [-40 to +140°F] |
| Storage temp: | -40° to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 0.32Kg / 0.71Ibs |
| IS-mB1-R/[y] | |
| ATEX / IECEx / FM | |
| II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C) | |
| IS Class I, Zone 0, AEx ia IIC T4 | |
| IS Class l, Division 1, Groups A, B, C, D | |
| GOST-R | |
| 0ExiaIICT4 IP65 -40° to +60°C | |
| [y]: Lens colour: | A: Amber R: Red B: Blue G: Green C: Clear (white LED) |
| May be powered from any certified Zener barrier or galvanic isolator whose output parameters do not exceed: Uo : 28VDC Io : 660mA Po : 1.2W |
|
