BExTS110/BExDTS110 Telephone Initiated Alarm Horn 1-22-090

Product image

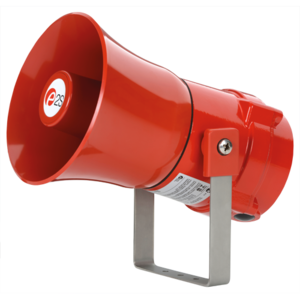

The flameproof BExTS110 telephone initiated sounders are suitable for Zone 1 & Zone 2 applications and the BExDTS110 version also for Zone 21 & 22.
Request a quote for this product
There are no options for this product.
Part Number:
BExTS110
Request Price or enquire about this product
Enquire about
Telephone Initiated Alarm Horn

Description

Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones. The ring-tone circuit senses the ringing voltage on the telephone line and swtiches the supply onto signal until the telephone is answered. The sound can be continuous or it can follow the telephone ring (selectable option).

The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. The re-entrant flare horns are high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Ex d Gas installation IS2427-P-F__BExTS110D_Gas__-_Modified1.pdf
Ex d & Ex tD Gas & Dust installation IS2457-P-E__BExDTS110D_Gas-Dust_.pdf
IECEx certificate IECEx_KEM_10.0003X_Issue_2_BExS.pdf
IECEx certificate IECEx_KEM_10.0003_Issue_1.pdf
ATEX certificate DEKRA_99ATEX6312_Issue_4_BExS.pdf
ATEX certificate KEMA_99ATEX6312_Issue_3.pdf
INMETRO certificate 10-IEx-0009_Rev_1_BExS.pdf
Russian Ex certificate EAC_EU_C-GB.AA71.B.00273_20.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Maritime register 19.00195.278.pdf
Hong Kong Fire Dept. cert. HK_FSD_BEx.pdf
Declaration of Conformity DC-001_Issue_H_BExS__BExL.pdf
2D drawing (PDF) SK0257_Issue_A.pdf
2D drawing (DWG) SK0257_Issue_A.dwg
Hi-res product image 1 (TIFF) 1-22-090_BExTS110D.tif
Lo-res product image 1 (JPG) 1-22-090_BExTS110D.jpg

Features

  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Telephone line ringing voltage switches power
    (115vac or 230vac) to enable sounder to operate.

Specification

Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
Effective range: 100m/328ft @ 1KHz
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free
LM6 Aluminium
Enclosure finish: Chromate & powder coated – anti-corrosion.
Colour: RAL3000 Red (others available on request)
BExTS110 flare: High impact UL94 V0
& 5VA FR ABS (Red)
|BExDTS110 flare:
Anti-Static High impact ABS (Black)
Cable entries: Dual M20 ISO (one stopping plug included)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Weight : 3.20kg/7.04Ibs

Current Consumption

Version: Voltage: Current:
115V ac 50Hz/60Hz +/-10% 110mA
230V ac 50Hz/60Hz +/-10% 56mA
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Part Code: Classification:
BExTS110D** ATEX / IECEx:
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
GOST-R:
1ExdIICT4 Ta. -50° to +55°C
BExDTS110D** ATEX / IECEx:
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
II 2D Ex tD A21 IP67 T115
based on a max. Ta. of 70°C
GOST-R:
1ExdIICT4 Ta. -50° to +55°C T100°C
DIP A21 Ta T4
** = Voltage reference:
Options: 115AC, 230AC

Approvals

  • ATEX certificate: KEMA 99ATEX6312,

    EN 60079-0 : 2006, EN 60079-1 : 2007,

    EN 61241-0 : 2006, EN 61241-1 : 2004
  • IECEx certificate: IECEx KEM 10.0003,

    IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),

    IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
  • GOST-R certificate: POCC GB.JB05.B03365
  • Safety-integrity suitability: SIL1
  • Inmetro certificate: 10-IEx-0009

Tone Table

Stage 1 WAV file Frequency Description.
T 1 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV Continuous 1000Hz Toxic Gas Alarm
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV Alternating 800/1000Hz at 0.25s intervals
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV Sweeping 800/1000 at 1Hz
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV Continuous at 2400Hz
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV Sweeping 2400/2900Hz at 7Hz
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV Sweeping 2400/2900Hz at 1Hz
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV Siren 500/1200/500Hz at 0.3Hz
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV Sawtooth 1200/500Hz at 1Hz
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV Alternating 2400/2900Hz at 2Hz
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV Intermittent 1000Hz at 0.5Hz General alarm
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV Alternating 800/1000Hz at 0.875Hz
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV Intermittent 2400Hz at 1Hz
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV Intermittent 800Hz 0.25s on 1s off
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV Continuous at 800Hz
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV Intermittent 660Hz 150mS on, 150mS off
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV Alternating 544Hz (100mS)/440Hz(400mS)
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV Intermittent 660Hz 1.8s on, 1.8s off
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV Continuous 660Hz
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV Alternating 554/440Hz at 1Hz
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV Intermittent 554Hz at 0.875Hz
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz pulsing at 2Hz
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV Sweeping 800/1000Hz at 50Hz
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV Sweeping 2400/2900Hz at 50Hz
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Simulated bell sound
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV Continuous 440Hz
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV Sweeping 800/1000Hz at 7Hz
T 30 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz repeating 0.625s on, 0.625s off Australian alert signal
T 31 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz at 1 Hz Prepare to Abandon Platform
T 32 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz
Country specific or custom tone configurations and alarm frequencies are available upon request.
