BExL15/BExDL15 PA Loudspeakers 15W 1-22-120

Product image

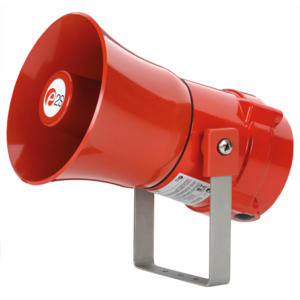

The flameproof BExL15 PA loudspeakers are suitable for Zone 1 & Zone 2 applications and the BExDL15 sounders also for Zone 21 & 22.
Request a quote for this product
There are no options for this product.
Part Number:
BExL15
Request Price or enquire about this product
Enquire about
PA Loudspeakers 15W

Description

The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is
phosphated and powder coated.

The re-entrant flare horns are high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas
containing in & out terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de).

An independent test report is available on request, or online, detailing the performance of the BEx loudspeaker range.

Downloads

Datasheet Datasheet.pdf
Ex d Gas installation IS2423-P-G__BExL25D_L15D_Gas_Multilingual_.pdf
Ex d & Ex tD Gas & Dust installation IS2453-P-E__BExDL25_15D_Gas-Dust_.pdf
Ex de Gas installation IS2424-P-G__BExL25E_15E_Gas_.pdf
Ex de & Ex tD Gas & Dust installation IS2454-P-E__BExDL25_15E_Gas-Dust_.pdf
IECEx certificate IECEx_KEM_10.0003X_Issue_2_BExS.pdf
IECEx certificate IECEx_KEM_10.0003_Issue_1.pdf
ATEX certificate DEKRA_99ATEX6312_Issue_4_BExS.pdf
ATEX certificate KEMA_99ATEX6312_Issue_3.pdf
INMETRO certificate 10-IEx-0009_Rev_1_BExS.pdf
Russian Ex certificate EAC_EU_C-GB.AA71.B.00273_20.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00195.278.pdf
Hong Kong Fire Dept. cert. HK_FSD_BEx.pdf
Declaration of Conformity DC-001_Issue_N_BExS__BExL.pdf
2D drawing (PDF) SK0112_Issue_C.pdf
2D drawing (PDF) SK0113_Issue_B.pdf
2D drawing (DWG) SK0112_Issue_C.dwg
2D drawing (DWG) SK0113_Issue_B.dwg
Hi-res product image 1 (TIFF) 1-22-120_BExL15D.tif
Lo-res product image 1 (JPG) 1-22-120_BExL15D.jpg

Features

  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • IN & OUT terminals (Ex de version only).

Specification

SPL: 102dB +/-3dB @ 1w @ 1m (Pink)
113dB +/-3dB @ 15w @ 1m (Rated)
Rated power: 15 Watts RMS
70v line tappings: 15w / 7.5w / 3w / 1w
(z=336.67 Ohms /653.33 Ohms /
1.6k Ohms / 4.9k Ohms)
100v line tappings: 15w / 7.5w / 3w / 1w
(z=666.87 Ohms /1.34k Ohms /
3.34k Ohms / 10k Ohms)
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 120° @ 1kHz & 32° @ 4kHz
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer )
470µF Capacitor (Low impedance)
Ingress protection: L15D : IP66/67 L15E : IP66
Housing material: Marine grade copper free
LM6 Aluminium
Housing finish: Phosphated & powder coated finish – anti-corrosion.
Colour: RAL3000 Red
(others available on request)
BExL15 flare: High impact UL94 V0
& 5VA FR ABS (Red)
BExDL15 flare: Anti-Static High impact ABS (Black)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 to 2.5mm² cables.
Weight: 70/100V line: 3.45kg/7.59Ibs
Low imp.: 3.10kg/6.82Ibs

Part Codes

Part Code: C­­­lassification:
BExL15D** ATEX / IECEx:
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
GOST-R:
1ExdIICT4 Ta. -50° to +55°C
BExL15E** ATEX / IECEx:
II 2G Ex de IIB T4 Ta. -50° to +70°C
II 2G Ex de IIC T4 Ta. -50° to +55°C
GOST-R:
2ExdeIICT4 Ta. -50° to +55°C
BExDL15D** ATEX / IECEx:
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
II 2D Ex tD A21 IP67 T115
based on a max. Ta. of 70°C
GOST-R:
1ExdIICT4 Ta. -50° to +55°C T100°C
DIP A21 Ta T4
BExDL15E** ATEX / IECEx:
II 2G Ex de IIB T4 Ta. -50° to +70°C
II 2G Ex de IIC T4 Ta. -50° to +55°C
II 2D Ex tD A21 IP66 T115
based on a max. Ta. of 70°C
GOST-R:
2ExdeIICT4 Ta. -50° to +55°C
DIP A21 Ta T4
**** = type reference:
Options: 70V
100V
8R
16R
70V Line transformer
100V Line transformer
8 Ohm low impedance
16 Ohm low impedance
e.g: BExL15D100V

Approvals

  • ATEX certificate: KEMA 99ATEX6312,

    EN 60079-0 : 2006, EN 60079-1 : 2007,

    EN 60079-7 : 2003, EN 61241-0 : 2006,

    EN 61241-1 : 2004
  • IECEx certificate: IECEx KEM 10.0003,

    IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),

    IEC 60079-7 : 2001 (Ed3), IEC 61241-0 : 2004 (Ed1),

    IEC 61241-1 : 2004 (Ed1)
  • GOST-R certificate: POCC GB.JB05.B03365
  • Safety-integrity suitability: SIL1
  • Inmetro certificate: 10-IEx-0009
