BExCP3A-PB/BExCP3B-PB Push Button Call Point 1-24-080

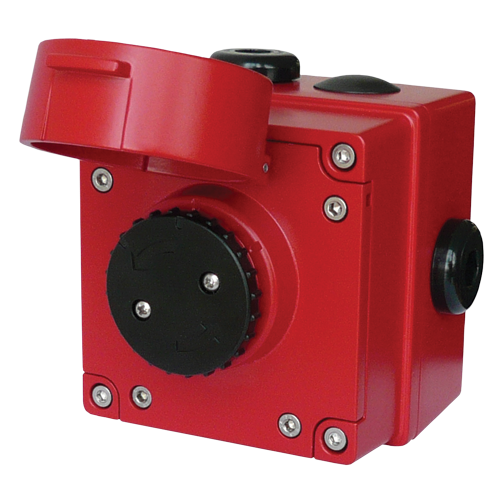

Product image
Product Image
The SIL 2 compliant BExCP3A-PB and BExCP3B-PB push button manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas – certified to ATEX and IECEx standards.
Request a quote for this product
Type
Terminals
Duty/Tag label
Enclosure Color
System Voltage (B type only)
E.O.L module (B type only)
Series module (B type only)
Part Number:
BExCP3
Request Price or enquire about this product
Enquire about
Push Button Call Point

Description

The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The product is user resettable by rotating the push button.
The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromate and powder coat finish.

Downloads

Datasheet Datasheet.pdf
A version installation D150-00-101-IS_2__BExCP3A-PB_.pdf
B version installation D150-00-151-IS_2__BExCP3B-PB_.pdf
IECEx certificate IECEx_SIR_09.0121X_Issue_4_BExCP3__GNExCP6.pdf
ATEX certificate Sira_09ATEX3286X_Issue_4_BExCP3__GNExCP6.pdf
INMETRO certificate IEx_10.0011X_-__BExCP3_.pdf
Russian Ex certificate __RU_C-GB.MH04.B.00048.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Declaration of Conformity DC-007_Issue_I_BExCP3.pdf
SIL2 Certificate T883-118_SIL2_MCP.pdf
2D drawing (PDF) SK0132_Issue_B.pdf
2D drawing (DWG) SK0132_Issue_B.DWG
Hi-res product image 1 (TIFF) 1-24-080_BExCP3-PB.tif
Hi-res product image 2 (TIFF) 1-24-080_BExCP3-PB_Closed.tif
Lo-res product image 1 (JPG) 1-24-080_BExCP3-PB.jpg
Lo-res product image 2 (JPG) 1-24-080_BExCP3-PB_Closed.jpg
Pipe Mount Drawing (PDF) D217-05-321_Issue_B_GNExCP6.pdf

Specification

BExCP3A-PB: II 2G Ex d e IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
BExCP3B-PB: II 2G Ex d e mb IIC T4 Gb
II 2D Ex t IIIC T70°C Db
IP66
Ambient: Ta = -40°C to +55°C [-40° to +131°F]
(+50°C for BExCP3B)
Ingress protection: IP66
Enclosure material: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromated & powder coated finish:anti-corrosion
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries
Stopping plugs: 2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals: 6 × 4.0mm² cables or or 8 × 2.5mm² DIN rail

Part Codes

Option: Code: Description:
Type: BExCP3A-PB
BExCP3B-PB
A type – no end of line devices
B type – choice of end of line devices
Terminals: ST
DR
ST: Standard
DR: DIN rail (only on BExCP3B type)
Duty label: NL
DL
No duty label
Duty label required – specify contents
Colour: RD
XX
Red enclosure colour
Other enclosure colour – contact sales
Voltage: 48V
24V
12V
6V
System voltage (only required for BExCP3B type)
E.O.L. Resistor: ExxxR Resistor value in Ohms e.g. E470R = 470 Ohm
(only required for BExCP3B type)
Series Resistor: SxxxR Resistor value in Ohms e.g. S1K5R = 1.5K Ohm
(only required for BExCP3B type)
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0002-A2
SP65-0002-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • ATEX certificate: Sira 09ATEX3286X,
    IEC 60079-0:2007 Ed 5, EN 60079-1:2004,
    EN 60079-7:2007, IEC 60079-18:2009 Ed 3,
    EN 61241-1:2004
  • IECEx certificate: IECEx SIR 09.0121X,
    IEC 60079-0:2007-10 Edition: 5,
    IEC 60079-1:2003 Edition: 5,
    IEC 60079-18:2009 Edition: 3,
    IEC 60079-7:2006-07 Edition: 4,
    IEC 61241-1:2004 Edition: 1
  • INMETRO certificate: 10-IEx-0011X
  • GOST-R certificate: POCC GB.JB05.B03365
  • SIL 2 certified to IEC 61508 (2010)

Options

  • Alternative housing colours are available to meet specific requirements.
  • DIN rail mounted terminal blocks: 8 × 2.5mm²
  • Metalised Polyester “Duty” label.
  • Series and/or End of Line resistors.

Versions

Version: Voltage: Switch: Terminals: Cable entries:
BExCP3A-PB 250V ac Max.
50V dc Max.
5.0A Max.
1.0A Max.
6 × 4mm² 2 x M20 Top/Bottom
1 x M20 Left/Right
Coding: II 2G Ex d e IIC T6 Gb Ta = -40°C to +55°C
II 2D Ex t IIIC T60°C Db IP66
Version: Nom./Max.
Voltage:
Switch: Terminals: Cable entries: Min. EOL /
Series Value:­
BExCP3B-PB 48V/56V
24V/28V
12V/15V
6V/9V
56V dc Max.
Rating:
<50V: 1.0A
>50V: 0.75A
6 × 4mm² or
8 × 2.5mm²
DIN rail
2 x M20
Top/Bottom
1 x M20
Left/Right
1K8
470R
120R
47R
Coding: II 2G Ex d e mb IIC T4 Gb Ta = -40°C to +50°C
II 2D Ex t IIIC T70°C Db IP66
