MCBX05X05 Dual Xenon Strobe Beacon 2-13-090

Product image
Product Image

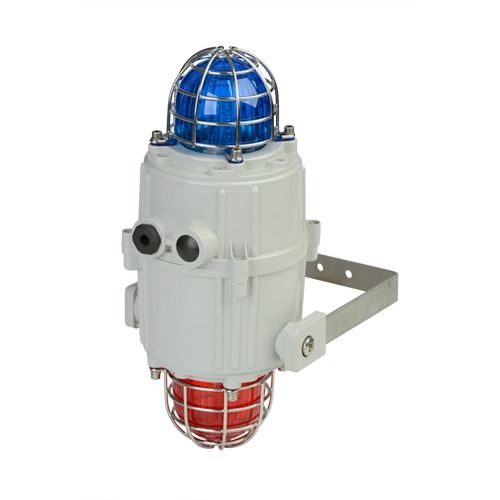

The MCBX05X05 is a dual 5 Joule Xenon strobe beacon featuring a robust, fire retardant, IP66 & IP67 Type 4/4X/13 enclosure; suitable for harsh environments. The two Xenon beacon circuits can be connected to operate from the same power source or individually.
Request a quote for this product
Voltage
Cable Entry Type
Stopping plug/adaptor material
Bracket & Guard
Version
Enclosure Color
First Lens Color
Second Lens Color
Part Number:
MCBX05X05
Request Price or enquire about this product
Enquire about
Dual Xenon Strobe Beacon

Description

The 1 Hz flash rate is automatically synchronised between the beacons or can be set to ‘flip-flop’ mode to create an alternate flash. The ‘M’ series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets and has been third party tested to IP66/67.

Downloads

Datasheet Datasheet.pdf
Installation Manual D207-01-601-IS_Issue_2__MCBX05X05_.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Ingress Protection certificate CoTC_104520_Issue_2_M.pdf
Declaration of Conformity DC-028_Issue_J_Marine.pdf
2D drawing (PDF) D207-05-601_Issue_A.pdf
2D drawing (DWG) D207-05-601_Issue_A.dwg
3D drawing (STEP) D207-05-601-3D_Issue_A.STEP
Wiring Schematic AC voltage D207-06-205_Issue_A__MBX_MCBX-AC_.pdf
Wiring Schematic DC voltage D207-06-201_Issue_A__MBX_MCBX-DC_.pdf

Features

  • Ingress protection IP66/67 Type 4/4X/13
  • Automatic synchronisation on multi-beacon systems
  • Beacons can be set to flip-flop, alternating flash mode
  • Xenon tubes mechanically secured against shock & vibration
  • Glass lenses & 316 (A4) Stainless steel guard
  • UV stable PC, field replaceable, colour lens filter
  • Large termination area
  • Dual M20 or 1/2"NPT cable entries – adaptors available
  • Stopping plug included
  • 316 (A4) Stainless steel mounting bracket
  • Ratchet adjustable ‘U’ bracket for 360° positioning
  • Duplicate cable terminations
  • Reverse polarity diode fitted
  • Continuously rated
  • Xenon eff. Intensity: 120 cd per beacon
  • Xenon peak candela light intensity: 39,463 cd per beacon

Specification

Energy: 2 × 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 2 × 500,000 cd – calculated from energy (J)
Eff. Intensity cd: 2 × 250 cd – calculated from energy (J)
Peak Candela: 2 × 39,463 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 2 × 120 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67 Type 4/4X/13
Enclosure material: High impact UL94 V0 & 5VA FR ABS
Enclosure colour: Grey (RAL7038) or Red (RAL3000
Dome material: Borosilicate glass
Lens colour filter: Field replaceable UV stable PC
Lens guard: 316 (A4) Stainless steel
Cable entries: 2 x M20; 1 x M20 & 1 × 1/2"NPT; 2 × 1/2"NPT
supplied with blanking plug
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Line monitoring: Diode polarized for use in supervised circuits
Operating temp: -40 to +66°C [-40° to +151°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 95% at 20°C [68°F]
Weight: 4.84kg/10.67Ibs
*Candela measurements representative of performance with clear lens at optimum voltage

Current Consumption

Product Version: Nominal Voltage: Voltage Range: Current per beacon:
DC012 12V dc 10-14V dc 750mA
DC024 24V dc 20-28V dc 270mA
DC048 48Vdc 42-54V dc 180mA
AC115 115Vac ±10% 50/60Hz 140mA
AC230 230V ac ±10% 50/60Hz 55mA

Part Codes

Variable: Identifier: Description:
Product type: MCBX05X05 Dual Xenon Strobe Beacon
Voltage: AC115
AC230
DC012
DC024
DC048
115V ac 50/60Hz
230V ac 50/60Hz
12V dc (10-14V dc)
24V dc (20-28Vdc)
48V dc (42-54V dc)
Cable entries: [e] A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5 (Default)
½” NPT & ½” NPT
Stopping plug material: [m] N Nylon
Bracket & Guard: [s] 1
3
316 (A4) Stainless Steel
316 (A4) Stainless Steel with Equipment tag
Version: [v] A1 CE, EAC & Russian Maritime
Enclosure: [x] G
R
Grey (RAL7038)
Red (RAL3000)
Lens colour 1: [y] A, B, C
G, M, R, Y
Amber, Blue, Clear
Green, Magenta, Red, Yellow
Lens colour 2: [y] A, B, C
G, M, R, Y
Amber, Blue, Clear
Green, Magenta, Red, Yellow
Accessories:
SP65-0001-A4
SP65-0003-A4

Pole Mount Bracket Kit 2" St/St 316 (A4)
Sunshade – St/St 316 (A4)

Approvals

  • EAC compliant: RU D-GB.GA05.B.12595-20
  • Russian Maritime Register of Shipping
    Cert: No. 19.00193.278
