L101H L.E.D. Beacon 2-14-010

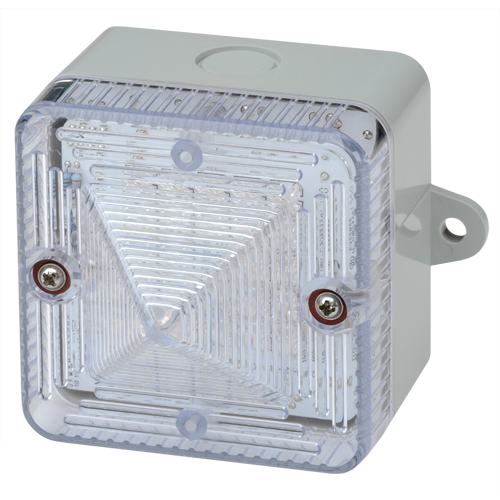

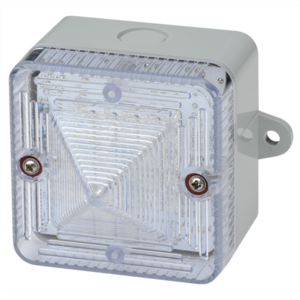

Product image
Product Image
Product Image
The L101H is a compact, robust L.E.D array beacon ideal for all general signalling applications including status indication, security and process control.
Request a quote for this product
Voltage
Back box type
Enclosure Color
LED Color
Version
Part Number:
L101H
Request Price or enquire about this product
Enquire about
L.E.D. Beacon

Description

The array of 24 Superflux type high output L.E.D’s generates over 120 candela of light output and can be user set to either steady of flashing mode. Available in cULs approved version for general signalling use.

Downloads

Datasheet Datasheet.pdf
Installation Manual L101H_Inst__D169-00-001-D_.pdf
UL certifcate of compliance UL_CoC_-_20111209-E216937_L101__L101H.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Ingress Protection certificate 58D22760F_IP66_certificate_-_L101.pdf
Declaration of Conformity DC-025_Issue_D_L101H.pdf
2D drawing (PDF) SK0263_Issue_A.pdf
2D drawing (DWG) SK0263_Issue_A.dwg
3D drawing (IGS) SK0263-L101_Standard-3D_Issue_A.IGS
3D drawing (IGS) SK0263-L101_A100-3D_Issue_A.IGS
3D drawing (IGS) SK0263-L101_Sonora-3D_Issue_A.IGS
3D drawing (IGS) SK0263-L101_Multipurpose-3D_Issue_A.IGS
3D drawing (STEP) SK0263-L101_Standard-3D_Issue_A.STEP
3D drawing (STEP) SK0263-L101_A100-3D_Issue_A.STEP
3D drawing (STEP) SK0263-L101_Sonora-3D_Issue_A.STEP
3D drawing (STEP) SK0263-L101_Multipurpose-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-14-010_L101H-A-G-C.tif
Hi-res product image 2 (TIFF) 2-14-010_L101H-B-R-C.tif
Hi-res product image 3 (TIFF) 2-14-010_L101H-B-W-C.tif
Lo-res product image 1 (JPG) 2-14-010_L101H-A-G-C.jpg
Lo-res product image 2 (JPG) 2-14-010_L101H-B-R-C.jpg
Lo-res product image 3 (JPG) 2-14-010_L101H-B-W-C.jpg

Features

  • Back boxes available with and without mounting lugs
  • Tropicalisation available on request
  • Can be stacked to create multi-signal units.
  • Can be combined with AlertAlarm & Sonora audible signals

Specification

Light source: High intensity L.E.D. array.
24 x Superflux type high ouput L.E.D’s
Options: Steady or 2Hz flash mode (on board selection)
Peak/Effective Intensity cd: Green L.E.D: 176cd – measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm² cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light levels.
General:
Ingress Protection: IP66
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red, RAL7038
Grey and White
Lens material: PC
Fixings: Stainless Steel
Operating temp: -25° to +55°C [-13 to +131°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.20kg/0.44Ibs

Part Codes

Version: Part code:
10-30Vdc L101HDC024[b][x]/[y]
90-260V ac/dc L101HAC230[b][x]/[y]

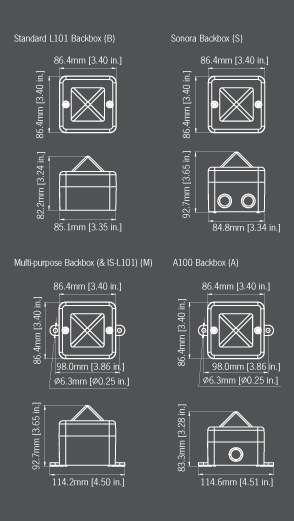

[b] = Back box type: B: standard L101 type
M: Multi-purpose type
A: A100 type
S: Sonora type
[x] = Housing colour: G: Grey, R: Red, W: White
[y] = Lens colour: A: Amber, B: Blue. C: Clear,
G: Green, M: Magenta R: Red, Y: Yellow
Suffix part number with ‘-UL’ for UL approved version
B, A and M back box options only – see product outline drawings for full details
UL version approved for general signaling (non fire alarm) use.

Approvals

  • UL & cULs approved: General signalling use.
  • GOST-R certificate: POCC GB.JB05.H00144.

Current

Version: Voltage: Current mA:
DC 10-30V dc 155mA (@ 24V dc)
AC/DC 90-260V ac/dc 50/60Hz 35mA (@ 230V ac)
