B400SLF Status Beacon [Filament Lamp] 2-15-050

Product image
Product Image
Product Image
The B400 series comprises Xenon strobe beacons, permanent filament bulb or halogen beacon, blinking filament bulb or halogen beacon, rotating halogen beacon and a multi-function LED array beacon.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
B400SLF
Request Price or enquire about this product
Enquire about
Status Beacon [Filament Lamp]

Description

The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

Downloads

Datasheet Datasheet.pdf
Installation Manual B400SLF_D120-00-101-IS_Iss_B.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-026-Issue_B_Spectra.pdf
2D drawing (PDF) SK0012_Issue_B.pdf
2D drawing (DWG) SK0012_Issue_B.dwg
3D drawing (STEP) SK0012_Issue_A.STEP
2D drawing (PDF) SK0050_Issue_B_B400RAB001_Right_angle_bracket_for_wall_mounting.pdf
2D drawing (PDF) SK0269_Issue_B_B400TMA001_Pole_mounting_assembly_140mm.pdf
Hi-res product image 1 (TIFF) 2-15-050_B400SLF-A.tif
Hi-res product image 2 (TIFF) 2-15-050_B400SLF-B.tif
Hi-res product image 3 (TIFF) 2-15-050_B400SLF-C.tif
Lo-res product image 1 (JPG) 2-15-050_B400SLF-A.jpg
Lo-res product image 2 (JPG) 2-15-050_B400SLF-B.jpg
Lo-res product image 3 (JPG) 2-15-050_B400SLF-C.jpg

Features

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.
  • Multiple cable entries.

Specification

Light source: Filament lamp E14
Light output: 40W
Function: Permanent
Candela: 27 cd* (peak/effective intensity)
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Lens type: Prismatic (standard) or plain
Mounting: Surface mount (right angle or pole mount accessories available)
Entries: 1 × 5-7mm push through grommet
2 x M20 cable entry

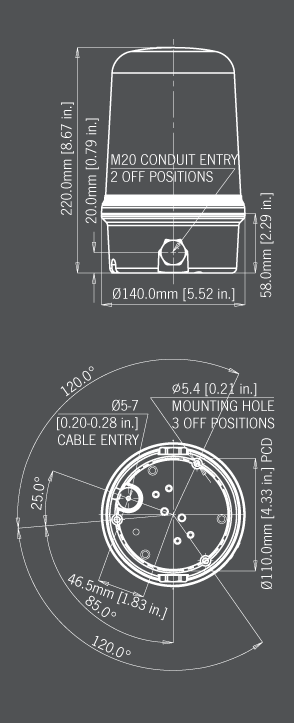

Dimensions: ø140 x 220mm
Ingress protection: IP65
Housing material: High impact UL94 V0 (f1) PC
Lens material: High impact UL94 V0 (f1) PC
Terminals: 1.5 mm² flying lead assembly
Operating temp: -25 to +50°C
Storage temp: -40 to +70°C
Relative humidity: 90% at 20°C.
Weight: 535g
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Current mA:
12V dc 3.1A
24V dc 2.05A
115V ac 50/60Hz 321mA
230V ac 50/60Hz 178mA

Part Codes

Version: Wattage: Part code:
12-250V 40W B400SLF250B/[x]
[x] = Lens colour: A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow
Note: Filament lamp not included – must be ordered separately.

Accessories

Accessory Part Code: Description: Model
B400RAB001 Right angle bracket for wall mounting B400
B400TMA001 Pole mounting assembly (140mm) B400

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144.

Filament bulb/lamp part codes

Voltage: Wattage: Type: Part code:
12V dc 40W E14 BG351240E
24V dc 40W E14 BG352440E
115V ac 40W E14 B457513040E
230V ac 40W E14 B457523040E
