MA121F Alarm Horn Sounder IP66/67 2-21-200

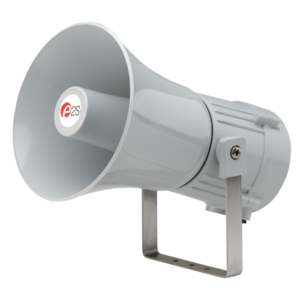

Product image
Product Image

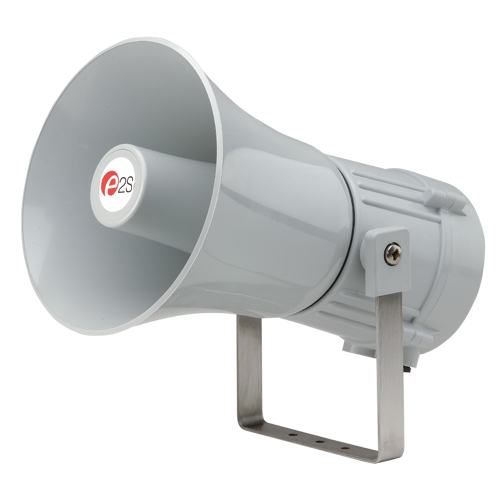

Product Image
The MA121F is a very high output, 126dB(A) alarm sounder. With a robust, fire retardant, IP66 & IP67 Type 4/4X/13 enclosure.
Request a quote for this product
Horn Type
Voltage
Cable Entry Type
Stopping plug/adaptor material
Bracket Material
Version
Enclosure Color
Part Number:
MA121
Request Price or enquire about this product
Enquire about
Alarm Horn Sounder IP66/67

Description

The ‘M’ series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets and has been third party tested to IP66/67.

Downloads

Datasheet Datasheet.pdf
Installation Manual D207-00-001-IS_Issue_2_MA112-121_.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Ingress Protection certificate M_Range_IP_Rating_Report.pdf
Declaration of Conformity DC-028_Issue_H_M.pdf

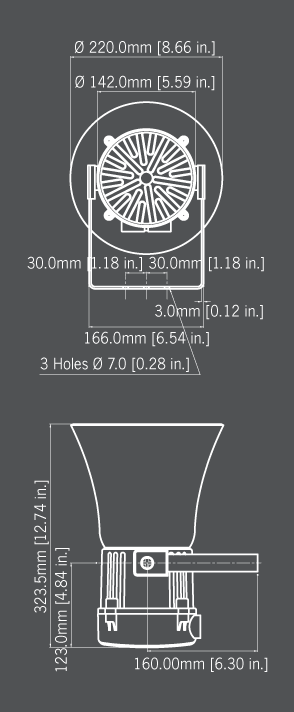

2D drawing (PDF) SK0122_Issue_B.pdf
2D drawing (DWG) SK0122_Issue_B.dwg
3D drawing (IGS) SK0112-3D_Issue_A.IGS
3D drawing (STEP) SK0122-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-21-200_MA121.tif
Lo-res product image 1 (JPG) 2-21-200_MA121.jpg

Features

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Large termination area.
  • Stainless steel fixings.
  • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.
  • ‘Programmable’ version available:
    45 alarm tones
    4 remotely selectable stages
    Any tone can be assigned to any stage
    User configurable continuous frequency tone

Specification

Maximum output: 126dB(A) @ 1 metre [117dB(A) @ 10ft/3m]
Nominal output: 121dB(A) @ 1m +/- 3dB – Tone 2 [112dB(A) @ 10ft/3m]
No. of tones: 45 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 121dB(A);
Min. 112dB(A) – Tone 2
Effective range: 300m/984ft @ 1KHz
Voltages DC: 24V dc (10-30V dc);
48V dc (35-60V dc)
[DC units can use 24V ac for single stage applications.]
Voltages AC: 24V ac; 115V ac; 230V ac
Stage switching: Negative or positive
Reverse polarity stage switching on DC units.
Ingress protection: IP66 & IP67 (Third party tested)
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Grey (RAL7038)
Cable entries: 2 x M20 supplied with
1 blanking plug
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 2.50kg/5.5Ibs AC:3.00kg/6.6Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Part Code: Ident: Description:
Product type: MA121 Alarm horn sounder
Flare type: F Flare re-entrant horn
Voltage: AC115
AC230
AC024
DC024
DC048
115V ac 50/60Hz
230V ac 50/60Hz
24V ac 50/60Hz
24V dc (10-30Vdc)
48V dc (42-54V dc)
Cable entries: A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: N Nylon
Bracket: 1
2
304 (A2) Stainless Steel
316 (A4) Stainless Steel
Approvals: A1 CE, EAC, RMRS
Enclosure: R
G
Red (RAL 3000)
Grey (RAL7038)

Alarm sounder

Version: Voltage: Current :
24V dc 10-30V dc 950mA*
48V dc 35-60V dc 600mA*
24V ac 50/60Hz +/-10% 1000mA
115V ac 50/60Hz +/-10% 240mA
230V ac 50/60Hz +/-10% 120mA
* current at nominal voltage on Tone 2

Approvals

  • EAC approved.
    Cert: RU D-GB.AL16.V.11083
  • Russian Maritime Register of Shipping
    Cert: No. 14.02758.315

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3
T 1 /system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV 340 Hz Continuous T 2 T 5
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV 800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV 2400Hz Continuous T 3 T 20
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV 2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV 2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 15 T 2
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV 2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV 1000Hz @ 1Hz Intermittent T 2 T 5
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV 800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV 2400Hz @ 1Hz Intermittent T 15 T 5
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV 800Hz Continuous T 2 T 5
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV 660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 2 T 27
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV 660Hz Continuous T 2 T 5
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV 554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV 544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz @ 2Hz Intermittent T 6 T 5
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV 800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 2 T 15
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV 554Hz Continuous T 26 T 5
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV 440Hz Continuous T 2 T 5
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30 /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV 300Hz Continuous T 2 T 5
T 31 /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV 660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32 /system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV Two T chime. T 26 T 15
T 33 /system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV 745Hz @ 1Hz Intermittent T 2 T 5
T 34 /system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV 1000 & 2000Hz @ 0.5 sec Alternating – Singapore T 38 T 45
T 35 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert T 36 T 5
T 36 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 35 T 5
T 37 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas T 9 T 45
T 38 /system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV 2000Hz Continuous T 34 T 45
T 39 /system/1/assets/files/000/000/401/401/e3954ab10/original/TF039.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 23 T 17
T 40 /system/1/assets/files/000/000/403/403/88b145b84/original/TF040.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 31 T 27
T 41 /system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV Motor Siren – slow rise to 1200 Hz T 2 T 5
T 42 /system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV Motor Siren – slow rise to 800 Hz T 2 T 5
T 43 /system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV 1200 Hz Continuous T 2 T 5
T 44 /system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV Motor Siren – slow rise to 2400 Hz T 2 T 5
T 45 /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV 1KHz 1s on, 1s off Intermittent – PFEER Gen. Alarm T 38 T 34
Country specific or custom tone configurations and alarm frequencies are available upon request.
