E2S22D ø22mm Buzzers & Pilot Lights 2-21-210

Product image
Product Image
Product Image

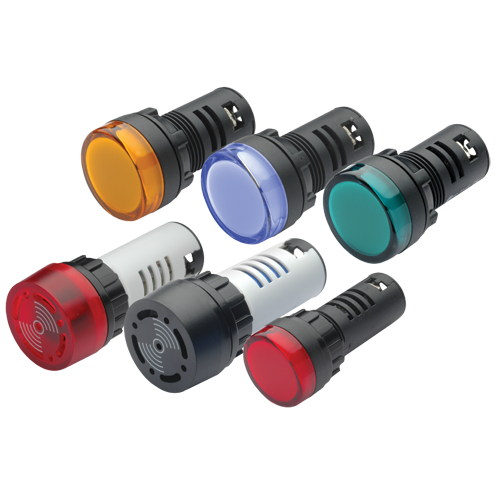

The E2S-22D range includes buzzers, combination units and pilot lights featuring super bright multichip L.E.Ds.
Request a quote for this product
Type
Voltage
LED Color
Part Number:
E2S22
Request Price or enquire about this product
Enquire about
ø22mm Buzzers & Pilot Lights

Description

Ingress protection to IP65, low current consumption and unsurpassed reliability under extreme conditions are all standard features of the E2S-22D range. The range utilises screw terminals with wire guards for ease of installation and the ability to daisy chain the lights into an array.

Downloads

Datasheet Datasheet.pdf
Datasheet PDF 2.2.1-v10a_E2S22D.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Declaration of Conformity DC-035-Issue_B_E2S22D__E2S28D.pdf
Hi-res product image 1 (TIFF) 2-21-210_SG.tif
Lo-res product image 1 (JPG) 2-21-210_SG.png

Buzzers and Flashing Lights

Buzzer: 80dB @ 10cm Current: 15-30mA
E2S22DBZ24V 24V dc/ac Buzzer
E2S22DBZ48V 48V dc/ac Buzzer
E2S22DBZ130V 110-130V ac/dc Buzzer
E2S22DBZ230V 230V ac Buzzer
Flashing Pilot Light: Flash rate: 2Hz Current: 15-30mA
E2S22DFS24V 24V ac/dc 2x LED Red
E2S22DFS48V 48V ac/dc 2x LED Red
E2S22DFS130V 110-130V ac/dc 2x LED Red
E2S22DFS230V 230V ac 2x LED Red
Combination: 80dB @ 10cm With Red LED
E2S22DBF24V 24V ac/dc Buzzer & 2x LED Red Io: 20-80mA
E2S22DBF48V 48V ac/dc Buzzer & 2x LED Red Io: 20-80mA
E2S22DBF130V 110-130V ac/dc Buzzer & 2x LED Red Io: 18-30mA
E2S22DBF230V 230V ac Buzzer & 2x LED Red Io: 18-30mA
E2S22DMT Mounting Tool for E2S-22D LED Pilot Lights
E2S22DLBHF25X18 E2S-22D Label holder 25×18mm
E2S22DLBHF25X10 E2S-22D Label holder 25×10mm

Current

Buzzer: Flashing pilot light: Combination: Pilot lights:
E2S22DBZ
80 db at 10cm
Pulsed tone
Current : 15-30mA
E2S22DFS
Flash Rate: 2Hz
Current : 15-30mA
E2S22DBF
80 db at 10 cm
Pulsed tone
Current : 18-80mA
E2S22D
Low voltage DC/AC:
Current : 20-80mA
High voltage DC/AC:
Current : 18-25mA

Pilot Lights

Pilot Light: Red Description:
E2S22D12VR 12V ac/dc <80mA 12-chips Super-Bright
E2S22D24VR 24V ac/dc <80mA 12-chips Super-Bright
E2S22D48VR 48V ac/dc <20mA 12-chips Super-Bright
E2S22D130VR 110-130V ac/dc 25mA Max 12-chips Super-Bright
E2S22D230VR 230V ac 25mA Max 12-chips Super-Bright
Pilot Light: Amber Description:
E2S22D12VA 12V ac/dc <80mA 12-chips Super-Bright
E2S22D24VA 24V ac/dc <80mA 12-chips Super-Bright
E2S22D48VA 48V ac/dc <20mA 12-chips Super-Bright
E2S22D130VA 110-130V ac/dc 25mA Max 12-chips Super-Bright
E2S22D230VA 230V ac 25mA Max 12-chips Super-Bright
Pilot Light: Green Description:
E2S22D12VG 12V ac/dc <20mA 1-chip InGAN Ultra Super-Bright
E2S22D24VG 24V ac/dc <20mA 1-chip InGAN Ultra Super-Bright
E2S22D48VG 48V ac/dc <20mA 1-chip InGAN Ultra Super-Bright
E2S22D130VG 110-130V ac/dc 25mA Max 1-chip InGAN Ultra Super-Bright
E2S22D230VG 230V ac 25mA Max 1-chip InGAN Ultra Super-Bright
Pilot Light: Blue Description:
E2S22D12VB 12V ac/dc <20mA 2-chip InGAN Ultra Super-Bright
E2S22D24VB 24V ac/dc <20mA 2-chip InGAN Ultra Super-Bright
E2S22D48VB 48V ac/dc <20mA 2-chip InGAN Ultra Super-Bright
E2S22D130VB 110-130V ac/dc 25mA Max 2-chip InGAN Ultra Super-Bright
E2S22D230VB 230V ac 25mA Max 2-chip InGAN Ultra Super-Bright
Pilot Light: White Description:
E2S22D12VW 12V ac/dc <20mA 1-chip InGAN Ultra Super-Bright
E2S22D24VW 24V ac/dc <20mA 1-chip InGAN Ultra Super-Bright
E2S22D48VW 48V ac/dc <20mA 1-chip InGAN Ultra Super-Bright
E2S22D130VW 110-130V ac/dc 25mA Max 1-chip InGAN Ultra Super-Bright
E2S22D230VW 230V ac 25mA Max 1-chip InGAN Ultra Super-Bright
