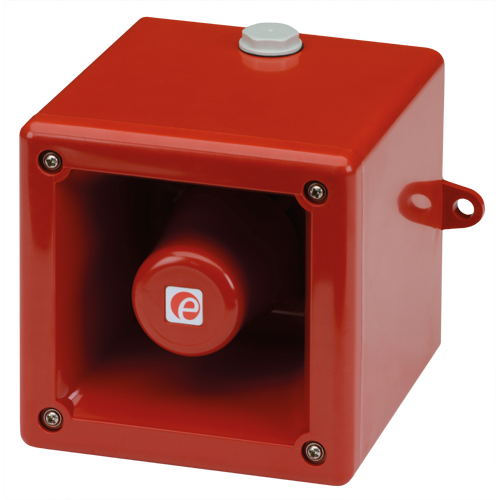

The A105NAX Appello user recordable unit enables the recording of any type of content such as voice or music that can be played back at CD quality output at SPL’s of up to 102dB(A) at 1 metre. This content can be reproduced repeatedly, alternating with or without one of the built-in 45 alarm tones. The alarm tone notification has an output of up to 110dB(A) at 1 metre.
For multiple unit installations the recording process is only required once to create a master unit which can then be used to program all other A105NAX units on the system, guaranteeing synchronisation during playback, using the supplied ‘Synch’ cable.
| Voice content output: | 101dB(A) @ 1 metre [92dB(A) @ 10ft/3m] |
| Music content output: | 102dB(A) @ 1 metre [93dB(A) @ 10ft/3m] |
| Alarm tone output: | 110dB(A) @ 1 metre [101dB(A) @ 10ft/3m] |
| No. of alarm tones: | 45 (UKOOA/PFEER compliant) |
| No. of messages: | 4 (30 seconds each) |
| Volume controls: | Independent controls for user recorded content and built-in alarm tones. |
| Effective range: | 60m/197ft @ 1KHz |
| Voltages DC: | 24vdc (10-30vdc) |
| Voltages AC: | 90-260vac 50/60Hz |
| Ingress protection: | Type 4 / 4X / 3R / 13, IP66 |
| Rating: | Continuous |
| Enclosure material: | UL94V0 & 5VA FR ABS |
| Enclosure colour: | RAL3000 Red, RAL7038 Grey or White |
| Fixings: | Stainless Steel |
| Cable entries: | 2 x M20 clearance gland entries. Custom configurations also available. |
| Terminals: | 0.5 to 2.5mm² |
| Operating temp: | -25° to +55°C [-13° to +131°F] |
| Storage temp: | -40° to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 0.80Kg/1.76Ibs AC: 1.00kg/2.2Ibs |
| Version: | Voltage: | Current: |
|---|---|---|
| 24V dc | 10-30V dc | 256mA* |
| 230V ac | 90-260V ac 50/60Hz | 124mA* |
| * current at nominal voltage on Tone 1 | ||
| Variable: | Identifier: | Description: |
|---|---|---|
| Product type: | A105NAX | Appello sounder |
| Voltage: | DC024 AC230 |
10-30Vdc 90-260Vac 50/60Hz |
| Back box/cable entries: [e] | A B |
Back box with mounting lugs – 2 x M20x1.5mm entries Back box with mounting lugs – 2 × 1/2"NPT (adaptors) |
| Stopping plug material: [m] | A | ABS |
| Equip. tag/Duty label: [s] | 0 1 2 |
No equip. tag or Duty label 316 (A4) St/St Equip. tag/Duty label Metalised Polyester Equip. tag/Duty label |
| Product version: [v] |
A | UL/cUL, CE, UKCA, EAC |
| Product option: [o] |
1 X Z |
Standard product Custom configuration – contact E2S Custom alarm tone software – contact E2S |
| Enclosure: [x] | R G |
Red Grey |
| Stage 1 | WAV file | Frequency Description | Stg 2 | Stg 3 | Stg 4 |
|---|---|---|---|---|---|
| T 1 | /system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV | 340 Hz Continuous | T 2 | T 5 | T 29 |
| T 2 | /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV | 800/1000Hz @ 0.25 sec Alternating | T 17 | T 5 | T 29 |
| T 3 | /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV | 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop | T 2 | T 5 | T 29 |
| T 4 | /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV | 800/1000Hz @ 1Hz Sweeping | T 6 | T 5 | T 29 |
| T 5 | /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV | 2400Hz Continuous | T 3 | T 20 | T 29 |
| T 6 | /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV | 2400/2900Hz @ 7Hz Sweeping | T 7 | T 5 | T 29 |
| T 7 | /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV | 2400/2900Hz @ 1Hz Sweeping | T 10 | T 5 | T 29 |
| T 8 | /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV | 500/1200/500Hz @ 0.3Hz Sweeping | T 2 | T 5 | T 29 |
| T 9 | /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV | 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. | T 15 | T 2 | T 29 |
| T 10 | /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV | 2400/2900Hz @ 2Hz Alternating | T 7 | T 5 | T 29 |
| T 11 | /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV | 1000Hz @ 1Hz Intermittent | T 2 | T 5 | T 29 |
| T 12 | /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV | 800/1000Hz @ 0.875Hz Alternating | T 4 | T 5 | T 29 |
| T 13 | /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV | 2400Hz @ 1Hz Intermittent | T 15 | T 5 | T 29 |
| T 14 | /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV | 800Hz 0.25sec on, 1 sec off Intermittent | T 4 | T 5 | T 29 |
| T 15 | /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV | 800Hz Continuous | T 2 | T 5 | T 29 |
| T 16 | /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV | 660Hz 150mS on, 150mS off Intermittent | T 18 | T 5 | T 29 |
| T 17 | /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV | 544Hz (100mS)/440Hz (400mS) – NF S 32-001 | T 2 | T 27 | T 29 |
| T 18 | /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV | 660Hz 1.8sec on, 1.8sec off Intermittent | T 2 | T 5 | T 29 |
| T 19 | /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV | 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 | T 2 | T 5 | T 29 |
| T 20 | /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV | 660Hz Continuous | T 2 | T 5 | T 29 |
| T 21 | /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV | 554Hz/440Hz @ 1Hz Alternating | T 2 | T 5 | T 29 |
| T 22 | /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV | 544Hz @ 0.875 sec. Intermittent | T 2 | T 5 | T 29 |
| T 23 | /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV | 800Hz @ 2Hz Intermittent | T 6 | T 5 | T 29 |
| T 24 | /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV | 800/1000Hz @ 50Hz Sweeping | T 29 | T 5 | T 29 |
| T 25 | /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV | 2400/2900Hz @ 50Hz Sweeping | T 29 | T 5 | T 29 |
| T 26 | /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV | Bell | T 2 | T 15 | T 29 |
| T 27 | /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV | 554Hz Continuous | T 26 | T 5 | T 29 |
| T 28 | /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV | 440Hz Continuous | T 2 | T 5 | T 29 |
| T 29 | /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV | 800/1000Hz @ 7Hz Sweeping | T 7 | T 5 | T 29 |
| T 30 | /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV | 300Hz Continuous | T 2 | T 5 | T 29 |
| T 31 | /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV | 660/1200Hz @ 1Hz Sweeping | T 26 | T 5 | T 29 |
| T 32 | /system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV | Two T chime. | T 26 | T 15 | T 29 |
| T 33 | /system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV | 745Hz @ 1Hz Intermittent | T 2 | T 5 | T 29 |
| T 34 | /system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV | 1000 & 2000Hz @ 0.5 sec Alternating – Singapore | T 38 | T 45 | T 29 |
| T 35 | /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV | 420Hz @ 0.625 sec Australian Alert | T 36 | T 5 | T 29 |
| T 36 | /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV | 500-1200Hz 3.75sec /0.25sec. Australian Evac. | T 35 | T 5 | T 29 |
| T 37 | /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV | 1000Hz Continuous – PFEER Toxic Gas | T 9 | T 45 | T 29 |
| T 38 | /system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV | 2000Hz Continuous | T 34 | T 45 | T 29 |
| T 39 | /system/1/assets/files/000/000/401/401/e3954ab10/original/TF039.WAV | 800Hz 0.25sec on, 1 sec off Intermittent | T 23 | T 17 | T 29 |
| T 40 | /system/1/assets/files/000/000/403/403/88b145b84/original/TF040.WAV | 544Hz (100mS)/440Hz (400mS) – NF S 32-001 | T 31 | T 27 | T 29 |
| T 41 | /system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV | Motor Siren – slow rise to 1200 Hz | T 2 | T 5 | T 29 |
| T 42 | /system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV | Motor Siren – slow rise to 800 Hz | T 2 | T 5 | T 29 |
| T 43 | /system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV | 1200 Hz Continuous | T 2 | T 5 | T 29 |
| T 44 | /system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV | Motor Siren – slow rise to 2400 Hz | T 2 | T 5 | T 29 |
| T 45 | /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV | 1KHz 1s on, 1s off Intermittent – PFEER Gen. Alarm | T 38 | T 34 | T 29 |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | |||||
