HA121 Electronic Siren, Buzzer, Claxon & Bell 2-23-020

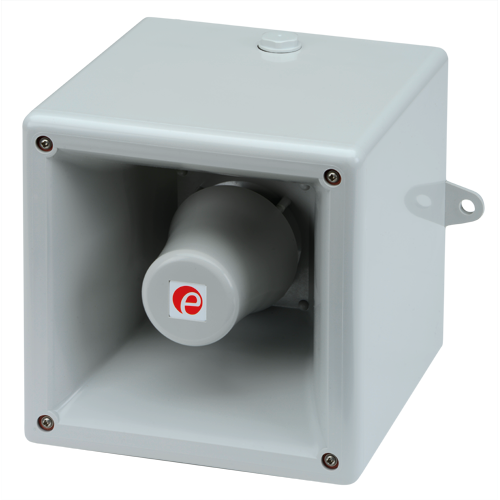

Product Image
Applications and users that have traditionally demanded conventional electromechanical claxons, sirens, buzzers and bells can now choose the next generation alternative.
Request a quote for this product
Voltage
Enclosure Color
Part Number:
HA121
Request Price or enquire about this product
Enquire about
Electronic Siren, Buzzer, Claxon & Bell

Upgraded Product:

Now featuring dual cable entries
Supplied with stopping plugs

Description

The technology employed in the Hootronic range features the latest in amplifier and digital to analogue conversion technology. The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 121dB(A) at 1 metre the HA121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age.

Downloads

Datasheet Datasheet.pdf
Installation Manual ISN5201-C__HA121_HAL121X_HAL121H_.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-034_Issue_F_Hootronic.pdf
2D drawing (PDF) SK0110_Issue_D.pdf
2D drawing (DWG) SK0110_Issue_D.dwg
3D drawing (STEP) SK0110-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-23-020_HA121.tif

Features

The products in the Hootronic range have 5 user selectable ‘traditional’ sounds including:

  • Tone 1 : Industrial Claxon
  • Tone 2 : High Frequency Mechanical Siren
  • Tone 3 : Medium Frequency Mechanical Siren
  • Tone 4 : Electro Mechanical Buzzer
  • Tone 5 : Mechanical Bell


Each of these sounds have two additional, remotely selectable, alarm stages.


Remote switch generates genuine ‘tail off’ to sound when alarm is terminated.

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Unit can be mounted using external lugs or
    internal BESA compatible fixing positions.
  • Duplicate cable terminations
    (in & out for daisy-chain installations).
  • Tropicalisation available on request.

Specification

Nominal output: 121dB(A) @ 1m +/- 3dB – Tone 2 [112dB(A) @ 10ft/3m]
No. of tones: 5
No. of stages: 3
Volume control: Max. 121dB(A);
Min. 112dB(A) approx.
Effective range: 300m/984ft @ 1KHz
Voltages DC: 24V dc (18-30V dc);
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000) & grey (RAL7038)
Cable entries: 2 x M20 clearance gland knockouts
in side & back
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 2.10kg/4.62Ibs AC:2.70kg/5.94Ibs

Current Consumption

Product Version: Nominal Voltage: Voltage Range: Current Consumption:
DC024 24Vdcc 18-30Vdc 375mA
AC115 115Vac 50/60Hz 103.5-126.5Vac 160mA
AC230 230Vac 50/60Hz 207-253Vac 75mA

Part Codes

Version Part code:
24V dc HA121DC24[x]
115V ac HA121AC115[x]
230V ac HA121AC230[x]
[x] = Housing colour: G: Grey, R: Red

Approvals

EAC: RU D-GB.GA05.B.12595-20

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/411/411/491442314/original/TF046.WAV Industrial Claxon T 3 T 5
T 2 /system/1/assets/files/000/000/414/414/146644246/original/TF047.WAV High Frequency Mechanical Siren T 1 T 5
T 3 /system/1/assets/files/000/000/416/416/0c52c2259/original/TF048.WAV Medium Frequency Mechanical Siren T 1 T 5
T 4 /system/1/assets/files/000/000/413/413/c47bf00c7/original/TF049.WAV Electro Mechanical Buzzer T 2 T 5
T 5 /system/1/assets/files/000/000/423/423/854c33e83/original/TF050.WAV Mechanical Bell T 1 T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
