HMA121 Electronic Siren, Buzzer, Claxon & Bell 2-23-030

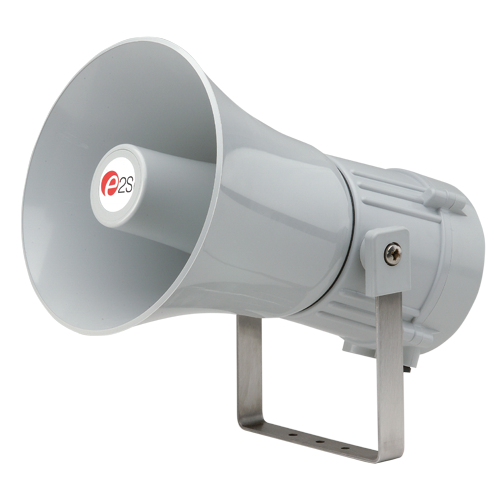

Product image
Applications and users that have traditionally demanded conventional electromechanical claxons, sirens, buzzers and bells can now choose the next generation alternative.
Request a quote for this product
Voltage
Enclosure Color
Part Number:
HMA121
Request Price or enquire about this product
Enquire about
Electronic Siren, Buzzer, Claxon & Bell

Description

The technology employed in the Hootronic range features the latest in amplifier and digital to analogue conversion technology. The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 124dB(A) at 1 metre the HMA121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age.

Downloads

Datasheet Datasheet.pdf
Installation Manual HMA121_Inst__ISN5202-A_.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Declaration of Conformity DC-034_Issue_C_Hootronic.pdf
2D drawing (PDF) SK0122_Issue_B.pdf
2D drawing (DWG) SK0122_Issue_B.dwg
3D drawing (IGS) SK0122-3D_Issue_A.IGS
3D drawing (STEP) SK0122-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-23-030_HMA121.tif
Lo-res product image 1 (JPG) 2-23-030_HMA121.jpg

Features

The products in the Hootronic range have 5 user selectable ‘traditional’ sounds including:

  • Tone 1 : Industrial Claxon
  • Tone 2 : High Frequency Mechanical Siren
  • Tone 3 : Medium Frequency Mechanical Siren
  • Tone 4 : Electro Mechanical Buzzer
  • Tone 5 : Mechanical Bell


Each of these sounds have two additional, remotely selectable, alarm stages.

Remote switch generates genuine ‘tail off’ to sound when alarm is terminated.

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Large termination area.
  • Stainless steel fixings.
  • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.

Specification

Nominal output: 124dB(A) @ 1m +/- 3dB [115dB(A) @ 10ft/3m]
No. of tones: 5
No. of stages: 3
Volume control: Max. 124dB(A); Min. 115dB(A) approx.
Effective range: 300m/984ft @ 1KHz
Voltages DC: 24V dc (10-30V dc);
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66 & IP67 (Third party tested)
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Grey (RAL7038)
Cable entries: 2 x M20 supplied with 1 blanking plug
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 2.50kg/5.5Ibs AC:3.00kg/6.6Ibs

Part Codes

Version Part code:
24V dc HMA121DC24G
115V ac HMA121AC115G
230V ac HMA121AC230G

Alarm sounder

Version: Voltage: Current :
24V dc 10-30V dc 375mA*
115V ac 50/60Hz +/-10% 160mA
230V ac 50/60Hz +/-10% 75mA
* current at nominal voltage

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/411/411/491442314/original/TF046.WAV Industrial Claxon T 3 T 5
T 2 /system/1/assets/files/000/000/414/414/146644246/original/TF047.WAV High Frequency Mechanical Siren T 1 T 5
T 3 /system/1/assets/files/000/000/416/416/0c52c2259/original/TF048.WAV Medium Frequency Mechanical Siren T 1 T 5
T 4 /system/1/assets/files/000/000/413/413/c47bf00c7/original/TF049.WAV Electro Mechanical Buzzer T 2 T 5
T 5 /system/1/assets/files/000/000/423/423/854c33e83/original/TF050.WAV Mechanical Bell T 1 T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
