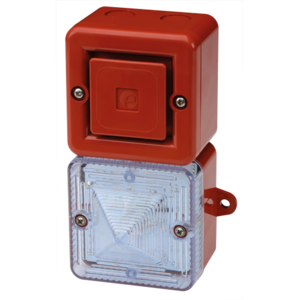

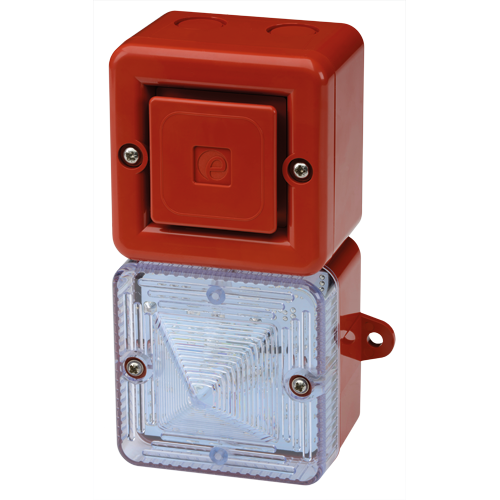

SONFL1X Alarm Horn & Xenon Strobe Beacon 2-31-050

Product image
Product Image
Product Image
The SONFL1X features the 100dB(A) SONF1 alarm horn sounder combined with the L101X Xenon strobe beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Version
Part Number:
SONFL1X
Request Price or enquire about this product
Enquire about
Alarm Horn & Xenon Strobe Beacon

Upgrade Notification

Note: Product upgrade launching 1st June 2021
View upgraded product details here

Notification Image

Description

The 5 Joule Xenon strobe generates over 200 candela of light output. DC versions have multiple flash rates selectable during installation. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Downloads

Datasheet Datasheet.pdf
Sounder/horn installation DC voltages SONF1_DC_Inst__ISN0601-B_.pdf
Sounder/horn installation AC voltages SONF1_AC_Inst__ISN0602-A_.pdf
Beacon/light installation L101X__D185-00-001-IS_Issue_2_.pdf
CPR EN54-23 version installation manual SONFL1X_D176-00-501-IS-SC-CPR_Iss_D.PDF
UL certifcate of compliance UL_CoC_-_20120402-S7995_A-Range__AL-Range.pdf
VdS certificate VdS_G214028_SONFL1X_2019-06-10.pdf
EC Certificate of Conformity 0786-CPR-21348_SONFL1X.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00193.278.pdf
MED certificate MEDB00001EH.pdf
DNV MED Module D cert MEDD00000GV-revision1.pdf
Declaration of Conformity DC-057_Issue_G_SONFL1X__SONFL1H.pdf
Declaration of Performance DP_-_0786-CPR-21348-Issue_A_SONFL1X__SONFL1X-HO.pdf
Hi-res product image 1 (TIFF) 2-31-050_SONFL1X-R-C.tif
Hi-res product image 2 (TIFF) 2-31-050_SONFL1X-R-R.tif
Hi-res product image 3 (TIFF) 2-31-050_SONFL1X-G-R.tif
Lo-res product image 1 (JPG) 2-31-050_SONFL1X-R-C.jpg
Lo-res product image 2 (JPG) 2-31-050_SONFL1X-R-R.jpg
Lo-res product image 3 (JPG) 2-31-050_SONFL1X-G-R.jpg
2D drawing (PDF) SK0142_Issue_B.pdf
2D drawing (DWG) SK0142_Issue_B.dwg

Features

  • Automatic synchronisation on multi-sounder system.
  • High output Xenon beacon
  • DC voltage units feature multiple flash rates.
  • Continuously rated.
  • Stainless steel fixings.
  • Mounting via internal BESA compatible fixing positions or via external mounting lugs.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.

Specification

Sounder:
Maximum output: 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
Nominal output: 99dB(A) @ 1m +/- 3dB – Tone 1 [90dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2
Volume control: On board potentiometer
Effective range: 30m/99ft @ 1KHz
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Effective Intensity: 250 cd – calculated from energy (J)
Peak Candela: 86,935 cd* – measured ref. to I.E.S.
Effective Intensity: 200 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta,
Red & Yellow
Tube life: Emissions are reduced to 70% after 5 million flashes
General:
Voltages DC: 12Vdc; 24V dc
Voltages AC: 24V ac; 115V ac; 230V ac
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Lens material: PC
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.50kg/1.1Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
12V dc SONFL1XDC012[x]/[y]
24V dc SONFL1XDC024[x]/[y]
24V ac SONFL1XAC024[x]/[y]
115V ac SONFL1XAC115[x]/[y]
230V ac SONFL1XAC230[x]/[y]
[x] = Enclosure colour: G: Grey (RAL7038)
R: Red (RAL3000)
W: White
y] = Lens colour: A: Amber
B: Blue
C: Clear
G: Green
M: Magenta
R: Red
Y: Yellow
Suffix part number with ‘-UL’ for UL approved version.
Suffix part number with ‘-M’ for MED approved version [24V dc unit, Clear lens only]
CPR – EN54-3 & EN54-23:
Part code: SONFL1XDC024[x]/C
Environmental class: Type B – for outdoor use
Visual range: Category W-2.4-4.8
Signal colour: Clear (1Hz)

Alarm sounder

Version: Voltage: Current :
12V dc 10-30V dc 25mA*
24V dc 10-30V dc 25mA*
24V ac 50/60Hz +/-10% 40mA
115V ac 50/60Hz +/-10% 13mA
230V ac 50/60Hz +/-10% 13mA
* current at nominal voltage on Tone 2

Approvals

  • VdS approved: EN54-3 and EN54-23 (CPR 305/2011/EU).
  • UL & cULus approved: General signalling use.
  • GOST-R approved. Cert: POCC GB-JB05-H00144.
  • Marine Equipment Directive (MED) Certificate: MEDB00001EH

Xenon beacon

Version: Voltage: Current:
12V dc 10-14V dc 500mA
24V dc 20-28V dc 250mA
24V ac 50/60Hz +/-10% 300mA
115V ac 50/60Hz +/-10% 70mA
230V ac 50/60Hz +/-10% 35mA

Tone Table

Stage 1 WAV file Frequency Description Stage 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
AC Version (Single stage only):
S1 WAV File Description
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001
T 5 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 6 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell
T 7 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 8 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping
T 9 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
T 10 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
