SONFL1H Alarm Sounder & LED Beacon 2-31-060

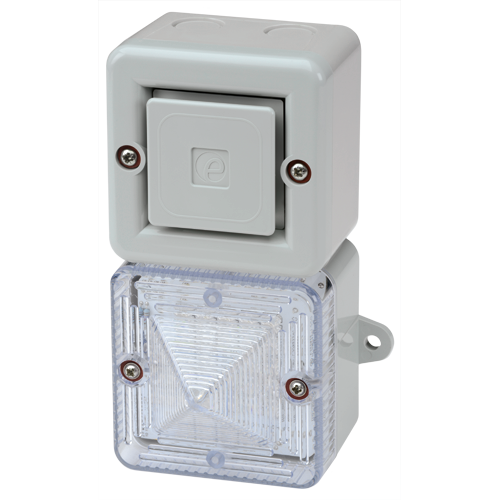

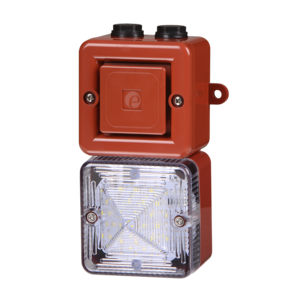

Product image
Product Image
Product Image
The SONFL1H features the 100dB(A) SONF1 alarm sounder combined with the L101H high output L.E.D. beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.
Request a quote for this product
Voltage
Enclosure Color
LED Color
Version
Part Number:
SONFL1H
Request Price or enquire about this product
Enquire about
Alarm Sounder & LED Beacon

Description

The array of 24 Superflux type high output L.E.D’s generates over 120 candela of light output and can be user set to either steady of flashing mode. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Downloads

Datasheet Datasheet.pdf
Sounder/horn installation DC voltages SONF1_DC_Inst__ISN0601-B_.pdf
Sounder/horn installation AC voltages SONF1_AC_Inst__ISN0602-A_.pdf
Beacon/light installation L101H_Inst__D169-00-001-D_.pdf
UL certifcate of compliance UL_CoC_-_20120402-S7995_A-Range__AL-Range.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register RMRS_E2S__14.02758.315__30.06.2019.pdf
Declaration of Conformity DC-057_Issue_B_SONFL1X__SONFL1H.pdf
Hi-res product image 1 (TIFF) 2-31-060_SONFL1H-G.tif
Hi-res product image 2 (TIFF) 2-31-060_SONFL1H-R.tif
Hi-res product image 3 (TIFF) 2-31-060_SONFL1H-W.tif
Lo-res product image 1 (JPG) 2-31-060_SONFL1H-G.jpg
Lo-res product image 2 (JPG) 2-31-060_SONFL1H-R.jpg
Lo-res product image 3 (JPG) 2-31-060_SONFL1H-W.jpg

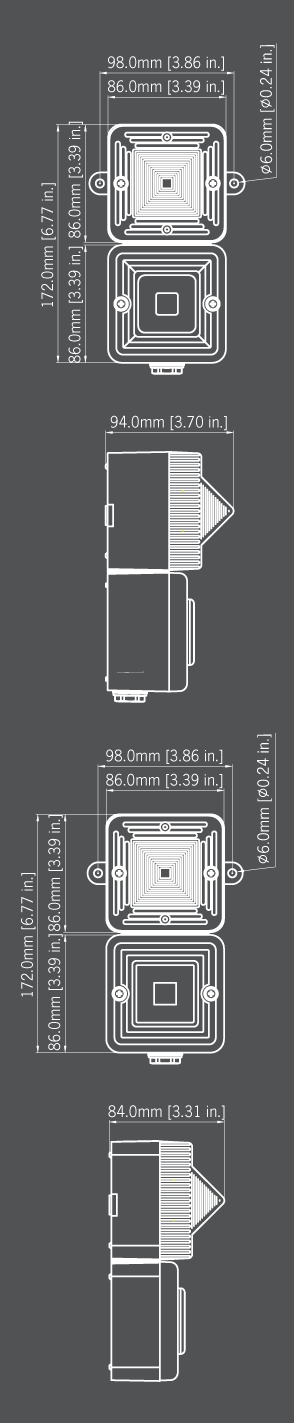

2D drawing (PDF) SK0142_Issue_B.pdf
2D drawing (DWG) SK0142_Issue_B.dwg

Features

  • High output L.E.D array
  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Mounting via internal BESA compatible fixing positions or via external mounting lugs.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.

Specification

Sounder:
Maximum output: 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
Nominal output: 99dB(A) @ 1m +/- 3dB – Tone 1 [90dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2
Volume control: On board potentiometer
Effective range: 30m/99ft @ 1KHz
Beacon:
Light source: High intensity L.E.D. array.
24 x Superflux type high ouput L.E.D’s
Options: Steady or 2Hz flash mode (on board selection)
Peak/Effective Intensity cd: Green L.E.D: 176cd – measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm² cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light.
General:
Voltages DC: 12Vdc; 24V dc
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Lens material: PC
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.50kg/1.1Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes

Version: Part code:
24V dc SONFL1HDC024[x]/[y]
115V ac SONFL1HAC115[x]/[y]
230V ac SONFL1HAC230[x]/[y]
[x] = Enclosure colour: G: Grey (RAL7038)
R: Red (RAL3000)
W: White
[y] = Light colour: A: Amber
B: Blue
W: Clear (White)
G: Green
R: Red
Suffix part number with ‘-UL’ for UL approved version.

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 25mA*
115V ac 50/60Hz +/-10% 13mA
230V ac 50/60Hz +/-10% 13mA
* current at nominal voltage on Tone 2

Approvals

  • SONF1 sounder: VdS approved to EN54-3 (CPD 89/106/EEC).
  • GOST-R approved. Cert: POCC GB-JB05-H00144.
  • UL & cULus approved: General signalling use.

L.E.D. Beacon

Version: Voltage: Current:
24V dc 10-30V dc 155mA (@ 24V dc)
115/230V ac 50/60Hz 90-260V ac/dc 35mA (@230V ac)

Tone Table

Stage 1 WAV file Frequency Description Stage 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
AC Version (Single stage only):
S1 WAV File Description
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001
T 5 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 6 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell
T 7 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 8 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping
T 9 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
T 10 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
