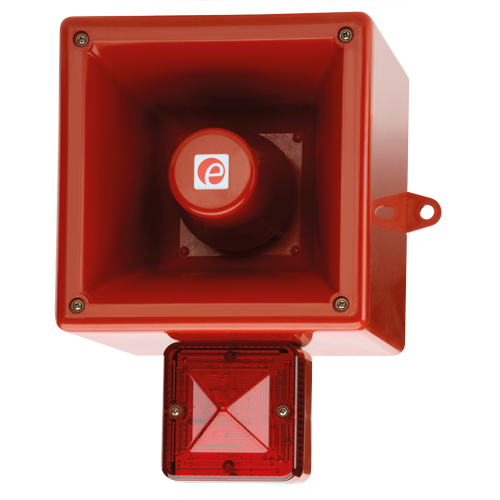

AL121AXX Appello X Recordable Sounder & Xenon Beacon 2-32-050

Product image
Product Image
The AL121AXX Appello X is the next generation of user recordable alarm sounder, capable of storing up to 2 minutes of content, combined with a Xenon strobe. The AL121AXX records, stores and plays back with unsurpassed clarity, user defined voice messages, music or sounds stored directly to non-volatile memory without any intermediate analogue to digital conversion.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Version
Part Number:
AL121AXX
Request Price or enquire about this product
Enquire about
Appello X Recordable Sounder & Xenon Beacon

Description

Low current consumption and CD quality reproduction in a robust fire retardant Type 4/4X/3R/13, IP66 housing ensure the AL121AXX Appello X is suitable for all general signalling applications including fire, security and process control.

Downloads

Datasheet Datasheet.pdf
Installation Manual D166-00-001-IS_Issue_3__A121AX_AL121AHX_A121AXX_MV121_.pdf
UL certificate of compliance UL_CoC_-_20121214-S7995_Appello_X.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-032_Issue_J_Appello_X.pdf
2D drawing (PDF) SK0262_Issue_A.pdf
2D drawing (DWG) SK0262_Issue_A.dwg
3D drawing (IGS) SK0262-3D_Issue_A.IGS
3D drawing (STEP) SK0262-3D-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 2-32-050_AL121AXX-R-R.tif
Hi-res product image 2 (TIFF) 2-32-050_AL121AXX-G-R.tif
Lo-res product image 1 (JPG) 2-32-050_AL121AXX-R-R.jpg
Lo-res product image 2 (JPG) 2-32-050_AL121AXX-G-R.jpg

Features

The AL121AXX Appello user recordable unit enables
the recording of any type of content such as voice or music that can be played back at CD quality output at SPL’s of up to 112dB(A) at 1 metre. This content can be reproduced repeatedly, alternating with or without one of the built-in 45 alarm tones. The alarm tone notification has an output of up to 126dB(A) at 1 metre.

For multiple unit installations the recording process is only required once to create a master unit which can then be used to program all other AL105NAX units
on the system, guaranteeing synchronisation during
playback, using the supplied ‘Synch’ cable.

  • Direct content storage on non-volatile memory.
  • CD quality reproduction.
  • Message length: 4 × 30 seconds
  • Easy message creation with built in microphone or line-in audio input.
  • Volume controls for user content and alarm tones.
  • Available with custom tone configurations
    and frequencies.
  • 5J Xenon strobe beacon capable of 200cd*.
  • Factory programming of user supplied content
    also available.
  • UL approved for general signalling use.

Specification

Alarm sounder:
Voice output: 111dB(A) @ 1 metre
Music output: 112dB(A) @ 1 metre
Alarm output: 126dB(A) @ 1 metre
Alarm tones: x 45 (UKOOA/PFEER compliant)
Messages: x 4 (30 seconds each)
Controls: Independent volume controls for user content and alarm tones
Effective range: 300m/984ft @ 1KHz
Xenon beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 86,935 cd
Candela: 200 cd* (effective intensity)
General:
Ingress protection: Type 4 / 4X / 3R / 13, IP66
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red, RAL7038 Grey and White
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland entries.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -25° to +55°C [-13° to +131°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight DC: 1.00kg/2.2Ibs AC: 1.20kg/2.64Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.

Current Consumption

Version: Voltage: Range: Current:
Alarm+Xenon 24V dc 20-28V dc 1.76A*
Alarm+Xenon 115V ac
50/60Hz
+/-10% 602mA*
Alarm+Xenon 230V ac
50/60Hz
+/-10% 552mA*
* current at nominal voltage on Tone 1

Part Codes

Version: Voltage: Part code:
Alarm+Xenon 24V dc AL121AXXDC024[x]/[y]-UL
Alarm+Xenon 115V ac AL121AXXAC115[x]/[y]-UL
Alarm+Xenon 230V ac AL121AXXAC230[x]/[y]-UL
[x] = Housing colour: G: Grey R: Red W: White
[y] = Xenon Lens colour: A: Amber B: Blue C: Clear
G: Green M: Magenta
R: Red Y: Yellow

Approvals

  • UL & cULs approved: General signalling use
  • EAC approved (GOST-R)

Tone Table

Stage 1 WAV file Frequency Description Stg 2 Stg 3 Stg 4
T 1 /system/1/assets/files/000/000/415/415/246615edd/original/TF001.WAV 340 Hz Continuous T 2 T 5 T 29
T 2 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 17 T 5 T 29
T 3 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5 T 29
T 4 /system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV 800/1000Hz @ 1Hz Sweeping T 6 T 5 T 29
T 5 /system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV 2400Hz Continuous T 3 T 20 T 29
T 6 /system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV 2400/2900Hz @ 7Hz Sweeping T 7 T 5 T 29
T 7 /system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV 2400/2900Hz @ 1Hz Sweeping T 10 T 5 T 29
T 8 /system/1/assets/files/000/000/376/376/00cd26f9e/original/TF008.WAV 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5 T 29
T 9 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 15 T 2 T 29
T 10 /system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV 2400/2900Hz @ 2Hz Alternating T 7 T 5 T 29
T 11 /system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV 1000Hz @ 1Hz Intermittent T 2 T 5 T 29
T 12 /system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV 800/1000Hz @ 0.875Hz Alternating T 4 T 5 T 29
T 13 /system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV 2400Hz @ 1Hz Intermittent T 15 T 5 T 29
T 14 /system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5 T 29
T 15 /system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV 800Hz Continuous T 2 T 5 T 29
T 16 /system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV 660Hz 150mS on, 150mS off Intermittent T 18 T 5 T 29
T 17 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 2 T 27 T 29
T 18 /system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5 T 29
T 19 /system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5 T 29
T 20 /system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV 660Hz Continuous T 2 T 5 T 29
T 21 /system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV 554Hz/440Hz @ 1Hz Alternating T 2 T 5 T 29
T 22 /system/1/assets/files/000/000/387/387/d33e565a9/original/TF022.WAV 544Hz @ 0.875 sec. Intermittent T 2 T 5 T 29
T 23 /system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV 800Hz @ 2Hz Intermittent T 6 T 5 T 29
T 24 /system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV 800/1000Hz @ 50Hz Sweeping T 29 T 5 T 29
T 25 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping T 29 T 5 T 29
T 26 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 2 T 15 T 29
T 27 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV 554Hz Continuous T 26 T 5 T 29
T 28 /system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV 440Hz Continuous T 2 T 5 T 29
T 29 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 7 T 5 T 29
T 30 /system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV 300Hz Continuous T 2 T 5 T 29
T 31 /system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV 660/1200Hz @ 1Hz Sweeping T 26 T 5 T 29
T 32 /system/1/assets/files/000/000/396/396/d64fbc9d0/original/TF032.WAV Two T chime. T 26 T 15 T 29
T 33 /system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV 745Hz @ 1Hz Intermittent T 2 T 5 T 29
T 34 /system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV 1000 & 2000Hz @ 0.5 sec Alternating – Singapore T 38 T 45 T 29
T 35 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert T 36 T 5 T 29
T 36 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 35 T 5 T 29
T 37 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas T 9 T 45 T 29
T 38 /system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV 2000Hz Continuous T 34 T 45 T 29
T 39 /system/1/assets/files/000/000/401/401/e3954ab10/original/TF039.WAV 800Hz 0.25sec on, 1 sec off Intermittent T 23 T 17 T 29
T 40 /system/1/assets/files/000/000/403/403/88b145b84/original/TF040.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 31 T 27 T 29
T 41 /system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV Motor Siren – slow rise to 1200 Hz T 2 T 5 T 29
T 42 /system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV Motor Siren – slow rise to 800 Hz T 2 T 5 T 29
T 43 /system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV 1200 Hz Continuous T 2 T 5 T 29
T 44 /system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV Motor Siren – slow rise to 2400 Hz T 2 T 5 T 29
T 45 /system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV 1KHz 1s on, 1s off Intermittent – PFEER Gen. Alarm T 38 T 34 T 29
Country specific or custom tone configurations and alarm frequencies are available upon request.
