HMCA112-05 Electronic Siren, Buzzer, Claxon & Bell 2-33-050

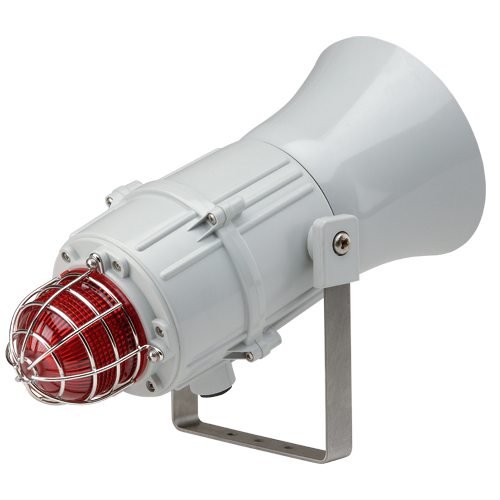

Product image
Applications and users that have traditionally demanded conventional electromechanical claxons, sirens, buzzers and bells can now choose the next generation alternative.
Request a quote for this product
Voltage
Enclosure Color
Lens Color
Part Number:
HMCA11205
Request Price or enquire about this product
Enquire about
Electronic Siren, Buzzer, Claxon & Bell

Description

The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 122dB(A) at 1 metre the HMCA112-05 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age.

Downloads

Datasheet Datasheet.pdf
Installation Manual HMA121_Inst__ISN5202-A_.pdf
Russian EAC Declaration of Conformity Russian327.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-034_Issue_C_Hootronic.pdf
2D drawing (PDF) SK0123_Issue_B.pdf
2D drawing (DWG) SK0123_Issue_B.dwg
Hi-res product image 1 (TIFF) 2-33-050_HMCA112-05-R.tif
Lo-res product image 1 (JPG) 2-33-050_HMCA112-05-R.jpg

Features

The products in the Hootronic range have 5 user selectable ‘traditional’ sounds including:

  • Tone 1 : Industrial Claxon
  • Tone 2 : High Frequency Mechanical Siren
  • Tone 3 : Medium Frequency Mechanical Siren
  • Tone 4 : Electro Mechanical Buzzer
  • Tone 5 : Mechanical Bell


Each of these sounds have two additional, remotely selectable, alarm stages.
Remote switch generates genuine ‘tail off’ to sound when alarm is terminated.

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Large termination area.
  • Stainless steel fixings.
  • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.

Specification

Hootronic Sounder:
Nominal output: 122dB(A) @ 1m +/- 3dB [113dB(A) @ 10ft/3m]
No. of tones: 5
No. of stages: 3
Volume control: Max. 122dB(A); Min. 113dB(A) approx.
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Effective Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 16,428 cd* – measured ref. to I.E.S.
Effective Intensity cd: 51 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Tube life: Emissions are reduced to 70% after 5 million flashes
General:
Voltages DC: 12V dc; 24V dc
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66 & IP67 (Third party tested)
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Grey (RAL7038)
Cable entries: 2 x M20 supplied with 1 blanking plug
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 3.00kg/6.6Ibs AC:3.50kg/7.7Ibs
|\2. *Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.

Part Codes

Version Part code:
12V dc HMCA11205DC12G-xx
24V dc HMCA11205DC24G-xx
115V ac HMCA11205AC115G-xx
230V ac HMCA11205AC230G-xx
[xx] = Lens colour: AM: Amber, BL: Blue,
CL: Clear, GN: Green,
RD: Red, YW: Yellow

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 375mA*
115V ac 50/60Hz +/-10% 160mA
230V ac 50/60Hz +/-10% 75mA
* current at nominal voltage

Approvals

  • GOST-R certificate: POCC GB.JB05.H00144

xenon beacon

Version: Wattage: Current:
12V dc 10-14V dc 550mA
24V dc 20-28V dc 300mA
115V ac 50/60Hz +/-10% 140mA
230V ac 50/60Hz +/-10% 55mA

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/411/411/491442314/original/TF046.WAV Industrial Claxon T 3 T 5
T 2 /system/1/assets/files/000/000/414/414/146644246/original/TF047.WAV High Frequency Mechanical Siren T 1 T 5
T 3 /system/1/assets/files/000/000/416/416/0c52c2259/original/TF048.WAV Medium Frequency Mechanical Siren T 1 T 5
T 4 /system/1/assets/files/000/000/413/413/c47bf00c7/original/TF049.WAV Electro Mechanical Buzzer T 2 T 5
T 5 /system/1/assets/files/000/000/423/423/854c33e83/original/TF050.WAV Mechanical Bell T 1 T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
