D1xL1F PA Loudspeakers 15W 1-22-160

Product Image
Product Image

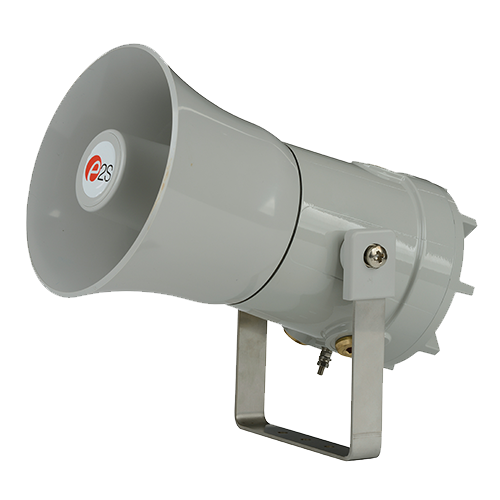

The D1xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I & II Div 1 & Zone 1/20 explosion proof applications.
Request a quote for this product
Input
Cable Entry Type
Adaptor/Stopping Plug material
Bracket Material
Version
Enclosure Color
Part Number:
D1xL1F
Request Price or enquire about this product
Enquire about
PA Loudspeakers 15W

Description

The re-entrant flare horn is high impact, fire retardant ABS and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries, and large termination areas.
The termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

Downloads

Datasheet Datasheet.pdf
Class I Gas installation manual D190-00-201-IS-SC_Issue_4__D1xL1F-L2F-GAS_.pdf
Class II Dust installation manual D190-00-251-IS-SC_Issue_4__D1xL1F-L2F-DUST_.pdf
UL certifcate of compliance UL_CoC_-_20150702-E230764_D1xL.pdf
CSFM Listing 7136-2279_0504__D1xL_.pdf
Declaration of Conformity DC-067_Issue_C_D1x.pdf
Polar plots & test report D1xL1F_AMS_Test_Report.pdf
EASE files D1xL1F_EASE.zip
2D drawing (PDF) SK0359_Issue_B.pdf
2D drawing (DWG) SK0359_Issue_B.dwg
3D drawing (IGS) SK0369-3D_Issue_A.IGS
3D drawing (STEP) SK0369-3D_Issue_A.STEP
Hi-res product image 1 (TIFF) 1-22-160_D1xL1F_G1.tif
Lo-res product image 1 (JPG) 1-22-160_D1xL1F_G1.jpg
Hi-res product image 2 (TIFF) 1-22-160_D1xL1F_Group.tif
Lo-res product image 2 (JPG) 1-22-160_D1xL1F_Group.jpg
Hi-res product image 3 (TIFF) 1-22-160_D1xL1F_R2.tif
Lo-res product image 3 (JPG) 1-22-160_D1xL1F_R2.jpg
Pipe Mount Drawing (PDF) D217-05-061_Issue_B_D1xS-L.pdf

Features

  • High output
  • Compact form factor
  • Multiple transformer tappings
  • Field replaceable flare component
  • Robust corrosion proof aluminium enclosure
  • Ratchet adjustable stainless steel bracket
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations
  • Threaded cover joint for fast installation

Specification

SPL (Gas version): 102dB +/-3dB @ 1W @ 1m (Pink)
113dB +/-3dB @ 15W @ 1m (Rated)
SPL (Dust version): 83dB +/-3dB @ 1W @ 1m (Pink)
95dB +/-3dB @ 15W @ 1m (Rated)
Rated power: 15 Watts RMS
70v line tappings: 15W/7.5W/3W/1W
(z=336.67 Ohms/653.33 Ohms/1.6k Ohms/4.9k Ohms)
Low impedance: 8 Ohm or 16 Ohm
Directivity Index: 6.2 @ 1kHz & 16.0 @ 4kHz [dB on-axis]
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer )
470µF Capacitor (Low impedance)
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material: Marine grade aluminium LM6- copper free
Chromated & powder coated – corrosion proof
Colour: Red (RAL3000), Grey (RAL7038)
Cable entries: 1 × 1/2"NPT & 2 x M20 x 1.5mm
1 × 1/2"NPT & 2 × 1/2"NPT
1 × 1/2"NPT & 2 × 3/4"NPT
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: -40° to +70°C [-40° to +158°F]
Storage temp: -50° to +70°C [-58° to +158°F]
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 70V line: 4.3kg/9.5Ibs
Low imp.: 4.0kg/8.7Ibs

Part Codes

Version: Part code:
Product type: D1xL1
Horn type: F Flare re-entrant horn
Type: V070
R008
R016
70V Line Transformer
8 Ohm Low impedance
16 Ohm Low impedance
Cable Entry Type:[e] A
B
C
1 × 1/2"NPT & 2 x M20 x 1.5mm
1 × 1/2"NPT & 2 × 1/2"NPT
1 × 1/2"NPT & 2 × 3/4"NPT
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1
D1
Gas environments Class I/Zone1
Dust environments Class II/Zone 20
Enclosure colour: [x] G
R
Grey RAL7038
Red RAL3000
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0003-A2
SP65-0003-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • UL File ref: E230764
    UL1203 Ed. 5
    CAN/CSA C22.2 No. 25-1966
    CSA C22.2 No. 30-M1986
    CSA C22.2 No. 205-12
    UL1480 Ed. 6
    Commercial and professional use
  • CSFM listing: 7136-2279:0504

Coding

  • A1: Gas version
    NEC / CEC:
    Class I Div 1 ABCD T6 Ta -40°C to +70°C
    Class I Div 2 ABCD T6 Ta -40°C to +70°C
    Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
  • D1: Dust version
    NEC / CEC:
    Class II Div 1 FG T6 Ta -40°C to +70°C
    Class II Div 2 FG T6 Ta -40°C to +70°C
    Class III Div 1 & 2
    Zone 20, 21, 22 IIIB Ta -40°C to +70°C
  • Protection concept: Ex d / AEx d
