The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
| Datasheet | Datasheet.pdf |
| Installation Manual | D190-01-201-IS_Issue_1__D1xL_.pdf |
| Class II Dust installation manual | D190-00-251-IS-SC_Issue_7_D1xL-F_DUST.pdf |
| IECEx certificate | IECEx_ULD_19.0008X_001_D1xC_S_L.pdf |
| ATEX certificate | DEMKO_19_ATEX_2141X_Issue_1_D1xC_S_L.pdf |
| UL certificate of compliance | UL_CoC_-_20150702-E230764_D1xL.pdf |
| CSFM Listing | CSFM_Listing_2279-0504__D1xL__2022.pdf |
| Declaration of Conformity | DC-067-H_DC-097-A_D1xS-L-C.pdf |
| Polar plots & test report | D1xL2F_AMS_Test_Report.pdf |
| EASE files | D1xL2F_EASE.zip |

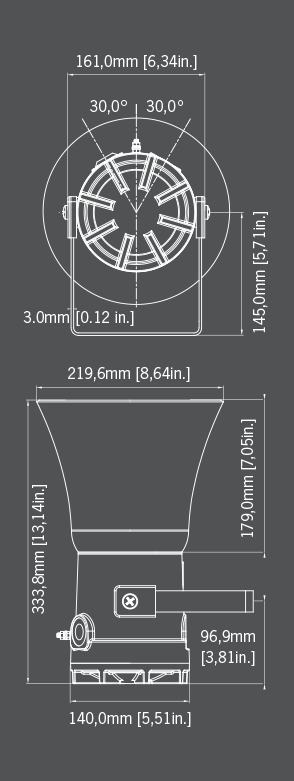

| 2D drawing (PDF) | D190-05-101_Issue_B.pdf |
| 2D drawing (DWG) | D190-05-101_Issue_B.dwg |
| 3D drawing (STEP) | D190-05-101-3D_Issue_1.STEP |
| Wiring Schematic | D190-06-201_Issue_1.pdf |
| Nameplate Drawing | D190-09-201_251_Issue_1_D1xL.pdf |

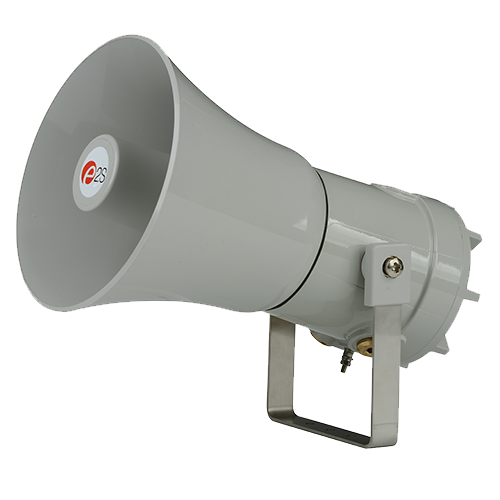

| Hi-res product image 1 (TIFF) | 1-22-170_D1xL2F_G1.tif |
| Hi-res product image 2 (TIFF) | 1-22-170_D1xL2F_Group.tif |
| Hi-res product image 3 (TIFF) | 1-22-170_D1xL2F_R2.tif |
| Pipe Mount Drawing (PDF) | D217-05-061_Issue_B_D1xS-L.pdf |
| Product version A SPL: | 108dB +/-3dB @ 1W @ 1m (Pink) 118dB +/-3dB @ 25W @ 1m (Rated) 123dB(A) @ 1 m at 1.4Khz (Max) |
| Product version D SPL: | 89dB +/-3dB @ 1W @ 1m (Pink) 97dB +/-3dB @ 25W @ 1m (Rated) 108dB(A) @ 1 m at 1.4Khz (Max) |
| Rated power: | 25 Watts RMS |
| 70v line tappings: | 25W/12.5W/6W/2W tappings (z=196 Ohms/392 Ohms/816.67 Ohms/2.45k Ohms) |
| 100v line tappings: | 25W/12.5W/6W/2W tappings (z=400 Ohms/800 Ohms/ 1.67k Ohms/5k Ohms) |
| Low impedance: | 8 Ohm or 16 Ohm |
| Directivity Index: | 7.6 @ 1kHz & 17.6 @ 4kHz [dB on-axis] |
| Frequency range: | 300Hz to 8000 Hz |
| DC Line monitoring: | 2.2µF Capacitor (Transformer ) 470µF Capacitor (Low impedance) |
| Ingress protection: | EN60529: IP66 UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure material: | Marine grade LM6 aluminium alloy |
| Enclosure colour: | Red or Grey, custom colours available on request |
| Enclosure finish: | Chromate & powder coated finish |
| Cable entries: | 1×1/2"NPT & 2xM20 Thread adaptors available |
| Stopping plugs: | Brass, Nickel Plated or Stainless Steel |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) Duplicated terminals |
| Grounding stud: | M5 |
| Enclosure volume: | <2 litres |
| Product version A Installation temp: |
NEC: -55° to +85°C [-67° to +185°F] CEC/IECEx/ATEX: -55° to +75°C [-67° to +167°F] |
| Product version D Installation temp: |
NEC Class Div: -40° to +70°C [-40° to +158°F] NEC Class Zone, CEC Class Div/Zone: -55° to +75°C [-67° to +167°F] |
| Storage temp: | -55° to +85°C [-67° to +185°F] |
| Relative humidity: | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight: | 100V/70V line: 4.5kg/9.9Ibs Low imp.: 4.2kg/9.1Ibs |
| Part Code: | Identifier: | Description: |
|---|---|---|
| Product type: | D1xL2 | D1xL2 25W Loudspeaker |
| Horn type: | F | Flare re-entrant horn |
| Type: | V100 V070 R008 R016 |
100V Line Transformer 70V Line Transformer 8 Ohm Low impedance 16 Ohm Low impedance |
| Cable entries:[e] | A B C D E Note: |
1×1/2"NPT, 2xM20 1×1/2"NPT, 2×1/2"NPT-adaptors 1×1/2"NPT, 2×3/4"NPT-adaptors 1×1/2"NPT, 1 x M20, 1×1/2"NPT-adaptor 1×1/2"NPT, 1 x M20, 1×3/4"NPT-adaptor All entries, excluding thread adaptors, supplied with stopping plugs installed. |
| Stopping plug/ adaptor material: [m] |
B N S |
Brass Nickel plated brass Stainless steel |
| Bracket material: [s] | 1 3 |
A4 316 Stainless Steel A4 316 St/St with Equip. Tag |
| Product version: [v] |
A D |
UL, cUL, IECEx, ATEX, CSFM Class II – UL, cUL (excluding 100V) |
| Product option: [o] |
1 T X |
Standard product Tropicalisation Custom configuration – contact E2S |
| Enclosure colour: [x] | R G S |
Red Grey Special colour – contact E2S |
| Accessories: | ||
| SP65-0001-A4 SP65-0003-A4 |
Pole Mount Bracket Kit 2" St/St A4 (316) Sunshade – St/St A4 (316) |
