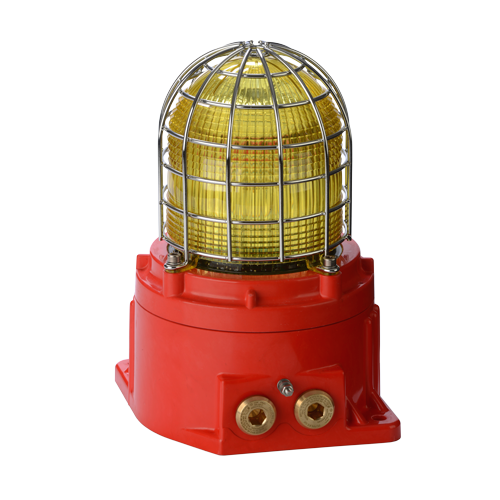

GNExB2X21 Xenon Strobe Beacon 1-21-052

Product Image
Product Image
Product Image
The GNExB2X21 is an IECEx & ATEX approved explosion proof 21 Joule Xenon beacon. The robust corrosion proof GRP enclosure and extended temperature range ensures suitability for all Zone 1, 2, 21 & 22 hazardous location applications.
Request a quote for this product
Type
Voltage
Cable entries
Stopping plug/adaptor material
Guard material
Product version
Product option
Enclosure colour
Lens colour
Part Number:
GNExB2
Request Price or enquire about this product
Enquire about
Xenon Strobe Beacon

Upgraded Product

  • Lower in-rush electronics
  • Enhanced light output
  • A4 316 stainless steel guard as standard

Description

The GNExB2X21 beacon produces over 900cd effective – a very high output Xenon strobe flash as required for efficient signalling in environments with elevated levels of ambient light. The optically enhanced field replaceable colour filter optimises the strobe output and is constructed from UV stable PC. The GRP enclosure features a threaded flame path, triple cable entries and a large termination area – all of which significantly reduce installation time. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

Downloads

Datasheet Datasheet.pdf
Install manual: Product version [A] D156-01-201-IS_Issue_3__GNExB2X_.pdf
Installation Manual - Russian D156-00-201-IS-RUS_Issue_3_GNExB2X.pdf
INMETRO Installation Manual D156-00-201-IS-IEx_Issue_B_GNExB2X05_10_15_21.pdf
IECEx certificate IECEx_UL_15.0003X_Issue_5_GNExB_J_H.pdf
ATEX certificate DEMKO_15_ATEX_1448X_Rev._6_GNExB_J_H.pdf
UKCA Certificate UL21UKEX2136X_Rev._2_GNExB_J_H.pdf
INMETRO certificate IEx20.0049X_R1_GNExB2_GNExJ2.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01252_21.pdf
CCOE PESO COOE_P579164_GNExB1_GNExB2.pdf
ECAS Ex Approval 24-07-116025_E24-07-119724_NB0007_GNExB__GNExH.pdf
Ingress Protection certificate CoTC_104611_Issue_2_GNExS-L-B-J.pdf
Declaration of Conformity DC-037_Issue_H_GNExB_GNExJ.pdf
Declaration of Conformity UKCA DC-098_Issue_A_GNExB1_B2_J2_UKCA.pdf
SIL Certificate: Product version [A] T900-123_4_SIL2_SIL1_2H__D1xB2_STExB2_GNExB_BExBG_.pdf
2D drawing (PDF) D156-05-201_Issue_2.pdf
2D drawing (DWG) D156-05-201_Issue_2.DWG
3D drawing (STEP) D156-05-201-3D_Issue_1_GNExB2_.STEP
Wiring Schematic D156-06-201_Issue_C_GNExB2X_.pdf
Nameplate Drawing D156-09-101_Issue_2_GNExB2X_.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing D217-05-231_Issue_1__GNExB2_.pdf

Features

  • Four flash rates: 1Hz, 1.3Hz, 1.5Hz & double flash
  • Automatic synchronisation on multi-beacon systems
  • User replaceable Xenon tube secured against shock & vibration
  • A4 316 Stainless Steel guard included as standard
  • UV stable polycarbonate lens colour filter – field replaceable
  • 3 x cable entries
  • Stopping plugs included
  • Robust corrosion proof GRP (glass reinforced polyester) enclosure

Specification

Source: Xenon Strobe – Single or Dual
Energy: 21 Joules (21Ws)
Flash rates: 1Hz flash (60 fpm)
1.3Hz flash (80 fpm)
1.5Hz flash (90 fpm)
Double flash (120 fpm)
Eff. Intensity cd: 1,115.57 cd – measured ref to I.E.S
Peak Candela: 252,852 cd – measured ref to I.E.S
Eff. Intensity cd: 1,050 cd – calculated from energy (J)
Peak Candela: 2,100,000 cd – calculated from energy (J)
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltage DC: 24V dc (20-28Vdc), 48Vdc (42-54Vdc)
Voltage AC: 115Vac (110-120Vac), 230Vac (220-240Vac)
In-rush: 1508mA within 5ms @ 24Vdc
Safety Integrity Level: SIL1 and SIL2 Route 2H IEC61508 (2010)
Ingress protection: IP rating per EN60529:IP66/67
Lens material: High impact Borosilicate glass
Enclosure material: UV stable GRP (glass reinforced polyester)
Enclosure colour: Natural Red
Enclosure finish: Natural – can be painted in alternative colours
Cable entries: Side: 3 x M20x1.5mm
Stopping plugs included
Stopping plugs: Brass, Nickel Plated or Stainless Steel
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Duplicated terminals
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor
or diode (DC versions) can be fitted
Ground/Earth stud: M4
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Enclosure volume: <2 litres
Installation temp: -50° to +70°C (-58°F to +158°F)
Storage temp: -50° to +70°C (-58°F to +158°F)
Relative humidity: 99% – tropicalised/conformal coated electronics
MTBF DC: 155.52 years / 1,362,398 hours – MIL 217
MTBF AC: 246.02 years / 2,155,173 hours – MIL 217
Weight: 3.5kg/7.7lbs
*All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Nominal
Voltage:
Voltage
range:
Nominal
current:
Max.
current:
In-rush:
24Vdc 20-28Vdc 1130mA 1240mA 1508mA <6ms
48Vdc 42-54Vdc 530mA 560mA 2110mA <4ms
115Vac 110-120Vac 50/60Hz 500mA 530mA -
230Vac 220-240Vac 50/60Hz 195mA 270mA -

Part Codes

Part Code: Identifier: Description:
Product type: GNExB2
Type: X21 Xenon Beacon – 21 Joule
Voltage: DC024
DC048
AC115
AC230
24Vdc (20-28Vdc)
48Vdc (42-54Vdc)
115Vac (110-120Vac)
230Vac (220-240Vac)
Cable entries: [e] A
B
C
D
E
F
G
H
I
J
3 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
3 × 1/2" NPT – adaptors
3 × 3/4" NPT – adaptors
3 x M25x1.5mm – adaptors
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel plated brass
Stainless steel
Guard material: [s] 1
3
5
A4 316 Stainless Steel
A4 316 St/St with Equip. Tag
A4 316 St/St with Equip. Tag and Duty Label
Product version: [v] A

U
IECEx, ATEX, Ex EAC, PESO, INMETRO
SIL1 & SIL2
Dual Xenon Tubes – IECEx, ATEX, Ex EAC
PESO, INMETRO – SIL1 & SIL2
Product option: [o] 1
X
Standard product
Custom configuration – contact E2S
Enclosure colour: [x] R
S
Red
Special colour – contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Accessories:
SP65-0001-A4
SP65-0003-A4

Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • IECEx UL 15.0003X
  • ATEX DEMKO 15ATEX1448X
  • UKCA certificate: UL21UKEX2136X
  • TR-CU Ex EAC certificate: RU С-GB.НА65.В.01252_21
  • PESO CCOE certified: P579164
  • INMETRO IEx 20.0049X
  • SIL1 & SIL2 compliant to IEC61508 (2010)

Assemblies

The GNExB2X21 is available as a plated assembly configured with a GNEx type alarm horn sounder and additional
GNEx type Xenon strobe or LED beacons with or without a GNExJ2 Ex d junction box. Contact E2S for further information.

Coding

  • IECEx / ATEX
    II 2G Ex db IIC Gb T4 Ta -50°C to +65°C (AC: +55°C)
    II 2G Ex db IIC Gb T3 Ta -50°C to +70°C (AC: +65°C)
    II 2D Ex tb IIIC Db T135°C Ta -50°C to +70°C (AC: T138°C)

Effective Candela lens colour factor

Amber Blue Clear Green Magenta Red Yellow
0.59 0.27 1.00 0.51 0.34 0.15 0.85
