STExJ2 Junction Box 1-25-020

Product image
Product Image
Product Image

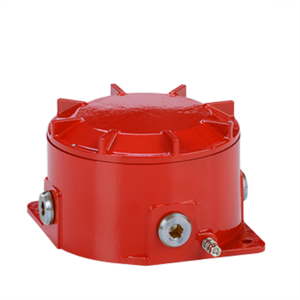

The STExJ2 is a versatile globally certified explosion proof junction box. The robust IP66/67 corrosion proof316L grade stainless steel enclosure with extended temperature range ensures the D1xJ2 is suitable for all Zone 1, 2 and Class I Division 2 applications.
Request a quote for this product
Terminal configuration
Cable entries
Stopping plug/adaptor material
Product version
Product option
Enclosure colour
Part Number:
STExJ2
Request Price or enquire about this product
Enquire about
Junction Box

Upgraded Product

  • New UL & cUL approval for Class I Zone 1 and Class I Division 2 applications

Description

The 316L enclosure is chromated with a powder coated surface finish and features a threaded flame path, four cable entries and a large termination area – all of which significantly reduce installation time. With a power rating of up to 5W the junction box can be configured with a 12 way standard terminal block, a 12 way DIN rail terminal block. DNV type approved for exposed locations.

Downloads

Datasheet Datasheet.pdf
Installation Manual D199-01-501-IS_Issue_2_STExJ2_.pdf
INMETRO Installation Manual D199-00-501-IS-IEx_Issue_A.pdf
IECEx certificate IECEx_ULD_16.0017X_004_STEx.pdf
ATEX certificate DEMKO_16_ATEX_1466X_Rev4_STEx.pdf
UL certificate of compliance UL_CoC-20211026-E245313_Vol2_Sec2_STEx.pdf
UKCA Certificate UL21UKEX2019X_Rev1_STEx.pdf
INMETRO certificate CoC_IEx_20.0156X_Rev_0_STEx.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01253_21.pdf
DNV Type Approval TAA00001JN_1.pdf
Declaration of Conformity DC-070_Issue_G_STEx.pdf
2D drawing (PDF) D199-05-501_Issue_1_STExJ2_.pdf
2D drawing (DWG) D199-05-501_Issue_1_STExJ2_.DWG
3D drawing (STEP) D199-05-501-3D_Issue_1_STExJ2_.STEP
Nameplate Drawing D199-09-501_Issue_1_STExJ2_.pdf

Features

  • Robust corrosion proof 316L stainless steel enclosure
  • Ingress protection IP66 /67
  • Four cable entries
  • DNV type approved IEC 60945 & DNVGL-CG-0339

Specification

Terminals: DIN Rail 12 × AKZ 2.5
Earth 4 × AKE 2.5
12 way MK3 Terminal Block
Voltages DC: 60Vdc max.
Voltages AC: 260Vac 50/60Hz max.
Power: 5W max.
Ingress protection: EN60529: IP66/67
Enclosure material: 316L Stainless Steel
Enclosure colour: Red (RAL3000)
Enclosure finish: Chromate & powder coated finish
Cable entries: 3 x M20x1.5mm
Stopping plugs included
Stopping plugs: Stainless Steel
Grounding stud: M5
Installation temp: -50° to +70°C (-58°F to +158°F)
Storage temp: -50° to +70°C (-58°F to +158°F)
Weight: 5.0kg/11.02lbs

Part Codes

Part Code: Identifier: Description:
Product type: STExJ2 Junction Box
Terminal configuration: D01
T01
DIN Rail 12 × AKZ 2.5 + 4 × AKE 2.5
12 way MK3 Terminal Block
Custom module – contact E2S
Cable entries:[e] A
B
C
D
E
F
G
H
I
J
K
L
M
4 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
3 × 1/2" NPT – adaptors
3 × 3/4" NPT – adaptors
3 x M25x1.5mm – adaptors
4 × 1/2" NPT – adaptors
4 × 3/4" NPT – adaptors
4 x M25x1.5mm – adaptors
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel (standard)
Equipment tag: [s] 1
2
No Equipment tag
St.St. Equipment tag
Product version: [v] A IECEx, ATEX, DNV
Product option: [o] 1
X
Standard product
Custom configuration – contact E2S
Enclosure colour: [x] R
S
Red
Special – contact E2S for alternative enclosure colours

Approvals

  • UL/cUL – File ref: E245313
  • IECEx ULD 16.0017X
  • ATEX DEMKO 16 ATEX 1466X
  • UKCA certificate: UL21UKEX2019X
  • TR-CU Ex EAC certificate: RU С-GB.НА65.В.01253_21
  • INMETRO IEx 20.0156X
  • DNV type approved: TAA00001JN

Coding

  • IECEx / ATEX
    II 2G Ex db IIC T6 Gb Ta. -50° to +65°C
    II 2G Ex db IIC T5 Gb Ta. -50° to +70°C
    II 2D Ex tb IIIC T85°C Db Ta. -50° to +70°C
  • NEC / CEC Class / Zone
    Class I Zone 1 AEx db IIC T5 Gb Ta -50°C to +70°C
    Class I Zone 1 AEx db IIC T6 Gb Ta -50°C to +65°C
  • NEC / CEC Class / Div
    Class I Div 2 Group ABCD T5 Ta -50°C to +70°C
    Class I Div 2 Group ABCD T6 Ta -50°C to +65°C
