D1xCP1-PS Explosion Proof Manual Pull Station 1-24-110

Product image

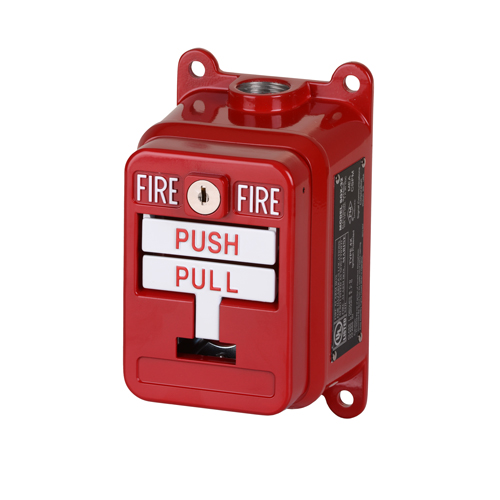

The D1xCP1-PS is a cast aluminium manual alarm pull station available in a dual action configuration. These explosion proof stations have a DPDT switch mounted in heavy duty cast aluminium housings.
Request a quote for this product
Cable entries
Stopping plug/adaptor material
Duty/Tag label
Enclosure Color
Part Number:
Request Price or enquire about this product
Enquire about
Explosion Proof Manual Pull Station


The solid design and rugged construction of the D1xCP1-PS station makes it ideal for use in harsh operating environments and hazardous locations. The D1xCP1-PS manual station is UL listed for use in the various classifications of hazardous environments shown in the specification table. The device has a NEMA type 4X rating for operation in extreme weather conditions and plant wash down applications. It is also UL Marine listed for operation in highly corrosive environments.


Datasheet Datasheet.pdf
Installation Manual D1xCP1-PS_installation.pdf
UL certificate of compliance UL_CoC_-_20200521-E515567_D1xCP1-PS.pdf
SIL2 Certificate T1009-189_1_SIL2_2H_D1xCP1-PS.pdf
2D drawing (PDF) D241-05-001_Issue_A.pdf
2D drawing (DWG) D241-05-001_Issue_A.dwg
3D drawing (STEP) D241-05-001-3D_Issue_1.STEP
Nameplate Drawing D241-09-001_Issue_1_D1xCP1-PS.pdf
Lo-res product image 1 (JPG) D1xCP1-PS.jpg


The D1xCP1-PS dual action model features a “PUSH” bar
that moves inward, allowing the “PULL” handle to be grasped and operated by a single hand. The activated station is reset by opening the station with a key, placing the handle in the normal upright position, and
re-locking the station.

• Explosion Hazard Classifications
Class I, Div. 1, Group B, C and D
Class II, Div. 1, Group E, F and G
Class III, Div. 1
• Marine and NEMA type 4X Rated
• DPDT switch with screw terminal connection
• Dual Action
• DC and AC Voltage Contact Ratings
• Key Reset
• SIL2 compliant


Listings: UL, MEA
Temperature: -40°C to +65°C [-40° to 150°F]
Relative humidity: 95% at 20°C [68°F]
Switch Type: Double Pole, Double Throw (DPDT)
Switch Rating: 1 Amp @ 30 VDC
10 Amp @ 120 VAC
IP Rating: NEMA Type 4X (UL)
Other: UL Marine Listed
Pull Station Weight: 4.8 lbs
Pull Station Dimensions: 6 5/16”h x 3 1/4”w x 3 7/8”d
Conduit Fittings: Two – 3/4” – 14 NPT
Colour: Red with raised white letters
white “PULL” bar and white “PUSH” bar
(Dual Action) with raised red letters

Part Codes

Version: Part code: Description:
Product type: D1XCP1PS D1xCP1-PS Manual Pull Station
Switch Type: [s] D DPDT/DPCO
Cable entries: [e] D
2 × 3/4"NPT -Default
1 × 3/4"NPT & 1 x M20 (adaptor)
2 x M20 (adaptors)
2 × 1/2"NPT (adaptors)
Stopping plug: [m] N
1 × 3/4"NPT Nickel Plated Brass
1 × 3/4"NPT Stainless Steel
None – Default (Cable entry option B, C or D)
Duty label / Equipment tag: [s]: 1
No Duty label, no Equip. tag
Duty label Stainless Steel
Duty label St/St + Equip. tag
Equip. tag only
Special label requirement
Version: [v] A1 UL, SIL2
Enclosure colour: [x] R Red
Accessories: SP65-0001-A4: Pole Mount Bracket Kit 2" St/St A4 (316)
SP65-0002-A4: Sunshade – St/St A4 (316)


  • UL
  • MEA
  • SIL2 compliant
