STExL2F PA Loudspeakers 25W 1-22-210

Product image
Product Image
Product Image

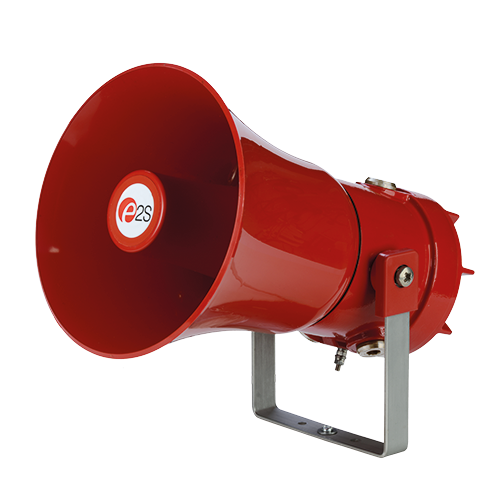

The STExL2F is a high output, 119dB(A) PA loudspeaker with a re-entrant flare horn. The high output driver in a robust IP66 corrosion proof 316L stainless steel enclosure ensures suitability for all Zone 1, 2, 21 & 22 applications.
Request a quote for this product
Input
Cable Entry Type
Adaptor/Stopping plug material
Bracket Material
Version
Enclosure Color
Part Number:
STExL2F
Request Price or enquire about this product
Enquire about
PA Loudspeakers 25W

Description

Available with 70 or 100V line transformer or as low impedance versions, all models have triple cable entries, and large termination areas.
The termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

Downloads

Datasheet Datasheet.pdf
Installation Manual D199-00-101-IS_Issue_1_STExL1_2_.pdf
IECEx certificate IECEx_ULD_16.0017X_Issue_0_STEx.pdf
ATEX certificate ULD_16ATEX1466X_Issue_0_STEx.pdf
Russian Ex certificate __RU_C_GB.71.B.00109.pdf
Declaration of Conformity DC-070_Issue_A_STEx.pdf
2D drawing (PDF) SK0386_Issue_A.pdf
2D drawing (DWG) SK0386_Issue_A.DWG
3D drawing (IGS) SK0386-3D_Issue_A.IGS
3D drawing (STEP) SK0386-3D_Issue_A.STEP
Pipe Mount Drawing (PDF) D217-05-081_Issue_B_STExS-L.pdf

Features

  • Robust corrosion proof 316L stainless steel enclosure
  • High output, up to 119dB(A) @ 25W
  • Low impedance or line transformer versions
  • Continuously rated
  • Compact form factor
  • Stainless steel fixings
  • Ratchet adjustable 316 stainless steel bracket
  • 316 Stainless steel stopping plugs included
  • 3 x cable entries

Specification

SPL: 105dB +/-3dB @ 1w @ 1m (Pink)
119dB +/-3dB @ 25w @ 1m (Rated)
Rated power: 25 Watts RMS
70v line tappings: 25w / 12.5w / 6w / 2w tappings
(z=196 Ohms /392 Ohms /
816.67 Ohms / 2.45k Ohms)
100v line tappings: 25w / 12.5w / 6w / 2w tappings
(z=400 Ohms /800 Ohms /
1.67k Ohms / 5k Ohms)
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 130° @ 1kHz & 32° @ 4kHz
Frequency range: 300Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer)
470µF Capacitor (Impedance)
Ingress protection: EN60529: IP66
Enclosure
material:
316L Stainless Steel
Enclosure finish: Chromated & powder coated
Colour: Red (RAL3000)
Cable entries: 3 x M20 x 1.5mm
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Grounding stud: M5
Operating temp: -50 to +70°C [-58° to +158°F]
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 6.25kg/13.75lbs

Part Codes

Version: Part code:
Product type: STExL2
Horn type: F Flare re-entrant horn
Type: V100
V070
R008
R016
100V Line Transformer
70V Line Transformer
8 Ohm Low impedance
16 Ohm Low impedance
Cable Entry Type:[e] A
B
C
D
E
F
G
3 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel (standard)
Bracket matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel (default)
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 IECEx & ATEX Group II 2G/D Zone 1, 2, 21 & 22
Enclosure colour: [x] R Red RAL3000
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0003-A2
SP65-0003-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • IECEx ULD 16.0017X
    IEC 60079-0 : 2011
    IEC 60079-1 : 2014
    IEC 60079-31 : 2013
  • ATEX DEMKO 16 ATEX 1466X
    EN 60079-0 : 2012 + A11 : 2013
    EN 60079-1 : 2014
    EN 60079-31 : 2014
  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109

Coding

  • Ex db IIC Gb T6 Ta -50°C to +45°C
  • Ex db IIC Gb T5 Ta -50°C to +60°C
  • Ex db IIC Gb T4 Ta -50°C to +70°C
  • Ex tb IIIC Db T105°C Ta -50°C to +70°C
