BExBG10 Explosion Proof Xenon Beacon 10 Joule 1-21-120

Product image
Product Image
Product Image

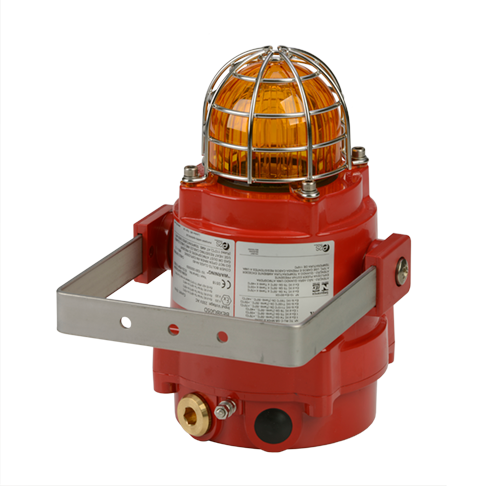

The flameproof BExBG10 10 Joule, 380 candela Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. Available as SIL 1 and SIL 2 compliant.
Request a quote for this product
Type
Voltage
Cable Entry Type
Adaptor/Stopping plug material
Bracket & Guard
Version
Enclosure Color
Lens Color
Part Number:
BExBG10
Request Price or enquire about this product
Enquire about
Explosion Proof Xenon Beacon 10 Joule

Description

The BExBG10 10 Joule Xenon strobe beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The explosion proof Ex d BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Downloads

Datasheet Datasheet.pdf
Ex d & Ex tD Gas & Dust installation D210-00-211-IS_Issue_2__BEBG10D-P_BExBG15D-P_.pdf
Ex d & Ex tD Gas & Dust SIL2 installation manual D197-00-112-IS_Issue_B_-_DC-065_Issue_D_BExBG15D-P-SIL.pdf
IECEx certificate IECEx_KEM_10.0002X_Issue_4_BExBG_Ex_d.pdf
ATEX certificate KEMA_00ATEX2006X_Issue_6_BExBG_Ex_d.pdf
INMETRO certificate E2S_CoC_IEx_10.0010X_R3_17062019.pdf
Russian Ex certificate __RU_C_GB.71.B.00109.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00195.278.pdf
Hong Kong Fire Dept. cert. HK_FSD_BEx.pdf
Declaration of Conformity DC-004_Issue_J_BExBG.pdf
Declaration of Conformity SIL2 DC-065_Issue_C_BExBG_SIL2.pdf
SIL2 Certificate T727-008_SIL2_BExBG.pdf
SIL1 Certificate T900-123_Beacons_SIL1.pdf
2D drawing (PDF) SK0118_Issue_C.pdf
2D drawing (DWG) SK0118_Issue_C.dwg
3D drawing (IGS) SK0118-3D_Issue_B.IGS
3D drawing (STEP) SK0118-3D_Issue_B.STEP
Pipe Mount Drawing (PDF) D217-05-201_Issue_C_BExBG.pdf

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Automatic synchronisation on multi-beacon system.
  • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
  • Xenon tubes mechanically secured against shock & vibration
  • Glass lens & Stainless Steel guard
  • Very large termination area.
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 380 candela effective light intensity.
  • UV stable PC, field replaceable, colour lens filter.

Specification

Energy: 10 Joules (10Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 1,000,000 cd – calculated from energy (J)
Eff. Intensity cd: 500 cd – calculated from energy (J)
Peak Candela: 87,590 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 380 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Ingress protection: BG10D : IP66/67 BG10E : IP66
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: RAL3000 Red (others available on request)
Cable entries: Dual M20 ISO (one stopping plug included)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Tube life : Emissions are reduced to 70% after 5 million flashes
Weight: DC: 2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs
*All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Current:
12V dc 10-14V dc 1.45A
24V dc 20-28V dc 660mA
48V dc 42-54V dc 340mA
115V ac 50Hz/60Hz +/-10% 250mA
230V ac 50Hz/60Hz +/-10% 110mA

Part Codes

Version: Part code: Description:
Product type: BExBG10 Explosion proof 10J Xenon Strobe Beacon
Type: DP Ex d, UV stable PC Colour Lens
Voltage: DC012
DC024
DC048
AC115
AC230
12V dc
24V dc
48V dc
115V ac
240V ac
Cable Entry Type:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/guard matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1
S1
Default – IECEx, ATEX, Ex EAC & INMETRO – SIL1
IECEx, ATEX, Ex EAC & INMETRO – SIL2: 24Vdc only
Enclosure colour: [x] R
S
Red RAL3000
Special – contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
Accessories: SP65-0001-A2
SP65-0001-A4
SP65-0003-A2
SP65-0003-A4
Pole Mount Bracket Kit 2" St/St A2 (304)
Pole Mount Bracket Kit 2" St/St A4 (316)
Sunshade – St/St A2 (304)
Sunshade – St/St A4 (316)

Approvals

  • IECEx KEM 10.0002X
  • ATEX KEMA 00ATEX2006X
  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109
  • SIL 1 and SIL 2 compliant to IEC 61508 (2010)
  • INMETRO certificate: 10-IEx-0010

Assemblies

Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.

Coding

  • II 2G Ex d IIC T4 Gb Ta. -50°C to +50°C
  • II 2G Ex d IIC T3 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T120°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T135°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T150°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor

Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93
