BExH120 'Belltronic' Explosion Proof Bell 1-22-080

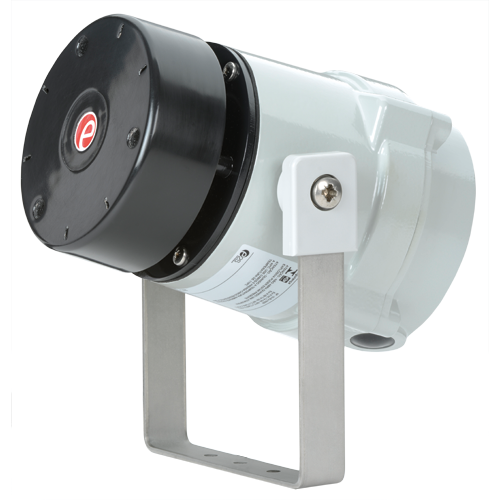

Product image
Product Image
The flameproof BExH120 Belltronic Signalling Bell is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. . The BExH120 authentically reproduces the traditional sound of a electro-mechanical bell whilst providing a significantly higher level of performance and reliability.
Request a quote for this product
Type
Voltage
Cable entries
Stopping plug/adaptor material
Bracket material
Product version
Enclosure colour
Part Number:
BExH120
Request Price or enquire about this product
Enquire about
'Belltronic' Explosion Proof Bell

Description

The digitally stored bell recording is output via a class D amplifier achieving sound levels exceeding the performance of a mechanical bell whilst offering a continuously rated signal. The radial horn design not only physically emulates the traditional bell it also replicates the distribution of the audible signal.

Downloads

Datasheet Datasheet.pdf
Installation Manual D210-01-031-IS_Issue_1_BExH120.pdf
Installation Manual - Russian D210-00-031-IS-RUS_Issue_4_BExH120.pdf
INMETRO Installation Manual IS2491-P-IEx_Issue_B.pdf
IECEx certificate IECEx_KEM_10.0003X_Issue_4_BExS__BExL.pdf
ATEX certificate KEMA_99ATEX6312X_Issue_6_BExS__BExL.pdf
UKCA Certificate UL22UKEX2638X_Rev_0_BExS__BExL.pdf
INMETRO certificate IEx10.0009X_R4_BExS_BExL.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01252_21.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Maritime register 19.00195.278.pdf
CCOE PESO CCOE_P495851-1_BExL_H_T.pdf
ECAS Ex Approval ECAS_21-07-16788-E21-07-035370-NB0007_BExS-L.pdf
Declaration of Conformity DC-001_Issue_P_BExS__BExL.pdf
Declaration of Conformity UKCA DC-104_Issue_A_BExS__BExL_UKCA.pdf
2D drawing (PDF) D210-05-021_Issue_2.pdf
2D drawing (DWG) D210-05-021_Issue_2.dwg
3D drawing (STEP) D210-05-021-3D_Issue_A.STEP
Wiring Schematic DC voltage D210-06-031_Issue_1_BExH120D_DC.pdf
Wiring Schematic AC voltage D210-06-035_Issue_1_BExH120D_AC.pdf
Nameplate Drawing D210-09-031_Issue_1_BExH120D.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing D217-05-004_Issue_1__BExS110_120R_.pdf
Hi-res product image 1 (TIFF) 1-22-080_BExH120D-R.tif
Hi-res product image 2 (TIFF) 1-22-080_BExH120D-R-R.tif

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure.
  • Ingress protection IP66/67
  • Stainless steel fixings
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Reverse polarity diode fitted.
  • Digitally stored mechanical bell sound.
  • Continuously rated.
  • Maintenance free.
  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.

Specification

Nominal output: 106dB(A) @ 1m +/- 3dB [97dB(A) @ 10ft/3m]
Volume control: Yes
Voltages DC: 24vdc
Voltages AC: 115vac; 230vac
Stage switching: Negative
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: Red
Grey
Special – available on request
BExH120 horn: High impact UL94 V0 & 5VA FR ABS
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight : DC: 3.20kg/7.04Ibs AC: 3.40kg/7.48Ibs

Current Consumption

Voltage: Current:
24V dc 400mA
115V ac 50/60Hz 130mA
230V ac 50/60Hz 65mA

Part Codes

Part Code: Identifier: Description:
Product type: BExH120 Explosion proof Belltronic
Type: DR Ex d, Radial omni-directional horn
Voltage: DC024
AC115
AC230
24V dc
115V ac
240V ac
Cable entries:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 Default – IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: [x] R
G
S
Red
Grey
Special – contact E2S
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • IECEx Certificate: KEM 10.0003X
  • ATEX Certificate: KEMA 99ATEX6312X
  • TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
  • INMETRO certificate: 10-IEx-0009
  • UKCA certificate: UL22UKEX2638X

Coding

  • II 2G Ex db IIB T4 Ta -50° to +70°C
  • II 2G Ex db IIC T4 Ta -50° to +55°C
  • II 2D Ex tb IIIC T100°C Db Ta -50°C to +55°C
  • II 2D Ex tb IIIC T115°C Db Ta -50°C to +70°C

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1 /system/1/assets/files/000/000/411/411/491442314/original/TF046.WAV Industrial Hooter T 3 T 5
T 2 /system/1/assets/files/000/000/414/414/146644246/original/TF047.WAV High Frequency Mechanical Siren T 1 T 5
T 3 /system/1/assets/files/000/000/416/416/0c52c2259/original/TF048.WAV Medium Frequency Mechanical Siren T 1 T 5
T 4 /system/1/assets/files/000/000/413/413/c47bf00c7/original/TF049.WAV Electro Mechanical Buzzer T 2 T 5
T 5 /system/1/assets/files/000/000/423/423/854c33e83/original/TF050.WAV Mechanical Bell T 1 T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
