BExL15 Explosion Proof PA Loudspeakers 15W 1-22-120

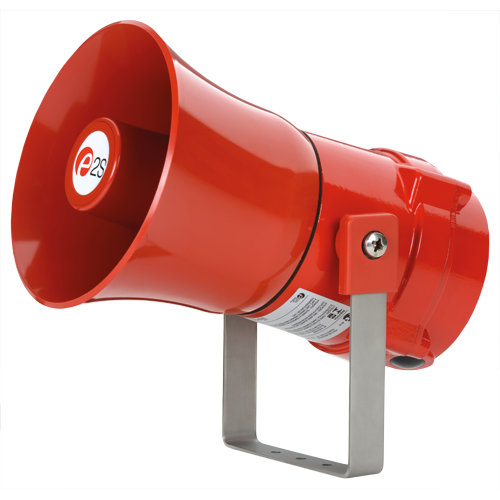

Product image
The flameproof BExL15 PA loudspeakers are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
Request a quote for this product
Type
Input
Cable entries
Stopping plug/adaptor material
Bracket material
Product version
Enclosure colour
Part Number:
BExL15
Request Price or enquire about this product
Enquire about
Explosion Proof PA Loudspeakers 15W

Description

113dB sound level output – 15W rated.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with chromate and powder coat finish.
An independent test report is available on request, or online, detailing the leading performance of the BEx loudspeaker range.

Downloads

Datasheet Datasheet.pdf
Installation Manual D210-01-101-IS_Issue_1_BExL15__BExL25.pdf
Installation Manual - Russian D210-00-101-IS-RUS_Issue_5_BExL15D_BExL25D.pdf
INMETRO Installation Manual IS2423-P-IEx_Issue_B.pdf
IECEx certificate IECEx_KEM_10.0003X_Issue_4_BExS__BExL.pdf
ATEX certificate KEMA_99ATEX6312_Issue_5_BExS__BExL_Ex_d.pdf
UKCA Certificate UL22UKEX2638X_Rev_0_BExS__BExL.pdf
INMETRO certificate IEx10.0009X_R4_BExS_BExL.pdf
Ex EAC TR CU 012/2011 Certificate RU_-GB.65..01252_21.pdf
RTN permit RTN_permit_PPC_00-29227.pdf
Russian Fire certificate Russian_Fire_Certificate_-GB.25..03286.PDF
Russian Maritime register 19.00195.278.pdf
CCOE PESO CCOE_P495851-1_BExL_H_T.pdf
ECAS Ex Approval ECAS_23-07-78391_E23-07-080282_NB0007_BExS-L.pdf
Hong Kong Fire Dept. cert. HK_FSD_BEx.pdf
Declaration of Conformity DC-001_Issue_P_BExS__BExL.pdf
Declaration of Conformity UKCA DC-104_Issue_A_BExS__BExL_UKCA.pdf
Polar plots & test report R2081_BExL15-15W.pdf
EASE files BExL15-EASE.zip
2D drawing (PDF) D210-05-001_Issue_2.pdf
2D drawing (DWG) D210-05-001_Issue_2.dwg
3D drawing (STEP) D210-05-001-3D_Issue_A.STEP
Wiring Schematic D210-06-101_Issue_1_BExL15_L25D.pdf
Nameplate Drawing D210-09-101_Issue_1_BExL15_L25D.pdf
Equipment Tag Drawing D254-00-101_Issue_1.pdf
Duty Label Drawing D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing D217-05-001_Issue_2__BExS110_L15F_.pdf
Hi-res product image 1 (TIFF) 1-22-120_BExL15D.tif

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure.
  • Ingress protection IP66/67
  • Stainless steel fixings
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • 100V and 70V line versions.
  • 8 Ohm and 16 Ohm low impedance versions.
  • Multiple tappings from 15W to 1W.
  • Wide frequency response and angle of dispersion.

Specification

SPL: 102dB +/-3dB @ 1w @ 1m (Pink)
113dB +/-3dB @ 15w @ 1m (Rated)
Rated power: 15 Watts RMS
70v line tappings: 15w / 7.5w / 3w / 1w
(z=336.67 Ohms /653.33 Ohms /
1.6k Ohms / 4.9k Ohms)
100v line tappings: 15w / 7.5w / 3w / 1w
(z=666.87 Ohms /1.34k Ohms /
3.34k Ohms / 10k Ohms)
Low impedance: 8 Ohm or 16 Ohm
Dispersion: 120° @ 1kHz & 32° @ 4kHz
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer )
470µF Capacitor (Low impedance)
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: Red
Grey
Special – available on request
BExL15 flare: High impact UL94 V0 & 5VA FR ABS
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
MTBF V100/V070: 630.69 years / 5,524,861 hours – MIL 217
MTBF R008/R016: 830.22 years / 7,272,727 hours – MIL 217
Weight: 70/100V line: 3.45kg/7.59Ibs
Low imp.: 3.10kg/6.82Ibs

Part Codes

Part Code: Identifier: Description:
Product type: BExL15 Explosion proof PA Loudspeaker
Type: DF Ex d, Flare re-entrant horn
Input: V100
V070
R016
R008
100V Line Transformer
70V Line Transformer
16 Ohm Low Impedance
8 Ohm Low Impedance
Cable entries:[e] A
B
C
D
E
F
G
2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor
Stopping plug/
adaptor material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket matl & tag: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag
Product version: [v] A1 Default – IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: [x] R
G
S
Red
Grey
Special – contact E2S
Accessories: SP65-0001-A4
SP65-0003-A4
Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

Approvals

  • IECEx Certificate: KEM 10.0003X
  • ATEX Certificate: KEMA 99ATEX6312X
  • TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
  • INMETRO certificate: 10-IEx-0009
  • UKCA certificate: UL22UKEX2638X

Coding

  • II 2G Ex db IIB T4 Ta -50° to +70°C
  • II 2G Ex db IIC T4 Ta -50° to +55°C
  • II 2D Ex tb IIIC T100°C Db Ta -50°C to +55°C
  • II 2D Ex tb IIIC T115°C Db Ta -50°C to +70°C
